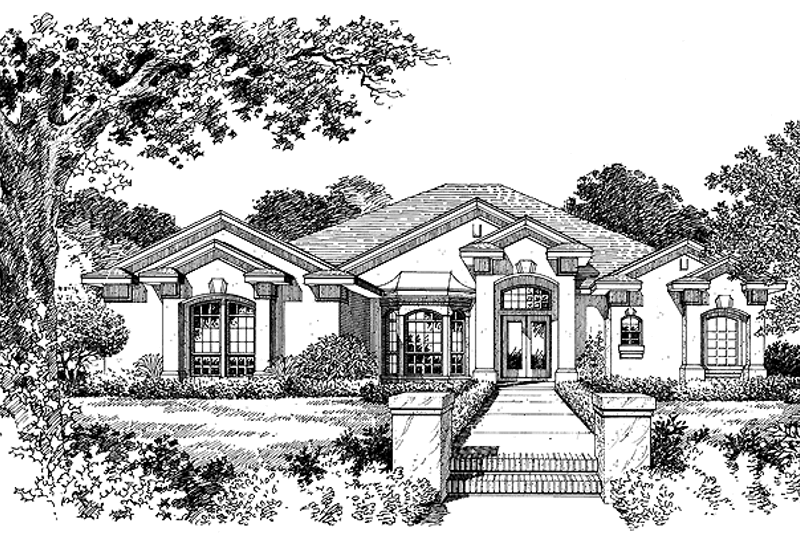

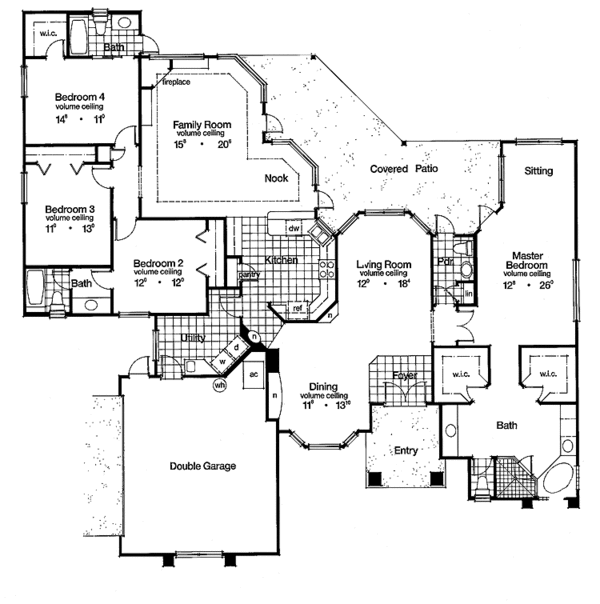

A towering entry welcomes all into the foyer of this soaring contemporary design with a multitude of elegant volume ceilings. The open dining room and living room each have sunny bay windows and built-in features. The spacious family room has a charming corner fireplace, plenty of windows and a breakfast nook easily in reach of the roomy kitchen. Three family bedrooms reside just off the family room. The master suite features a sitting area, twin closets and an oversized bath designed for relaxing.
64 sq/ft width 11' x depth 5' 10"
47 sq/ft width 9' x depth 5' 4"
Bedroom 4 Closet:
29 sq/ft width 5' 4" x depth 5' 6"
449 sq/ft width 19' 10" x depth 22' 8"
182 sq/ft width 14' x depth 13'
207 sq/ft width 17' 4" x depth 12'
49 sq/ft width 7' x depth 7'
117 sq/ft width 10' 8" x depth 11'
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|5 Copy and PDF Set
|5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|CAD Single Build
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|One electronic set for bidding purposes only. Not a legal building set for construction.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
