Full Specs & Features
Depth : 47' 8"
Height : 30' 6"
Width : 59' 8"
Basement : 1174 sq/ft
Garage : 576 sq/ft
Main Floor : 1279 sq/ft
Porch : 115 sq/ft
Upper Floor : 1358 sq/ft
Ceiling Details : Coffered ceiling in Great Room, tray ceiling in Master Bedroom
Main Ceiling : 9'
Primary Pitch : 7:12
Roof Framing : Combination
Roof Type : Asphalt Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Siding
Framing : 2 x 6
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Front Entry Garage
Covered Front Porch
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

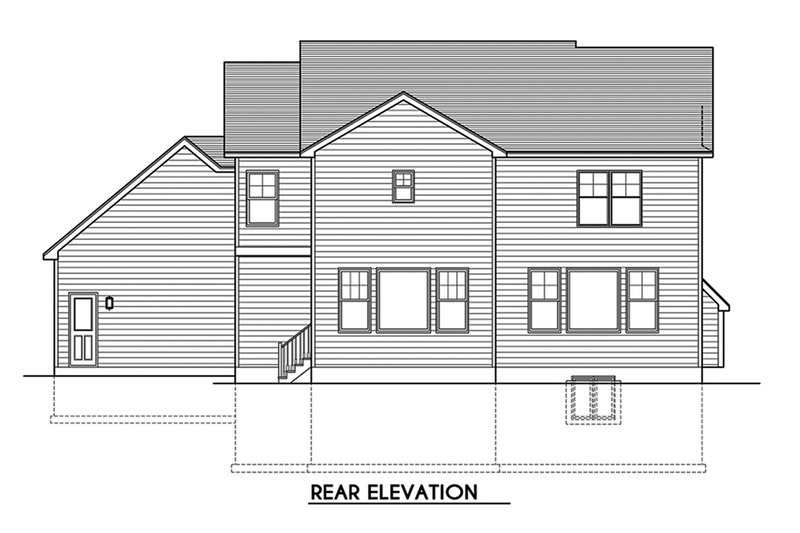

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

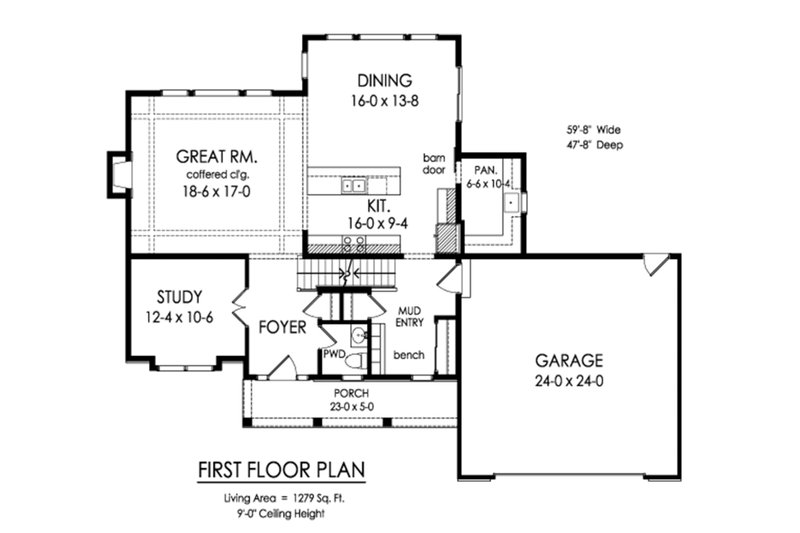

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
- CAD Plans are in AutoDesk Architecture.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
