PLAN 429-439
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description

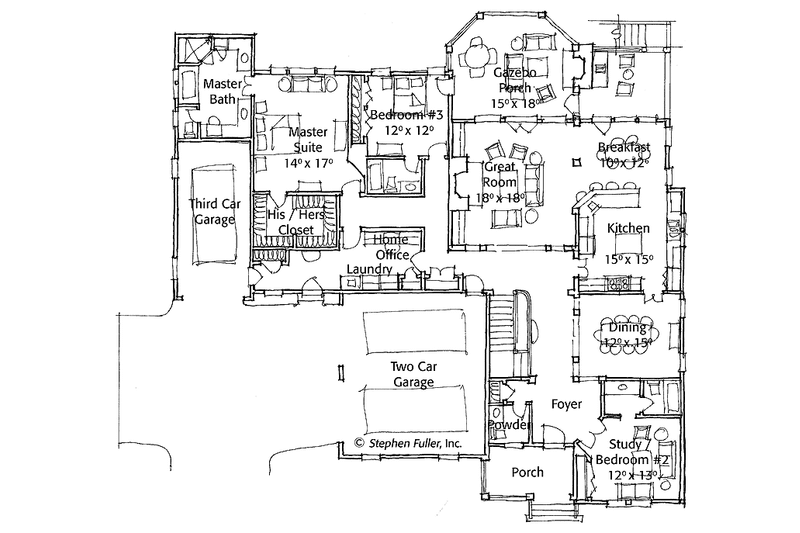

Floor Plans
Full Specs & Features
Dimension
Depth : 70'
Width : 75' 6"
Area
First Floor: 2671 sq/ft height 10'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle
Framing : Wood - 2x4
Rooms
Bedroom 2:
156 sq/ft width 12' x depth 13'
Bedroom 3:
144 sq/ft width 12' x depth 12'
Breakfast Room:
125 sq/ft width 10' x depth 12' 6"
Dining Room:
180 sq/ft width 12' x depth 15'
Gathering Room:
324 sq/ft width 18' x depth 18'
Kitchen:
240 sq/ft width 15' x depth 16'
Master Bedroom:
238 sq/ft width 14' x depth 17'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$900.00
$1000.00
$1250.00
$1250.00
$800.00
Foundation
$0.00
Framing
$0.00
Additional Options
$65.00
$100.00
$39.00
$100.00
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
