Full Specs & Features
Depth : 40'
Height : 31'
Width : 62'
Basement Unfinished: 1252 sq/ft

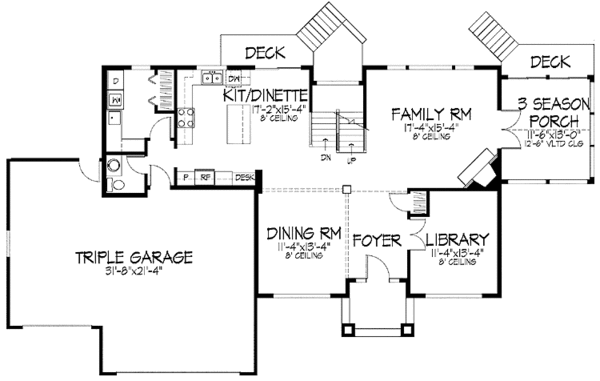

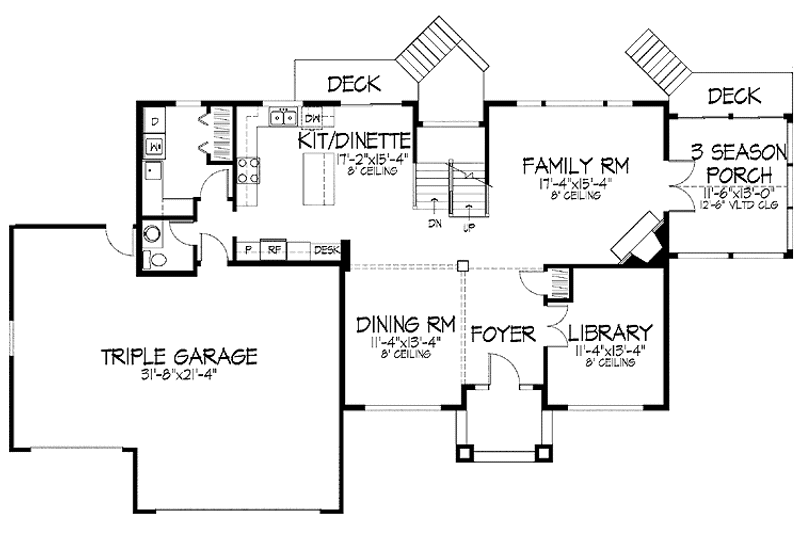

First Floor: 1420 sq/ft

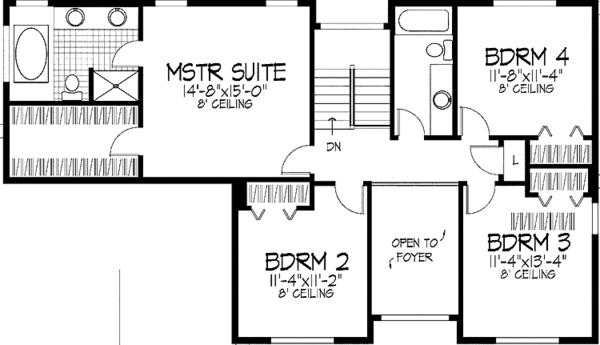

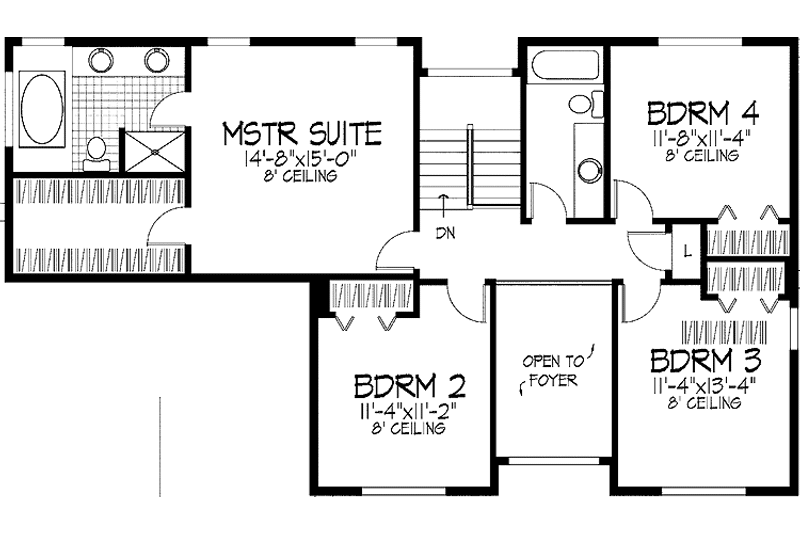

Second Floor: 1252 sq/ft
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Formal Dining Room
Upstairs Master Bedrooms
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
