PLAN #56-587

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

This 2,697 square foot Craftsman home features a split 3-car
 garage, a spacious front porch and a brick, stone and siding exterior.
 The entry unfolds to a columned dining room and a home office. The large
 gourmet kitchen has an angled breakfast nook and a snack bar to provide
 additional seating and food prep space. Cabinets and shelves in the
 breakfast area offer pantry storage space. The center island holds a
 cook-top. A welcoming fireplace warms the two-story family room.
 The elegant master suite, with a dramatic tray ceiling, is located on
 the main level. Closet space abounds with his and hers walk-in closets
 plus a spacious sitting/dressing area. The master bath features separate
 vanities, a luxurious spa tub and a private toilet room with an
 oversized shower.
 Upstairs, the suites are sweet! Each bedroom suite features its own
 bath, two with tubs and one with a corner shower. All suites have
 walk-in closets. The biggest surprise of the upper level is the
 expansive dual bonus areas. The possibilities are limitless as to the
 use of this delightfully unexpected space!
 Outdoor living is enjoyed to the fullest with front and back porches
 and a roomy deck. We have featured a small pool in our rendering to help
 you plan your recreational space.

Floor Plans

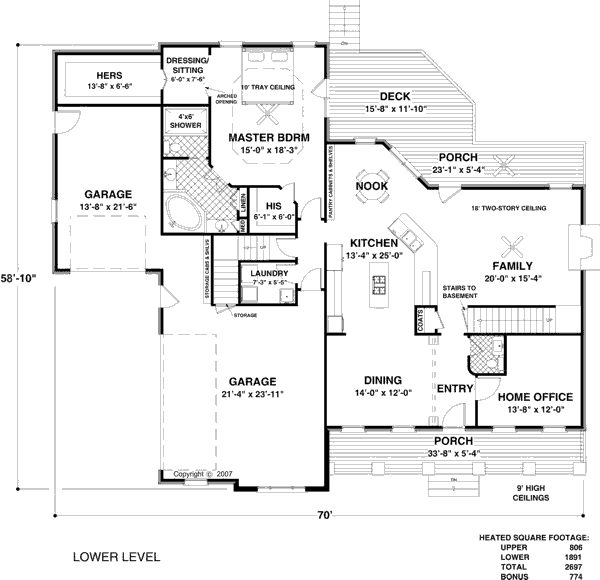

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #56-587

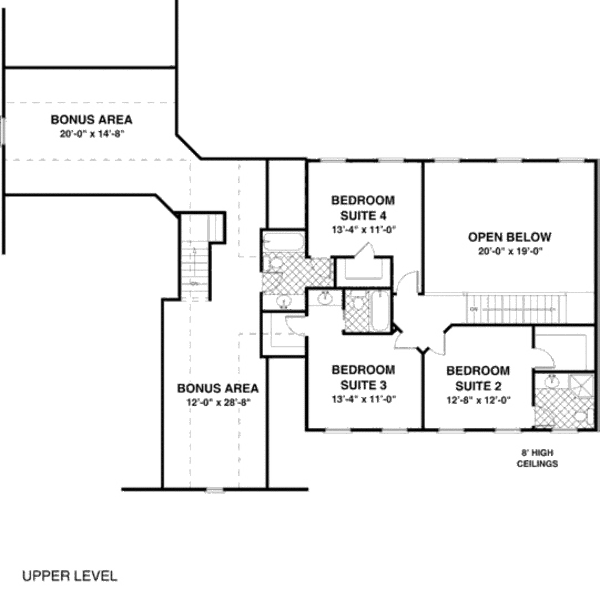

Floor Plan - Upper Floor Plan
Craftsman Floor Plan - Upper Floor Plan Plan #56-587

Full Specs & Features

Depth : 58' 10"
Height : 29'
Width : 70'
Bonus: 774 sq/ft
First Floor: 1891 sq/ft height 9'
Second Floor: 806 sq/ft height 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof Framing : stick
Primary Pitch : 7:12
Secondary Pitch : 12:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick, Stone, Siding, Shake
Framing : 2"x4"
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Breakfast Nook
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Split Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck


185 sq/ft width 15' 8" x depth 11' 10"

Dining Room:

168 sq/ft width 14' x depth 12'

Family Room:

306 sq/ft width 20' x depth 15' 4"


510 sq/ft width 21' 4" x depth 23' 11"

Garage Two:

293 sq/ft width 13' 8" x depth 21' 6"

Guest Suite 2:

152 sq/ft width 12' 8" x depth 12'

Guest Suite 3:

146 sq/ft width 13' 4" x depth 11'

Guest Suite 4:

146 sq/ft width 13' 4" x depth 11'

Home Office:

164 sq/ft width 13' 8" x depth 12'


333 sq/ft width 13' 4" x depth 25'

Laundry Room:

39 sq/ft width 7' 3" x depth 5' 5"

Master Bedroom:

273 sq/ft width 15' x depth 18' 3"

Master Closet - Hers:

88 sq/ft width 13' 8" x depth 6' 6"

Master Closet - His:

36 sq/ft width 6' 1" x depth 6'

Porch - Front:

179 sq/ft width 33' 8" x depth 5' 4"

Porch - Rear:

123 sq/ft width 23' 1" x depth 5' 4"

What's Included In This Plan Set

  • Artist Rendering
  • Exterior Elevations: All four sides
  • Floor Plans(s)
  • Foundation Plan
  • Cross Sections
  • Cabinet Elevations
  • Roof Plan
  • 3D Overview: most but not all plans by this designer are offered with a 3D overview. If this is important to you please contact one of our project advisors for verification.
  • Electrical Drawings: Most plans Detail Sheets: Includes general specifications, not specific to individual plans.
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x4:
Wood 2x4
Wood 2x6:
Wood 2x6

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
