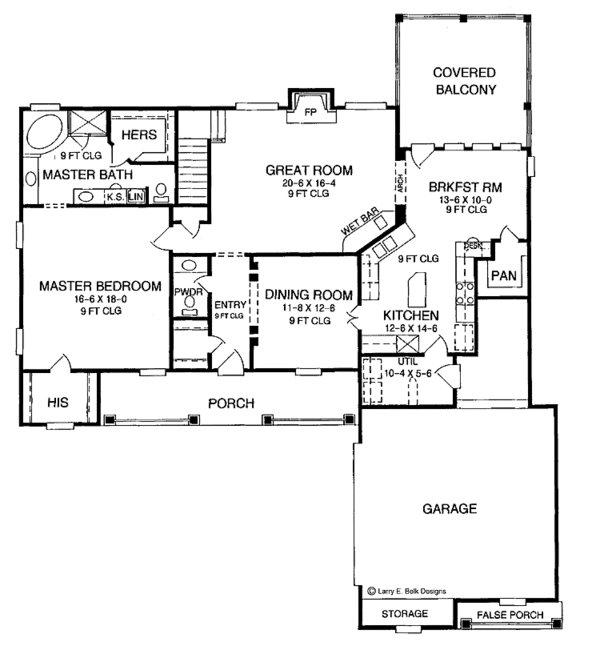

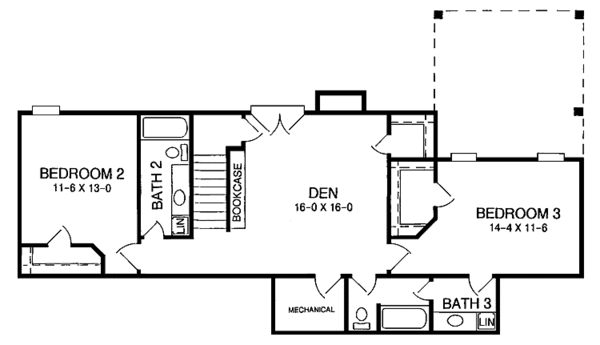

A lovely traditional facade complements this up-to-date ranch-style plan. Inside, an elegant arch connects the kitchen and breakfast room to the main living area beyond. The great room features a cozy fireplace and the dining room is easily served from the kitchen. The first-floor master suite features a roomy walk-in closet, double vanities and a separate shower and whirlpool tub. Downstairs, Bedrooms 2 and 3 share a bath and are located on either side of a casual den.
149 sq/ft width 11' 6" x depth 13'
164 sq/ft width 14' 4" x depth 11' 6"
135 sq/ft width 13' 6" x depth 10'
Den/Office or Bedroom 1:
256 sq/ft width 16' x depth 16'
145 sq/ft width 11' 8" x depth 12' 6"
334 sq/ft width 20' 6" x depth 16' 4"
181 sq/ft width 12' 6" x depth 14' 6"
297 sq/ft width 16' 6" x depth 18'
56 sq/ft width 10' 4" x depth 5' 6"
All plans are drawn at ¼” scale or larger and include :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
