PLAN 417-544

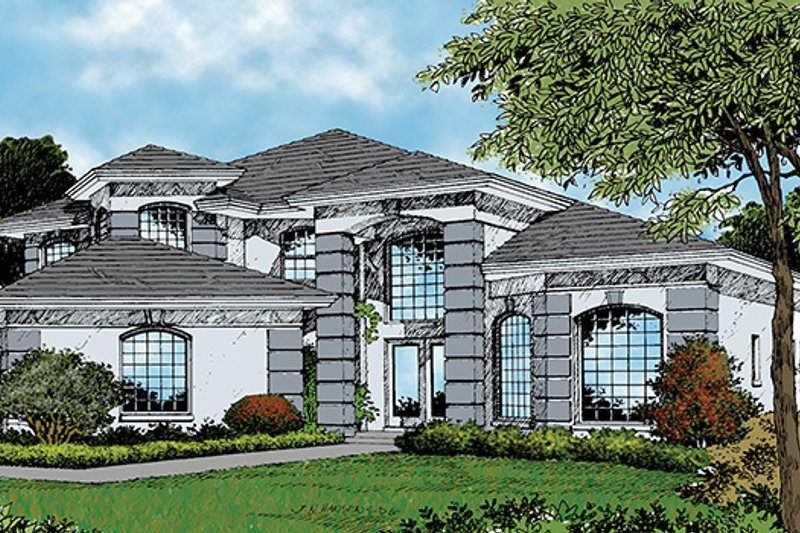

Home Plan - Mediterranean Exterior - Front Elevation Plan #417-544
Home Plan - Mediterranean Exterior - Front Elevation Plan #417-544
Home Plan - Mediterranean Exterior - Front Elevation Plan #417-544
Home Plan - Mediterranean Exterior - Rear Elevation Plan #417-544

Key Specs


Plan Sq Ft

2800
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?
Additional Construction Sets$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets$30.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$1150.00
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-544

Key Specs


Plan Sq Ft

2800
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Only 50 feet wide, this fabulous design will fit anywhere! From the moment you enter from the foyer, this floor plan explodes in every direction with huge living spaces. Flanking the foyer are the living and dining rooms. Ahead, the visual impact of the staircase is breathtaking. Two-story ceilings adorn the huge family room with double-stacked glass walls. Sunlight floods the breakfast nook, and the kitchen is a gourmet's dream, complete with cooking island and loads of overhead cabinets. Tray ceilings grace the master suite, which also offers a well-designed private bath. Here, a large soaking tub, doorless shower, private toilet chamber and huge walk-in closet are sure to please. Upstairs, two oversized bedrooms and a loft space--perfect for the home computer--share a full bath.

Full Specs & Features


Dimension
Depth : 74'
Height : 29'
Width : 50'
Area

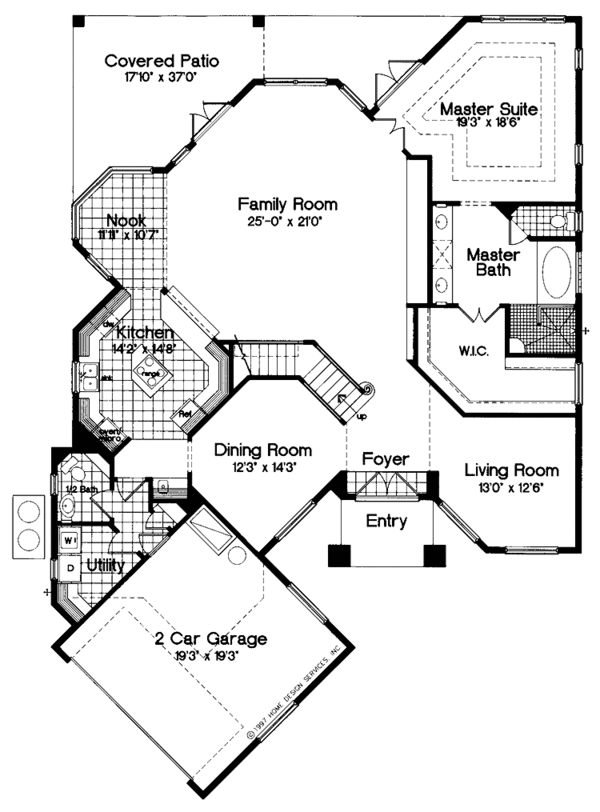

First Floor: 2051 sq/ft height 10'

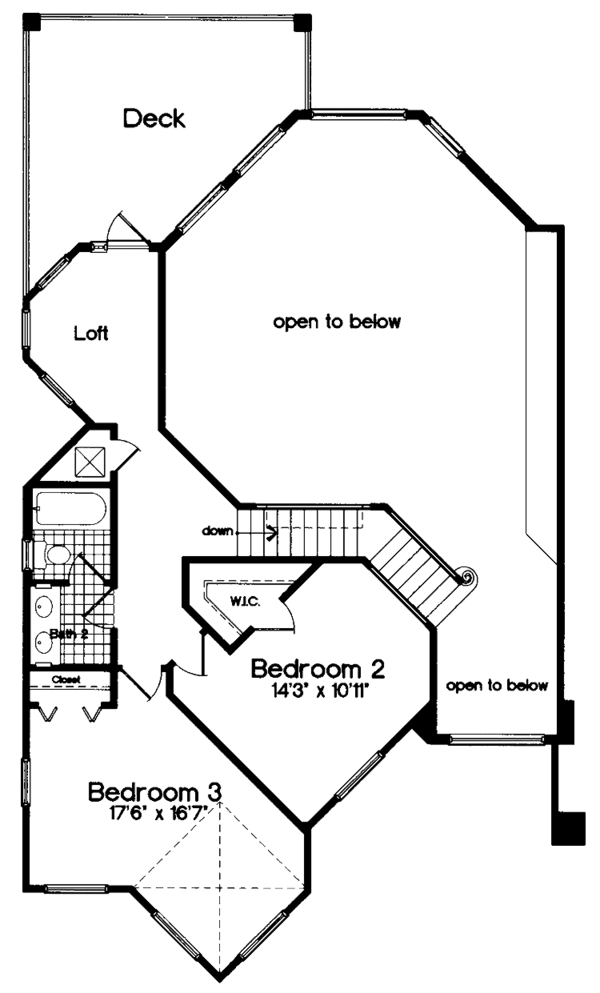

Second Floor: 749 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Loft
Main Floor Laundry
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Deck
Rooms

Bathroom 2:

32 sq/ft width 5' x depth 6' 6"

Bathroom 3:

55 sq/ft width 5' x depth 11' 2"

Bedroom 2:

155 sq/ft width 14' 3" x depth 10' 11"

Bedroom 3:

290 sq/ft width 17' 6" x depth 16' 7"

Breakfast Room:

91 sq/ft width 8' 4" x depth 11'

Dining Room:

174 sq/ft width 12' 3" x depth 14' 3"

Foyer:

74 sq/ft width 7' 8" x depth 9' 8"

Garage:

399 sq/ft width 19' 9" x depth 20' 3"

Gathering Room:

525 sq/ft width 25' x depth 21'

Kitchen:

200 sq/ft width 14' 4" x depth 14'

Living Room:

162 sq/ft width 13' x depth 12' 6"

Master Bathroom:

127 sq/ft width 13' 8" x depth 9' 4"

Master Bedroom:

356 sq/ft width 19' 3" x depth 18' 6"

Master Closet:

168 sq/ft width 10' 8" x depth 15' 10"

Porch - Rear:

530 sq/ft width 37' x depth 14' 4"

Utility Room:

74 sq/ft width 8' x depth 9' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set :
$1150.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1350.00
5 printed plan sets mailed to you.
5 Copy and PDF Set :
$1500.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build :
$2300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set :
$700.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$30.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
