PLAN 51-641
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Dimension
Depth : 56'
Height : 29'
Width : 74'
Height : 29'
Width : 74'
Area
Basement Unfinished: 1606 sq/ft height 9'
Bonus: 144 sq/ft
First Floor: 1636 sq/ft height 9'
Garage: 964 sq/ft
Second Floor: 1164 sq/ft height 8'
Bonus: 144 sq/ft
First Floor: 1636 sq/ft height 9'
Garage: 964 sq/ft
Second Floor: 1164 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Family Room Keeping Room
Main Floor Laundry
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Rooms
Bedroom 2:
138 sq/ft width 11' 6" x depth 12'
Bedroom 3:
136 sq/ft width 10' 6" x depth 13'
Bedroom 4:
134 sq/ft width 10' 4" x depth 13'
Bonus Room - Finished:
144 sq/ft width 12' x depth 12'
Den:
143 sq/ft width 11' x depth 13'
Dinette:
156 sq/ft width 12' x depth 13'
Dining Room:
132 sq/ft width 12' x depth 11'
Family Room:
380 sq/ft width 20' x depth 19'
Foyer:
91 sq/ft width 8' 4" x depth 11'
Garage:
952 sq/ft width 28' x depth 34'
Kitchen:
170 sq/ft width 11' x depth 15' 6"
Laundry Room:
80 sq/ft width 8' x depth 10'
Living Room:
168 sq/ft width 14' x depth 12'
Master Bathroom:
182 sq/ft width 14' x depth 13'
Master Bedroom:
238 sq/ft width 14' x depth 17'
Master Walk-In Closet:
140 sq/ft width 12' x depth 11' 8"
Porch - Front:
320 sq/ft width 8' x depth 40'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

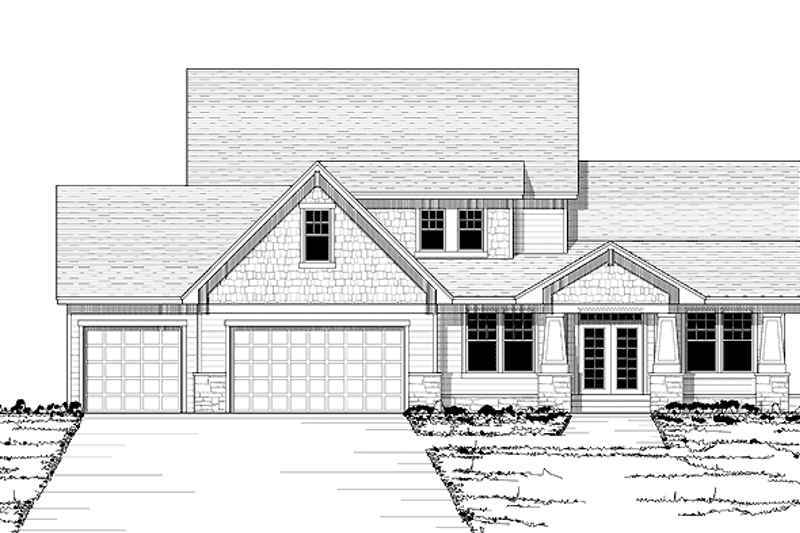

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

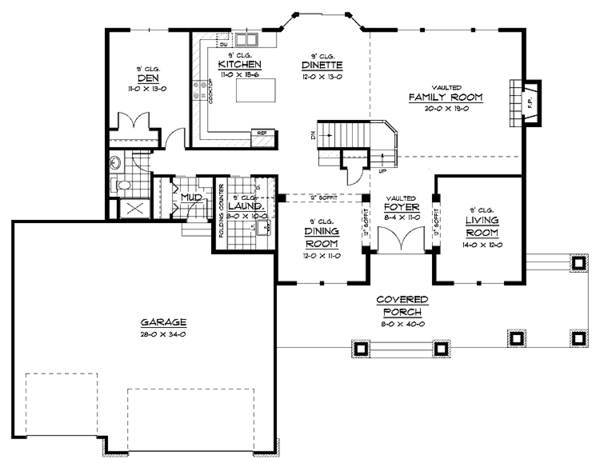

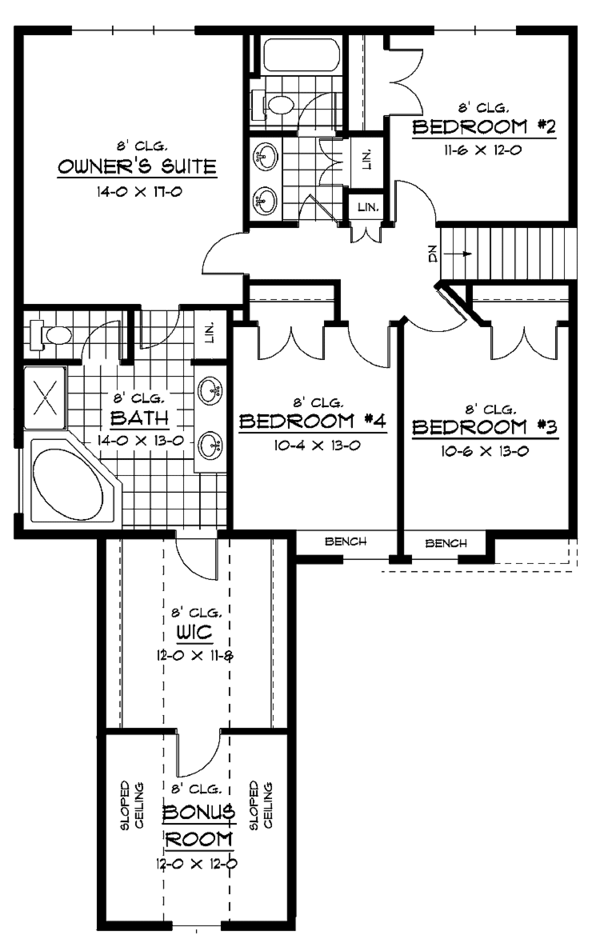

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
