Plan Description

This log design floor plan is 2813 sq ft and has 3 bedrooms and 3 bathrooms.

Floor Plans

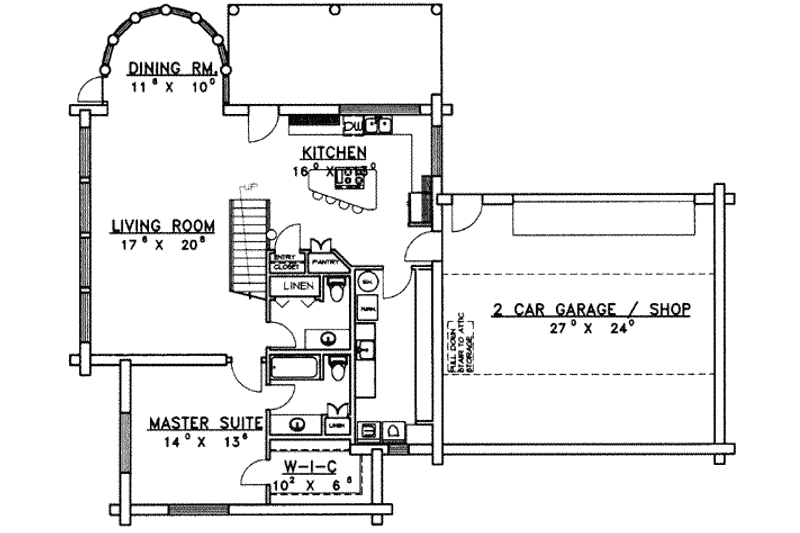

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

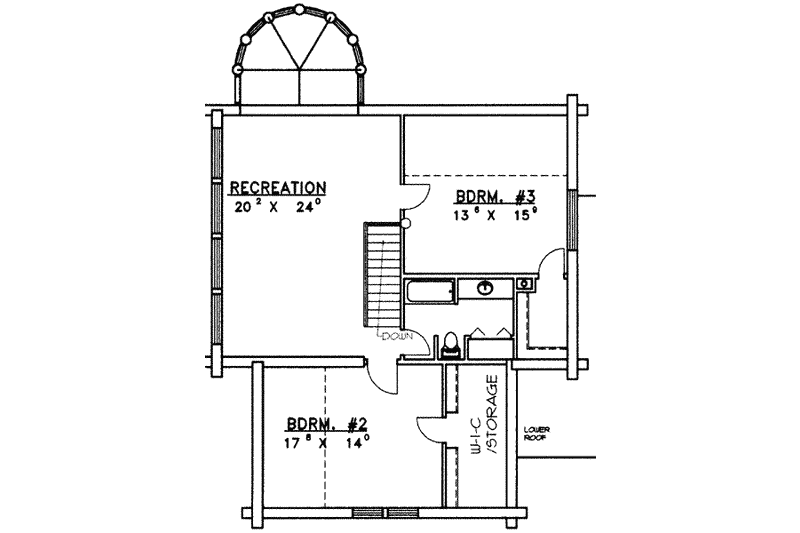

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 51'

Height : 23' 3"

Width : 64'

Area

First Floor: 1485 sq/ft height 10'

Second Floor: 1328 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Log

Framing : Log

Bedroom Features

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Additional Room Features

Hobby Rec Room Game Room

Storage Area

Workshop

Garage Features

Rear Entry Garage

Suited For Vacation Home

Rooms

Bedroom 2:

245 sq/ft width 17' 6" x depth 14'

Bedroom 3:

204 sq/ft width 13' 6" x depth 15' 2"

Dining Room:

110 sq/ft width 11' x depth 10'

Garage:

648 sq/ft width 27' x depth 24'

Living Room:

361 sq/ft width 17' 6" x depth 20' 8"

Master Suite:

189 sq/ft width 14' x depth 13' 6"

Recreation Room:

484 sq/ft width 20' 2" x depth 24'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
