PLAN 42-504

Traditional Exterior - Front Elevation Plan #42-504

Select Plan Set Options

What's included?
Additional Construction Sets
$54.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Subtotal
NOW $805.50
You save $89.50
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 42-504

Key Specs


2829
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

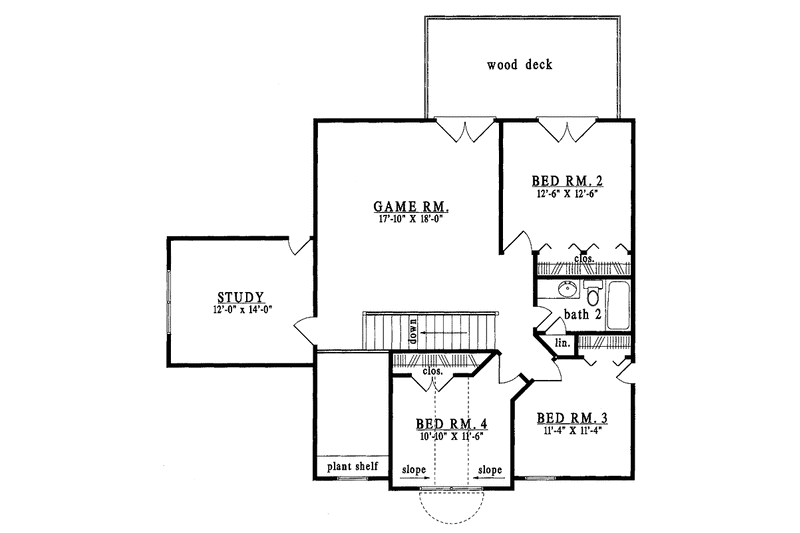

Striking fenestration, and tasteful brick ornamentation form a feast for the eyes on this exterior. On the interior, a series of French windows continues the fashion statement, providing indoor-outdoor transitions in style and ambiance. A wooden deck upstairs reveals a double treat, with access from the game room and the secondary bedroom. Bedroom #4 is not to be outdone, with a gorgeous bow window of its own. A plant shelf and study included up here are thoughtful touches.

Full Specs & Features


Dimension
Depth : 60'
Height : 28'
Width : 59' 6"
Area

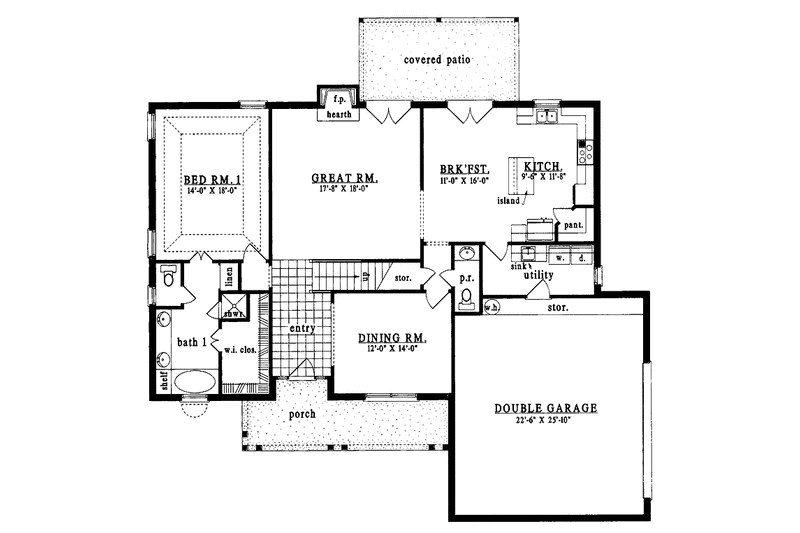

First Floor: 1686 sq/ft
Second Floor: 1143 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Outdoor Fireplace
Rooms

3rd BR Closet:

12 sq/ft width 2' x depth 6'

Bedroom 2:

156 sq/ft width 12' 6" x depth 12' 6"

Bedroom 2 Closet:

18 sq/ft width 2' x depth 9'

Bedroom 3:

128 sq/ft width 11' 4" x depth 11' 4"

Bedroom 3 Closet:

18 sq/ft width 2' x depth 9'

Bedroom 4:

124 sq/ft width 10' 10" x depth 11' 6"

Bedroom 4 Closet:

18 sq/ft width 2' x depth 9'

Breakfast Room:

176 sq/ft width 11' x depth 16'

Dining Room:

168 sq/ft width 12' x depth 14'

Foyer:

91 sq/ft width 7' x depth 13'

Garage:

581 sq/ft width 25' 10" x depth 22' 6"

Garage Storage:

38 sq/ft width 2' x depth 19'

Gathering Room:

318 sq/ft width 17' 8" x depth 18'

Hall Bathroom:

50 sq/ft width 5' x depth 10'

Kitchen:

110 sq/ft width 9' 6" x depth 11' 8"

Master Bathroom:

120 sq/ft width 8' x depth 15'

Master Bedroom:

252 sq/ft width 14' x depth 18'

Master Closet:

72 sq/ft width 6' x depth 12'

Porch - Front:

144 sq/ft width 6' x depth 24'

Porch - Rear:

200 sq/ft width 10' x depth 20'

Study:

168 sq/ft width 12' x depth 14'

Utility Room:

72 sq/ft width 6' x depth 12'
