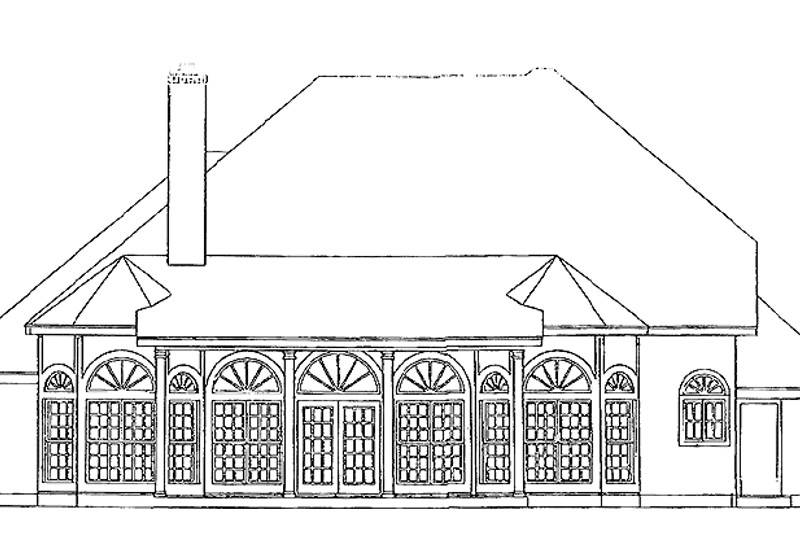

Home Plan - Mediterranean Exterior - Rear Elevation Plan #472-90

Home Plan - Mediterranean Floor Plan - Main Floor Plan #472-90

Home Plan - Mediterranean Floor Plan - Upper Floor Plan #472-90

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

2862
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$255.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1445.00 NOW $1228.25

You save $216.75 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 472-90

Home > Style > Mediterranean

Key Specs

2862
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

Elegance plays across the sunburst windows, keystone lintels and two story entry of this well-appointed home. Inside, the foyer opens to the formal dining and living rooms, which feature box bay windows viewing the front yard. An island workstation, snack bar and walk-in pantry in the kitchen will impress the family cook. A full view of the backyard and covered deck greets the eye when entering the family room. This design includes two fireplaces, one in the family room and the second in the master suite. The master suite also enjoys a bay windowed sitting area, two walk-in closets and a luxurious bath with a window seat, spa tub, separate shower. Three family bedrooms and two baths reside on the second level.

As per the Texas Board of Architectural Examiners, Reproducible and CAD versions of this plan are not permitted for sale to persons with Texas addresses. You may order 1-sets, 5-sets, or 8-sets. Contact Zonda Customer service at 888.846.8188 with any questions.

Floor Plans

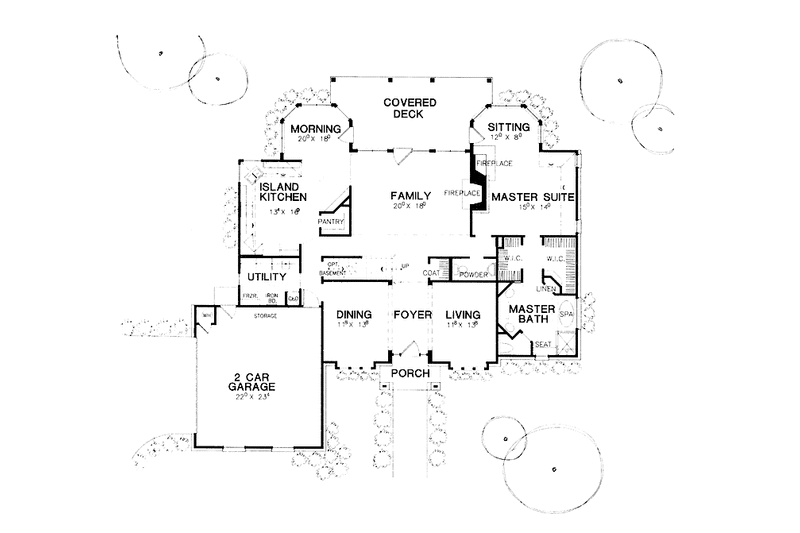

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

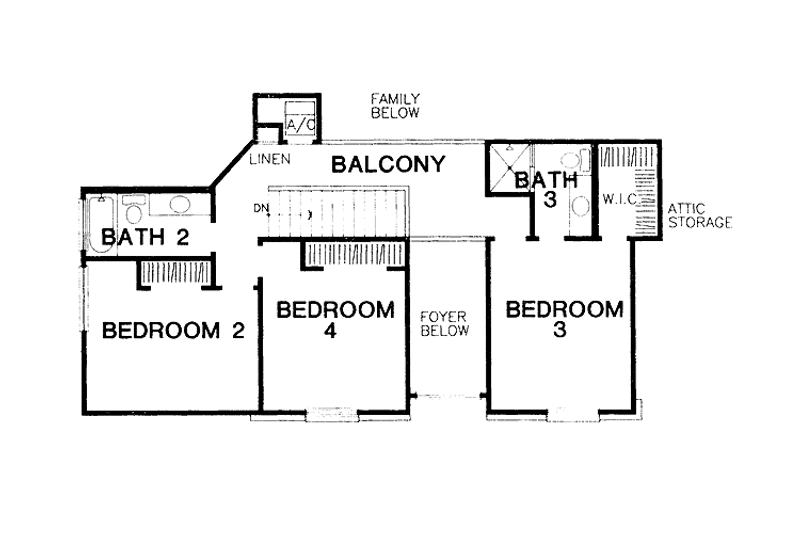

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 58' 6"

Height : 30'

Width : 64' 11"

Area

First Floor: 2056 sq/ft height 9'

Second Floor: 806 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Loft

Main Floor Laundry

Master Sitting Area

Open Floor Plan

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Deck

Rooms

3rd BR Closet:

34 sq/ft width 4' 8" x depth 7' 4"

Bedroom 2:

132 sq/ft width 13' 6" x depth 9' 10"

Bedroom 2 Closet:

11 sq/ft width 2' x depth 5' 8"

Bedroom 3:

130 sq/ft width 11' 2" x depth 11' 8"

Bedroom 3 Closet:

11 sq/ft width 2' x depth 5' 8"

Bedroom 4:

146 sq/ft width 11' x depth 13' 4"

Bedroom 4 Closet:

15 sq/ft width 2' x depth 7' 10"

Foyer:

72 sq/ft width 6' x depth 12'

Master Bathroom:

260 sq/ft width 13' x depth 20'

Master Closet:

29 sq/ft width 4' x depth 7' 4"

Porch - Front:

60 sq/ft width 6' x depth 10'

Utility Room:

78 sq/ft width 8' x depth 9' 10"

What's Included In This Plan Set

See a sample plan set

Note: Reproducible (PDF) and CAD plans are not available if building in Texas, Oklahoma, New Mexico, Louisiana, Tennessee, Arkansas, or Alabama. Architect must update and stamp all plans being sent to these states.
Plans are drawn to a typical architectural scale and include:

Foundation Plan(s): This page shows general notations and dimensions, including support columns, beam layouts and section cuts with typical details.
Floor Plan(s): Detailed plan drawn at Typical Architectural Scale, for each level. Plan shows room dimensions, wall partitions, windows, cabinets and plumbing fixtures. On a separate page(s) it will show the locations of the electrical outlets and switches.
Exterior Elevations: A 2D view of all four sides of the home. It shows and notates exterior materials, doors, windows and roof pitches.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A vertical cutaway view of the home from roof to foundation, showing outline of framing, floor system and roofline.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.

Note: framing and foundation plans may require engineering for local site, wind, and snow load conditions.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1228.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$2078.25

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace:
$106.25

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement:
$212.50

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$255.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
