Full Specs & Features
Depth : 54'
Height : 21' 6"
Width : 66'

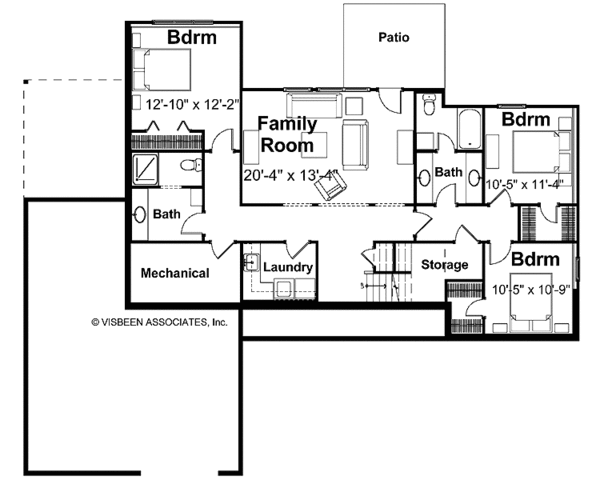

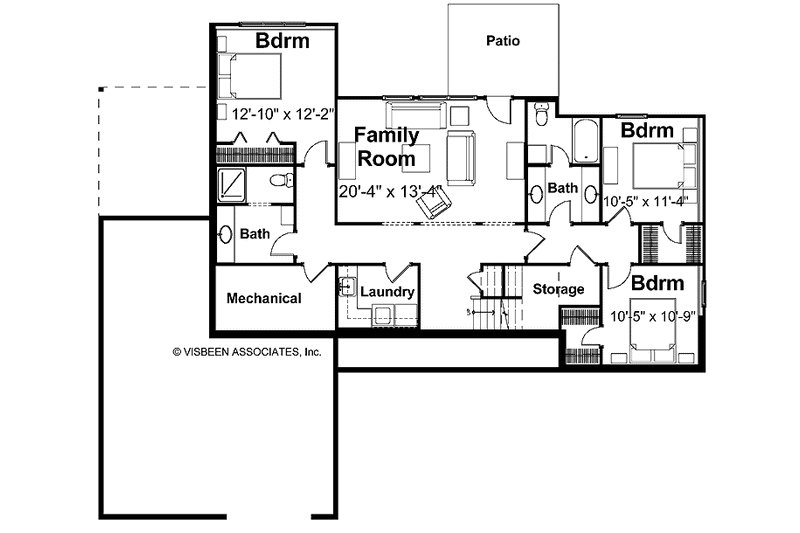

Basement Living: 1316 sq/ft height 9'

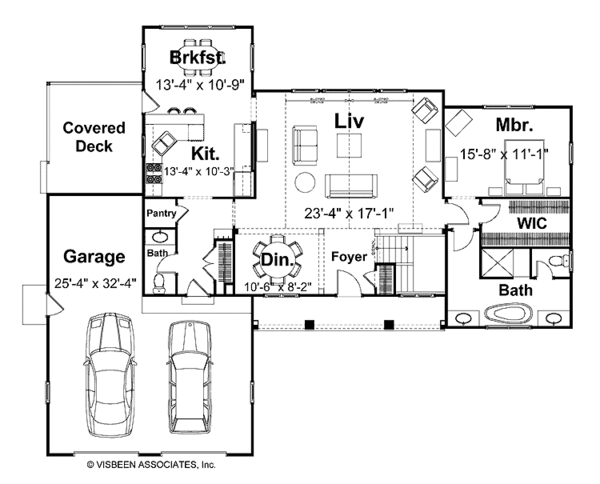

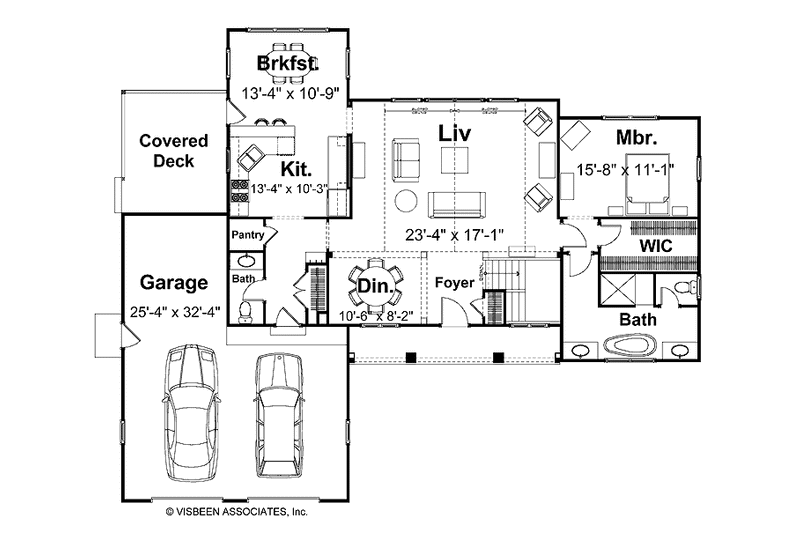

First Floor: 1547 sq/ft height 9'
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Open Floor Plan
Vaulted / Cathedral Ceilings
143 sq/ft width 13' 4" x depth 10' 9"
85 sq/ft width 10' 6" x depth 8' 2"
271 sq/ft width 20' 4" x depth 13' 4"
819 sq/ft width 25' 4" x depth 32' 4"
136 sq/ft width 13' 4" x depth 10' 3"
398 sq/ft width 23' 4" x depth 17' 1"
173 sq/ft width 15' 8" x depth 11' 1"
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
