PLAN 535-9

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

This home is designed for a Southwestern lifestyle. It has a dramatic entryway with an option 800 square foot Casita, ideal for a home office or a 2-Gen living unit. The swimming pool/spa are also shown as optional lifestyle elements. The building design is proportionally based on the “Golden Rectangle,” as a proven standard of beauty and harmony. The Great Room offers unlimited views of the yard and pool areas. While the garage is designed for 2 cars, it can be expanded for a third car or golf cart. Dependent on site conditions, the garage can be moved to the rear of the site. The exterior walls are designed for “green wall” construction, typical with insulated ICF wall products. Ample roof areas can also accommodate energy saving solar panels.

Floor Plans

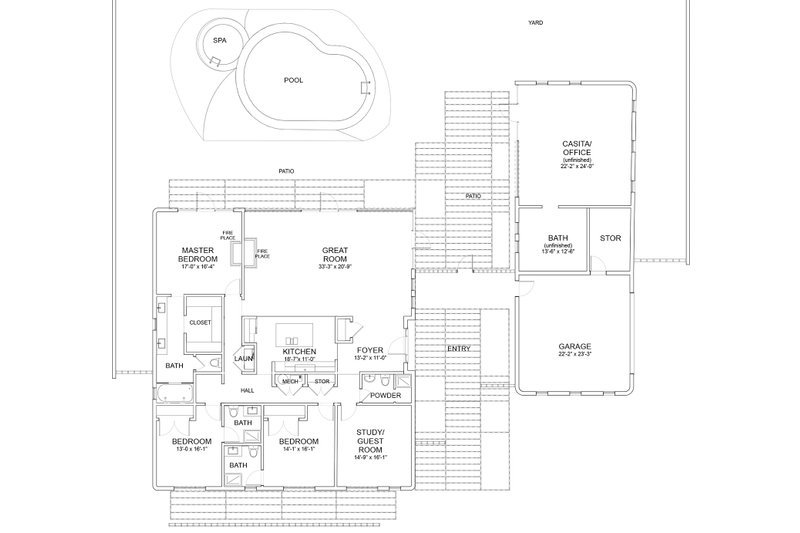

Floor Plan - Main Floor Plan

Full Specs & Features

Depth : 56' 2"
Height : 13' 6"
Width : 52' 4"
Bonus : 802 sq/ft
Garage : 698 sq/ft
Main Floor : 2924 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Bonus Ceiling : 12'
Garage Ceiling : 8'
Main Ceiling : 9'
Roof Framing : Flat truss system
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : ICF/Exterior, Wd. Frame Interior
Insulation : ICF - R30
Additional Room Features
Den Office Study Computer
Master Sitting Area
Unfinished Future Space
Garage Features
Detached Garage
Oversized Garage
Rear Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Two Family Home
Wheelchair Adaptable
Energy Efficient Features
Energy Efficient Design
