PLAN 46-403
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This european design floor plan is 2959 sq ft and has 3 bedrooms and 2.5 bathrooms.
Floor Plans

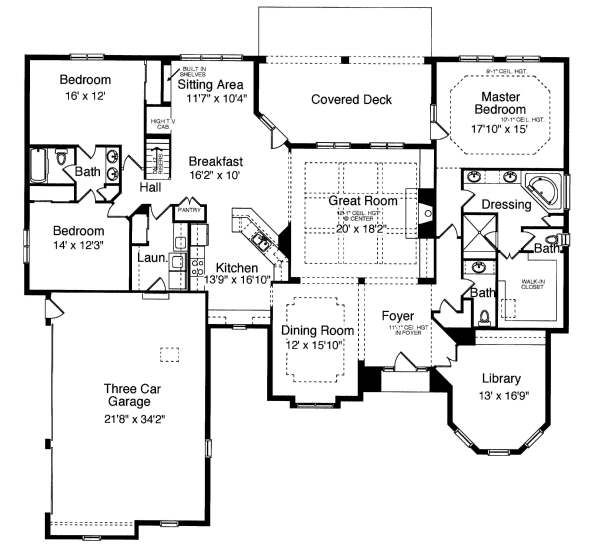

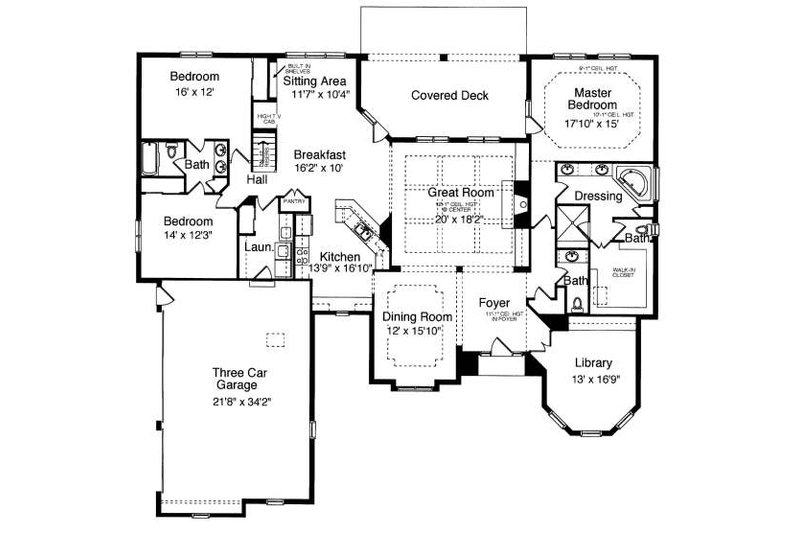

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 69'
Height : 28'
Width : 76'
Area
Basement Unfinished: 2959 sq/ft
First Floor: 2959 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : 2"x4"
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Great Room Living Room
Mud Room
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Outdoor Spaces
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
192 sq/ft width 16' x depth 12'
Bedroom 3:
172 sq/ft width 14' x depth 12' 4"
Breakfast Nook:
161 sq/ft width 16' 2" x depth 10'
Dining Room:
189 sq/ft width 12' x depth 15' 10"
Great Room:
363 sq/ft width 20' x depth 18' 2"
Kitchen:
232 sq/ft width 13' 10" x depth 16' 10"
Library:
218 sq/ft width 13' x depth 16' 10"
Master Bedroom:
267 sq/ft width 17' 10" x depth 15'
Parlor:
119 sq/ft width 11' 7" x depth 10' 4"
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
» See important
information before purchasing.

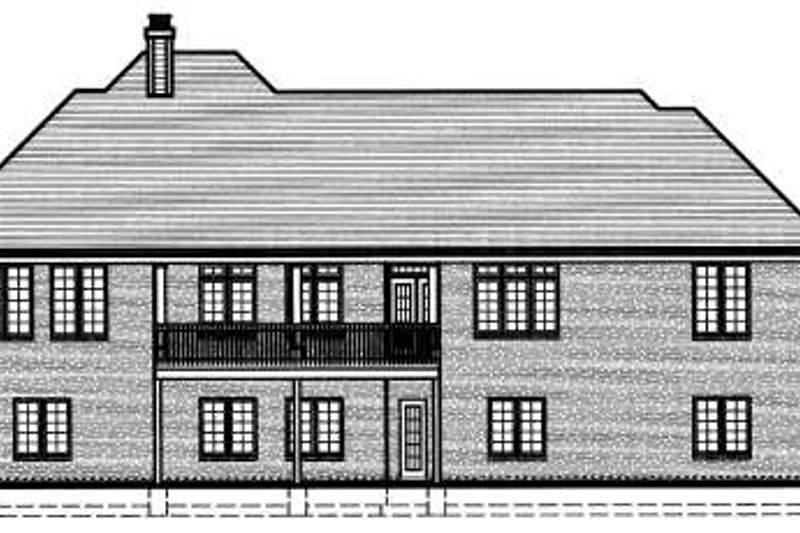

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
