PLAN 51-1058
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 80' 4"
Height : 22' 6"
Width : 48' 6"
Area
Basement Living: 1351 sq/ft height 8' 10"
First Floor: 1656 sq/ft height 9'
Garage: 732 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Sunroom
Outdoor Spaces
Deck
Screened Porch
Rooms

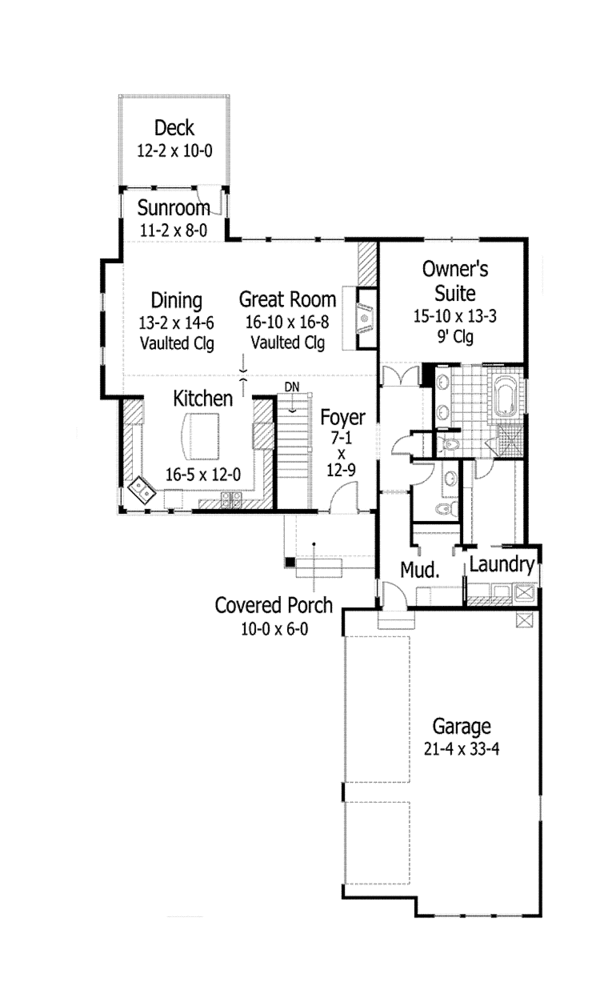

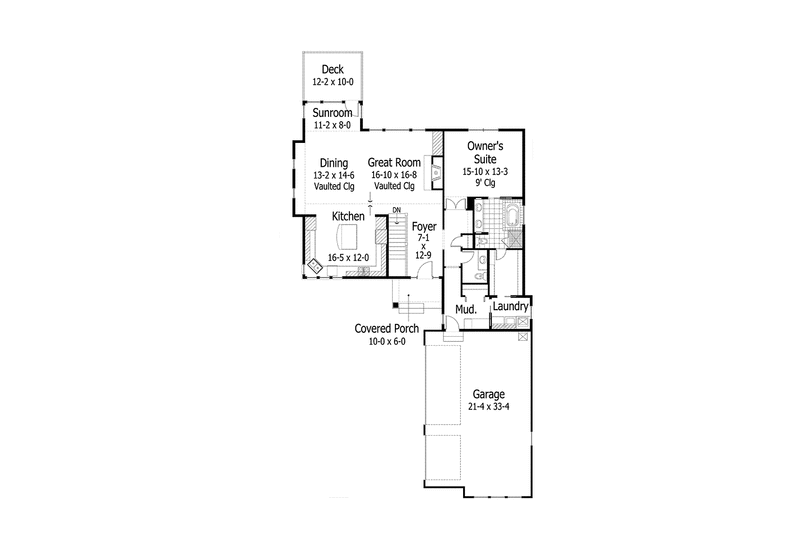

Bedroom 2:
161 sq/ft width 11' 8" x depth 13' 10"
Covered Porch:
60 sq/ft width 10' x depth 6'
Deck:
121 sq/ft width 12' 2" x depth 10'
Dining Room:
190 sq/ft width 13' 2" x depth 14' 6"

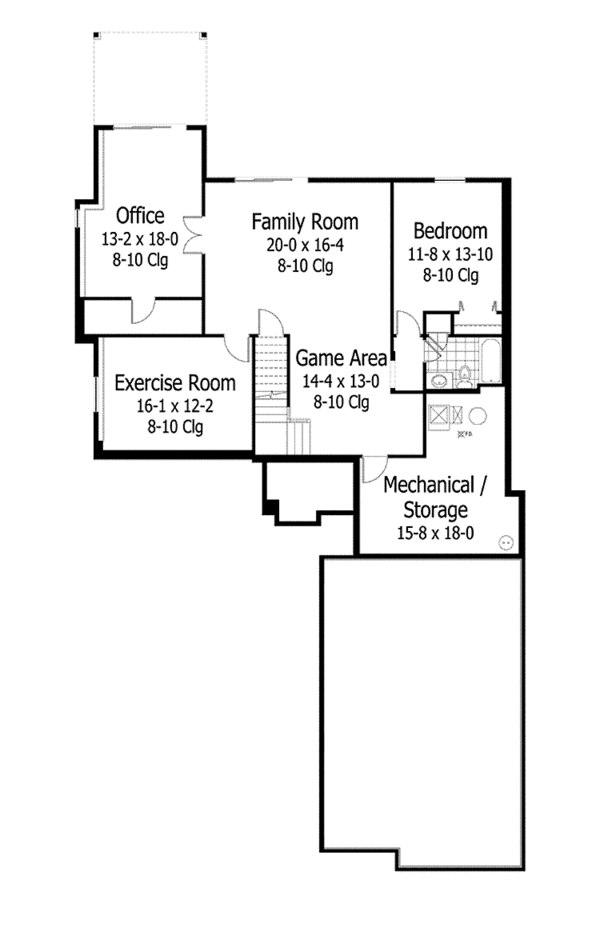

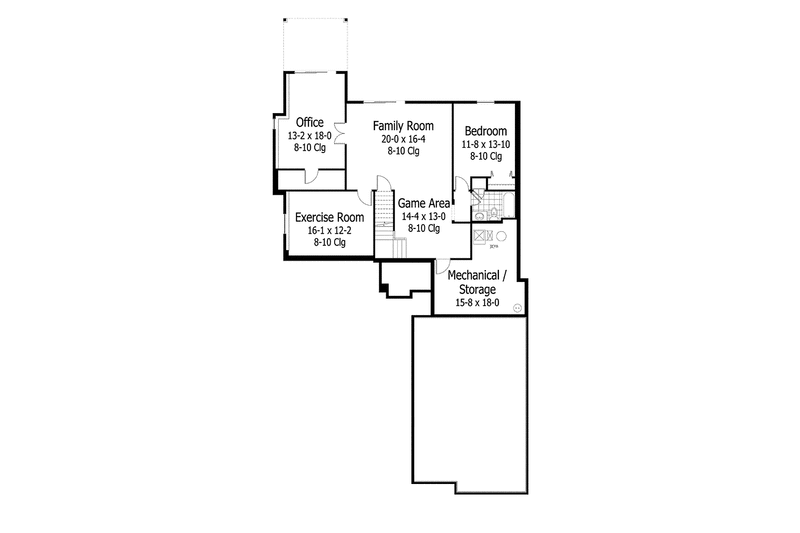

Exercise Room:
195 sq/ft width 16' 1" x depth 12' 2"
Family Room:
326 sq/ft width 20' x depth 16' 4"
Foyer:
90 sq/ft width 7' 1" x depth 12' 9"
Game Room:
186 sq/ft width 14' 4" x depth 13'
Garage:
711 sq/ft width 21' 4" x depth 33' 4"
Great Room:
280 sq/ft width 16' 10" x depth 16' 8"
Kitchen:
197 sq/ft width 16' 5" x depth 12'
Master Suite:
209 sq/ft width 15' 10" x depth 13' 3"
Mechanical/Equipment Room:
282 sq/ft width 15' 8" x depth 18'
Office:
237 sq/ft width 13' 2" x depth 18'
Sun Room:
89 sq/ft width 11' 2" x depth 8'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

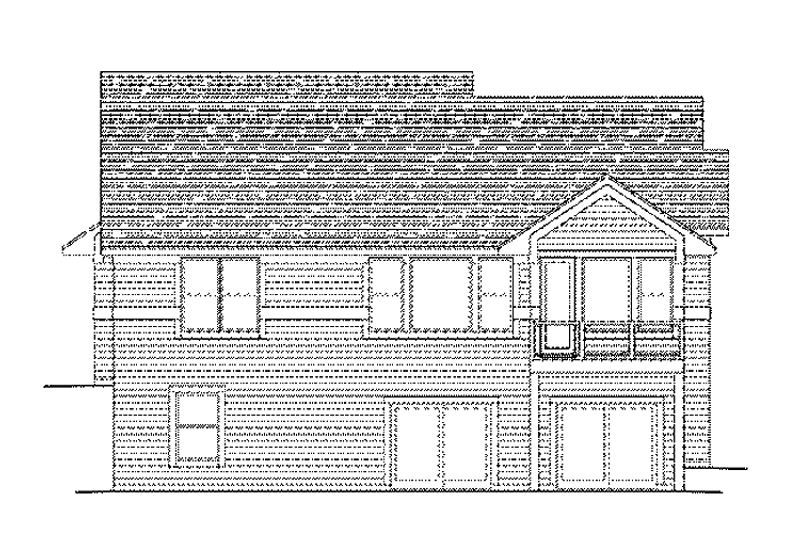

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1500.00
$1750.00
$1775.00
$2300.00
Foundation
$0.00
Framing
$0.00
$250.00
Additional Options
$200.00
$60.00
$100.00
$39.00
$200.00
$50.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
