PLAN #472-437

Key Specs


3021
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


This charming home is designed for the modern active family. The remarkably open layout on the first floor flows seamlessly from the island kitchen to the casual dining area and into the living room. Tucked out of sight but easy to reach, the master suite offers a spacious bedroom, a well-equipped bathroom featuring a large shower, and easy access to the laundry room. The study provides room for work or homeschooling. Kids will love hanging out upstairs, where three bedrooms share a unique Jack and Jill bath, a game room, and even a media room for movies.

Floor Plans

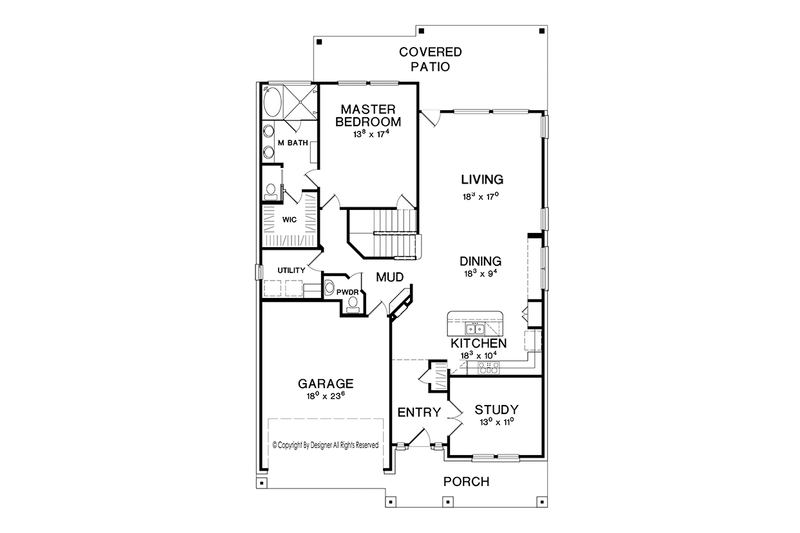

Floor Plan - Main Floor Plan

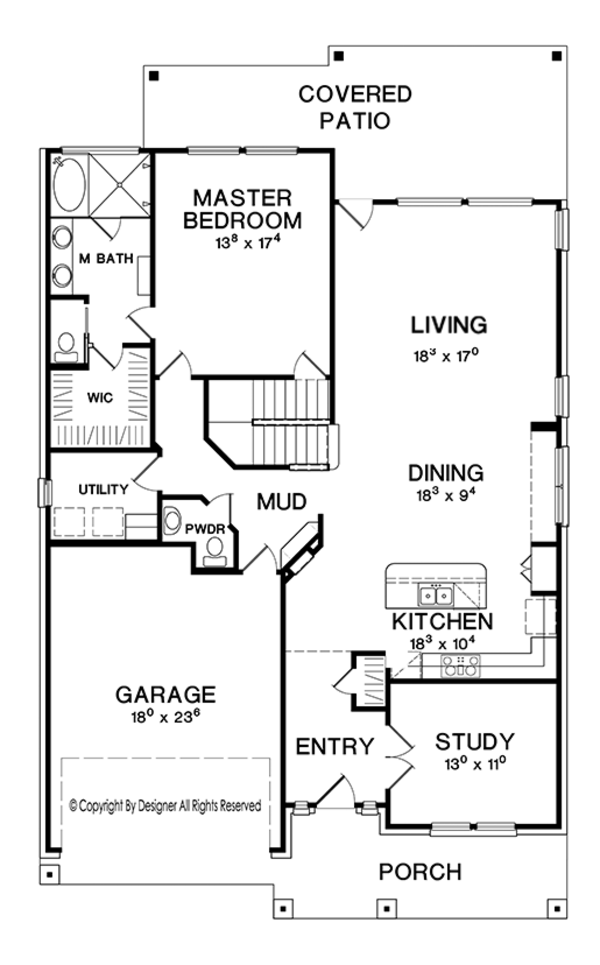

Craftsman Floor Plan - Main Floor Plan Plan #472-437

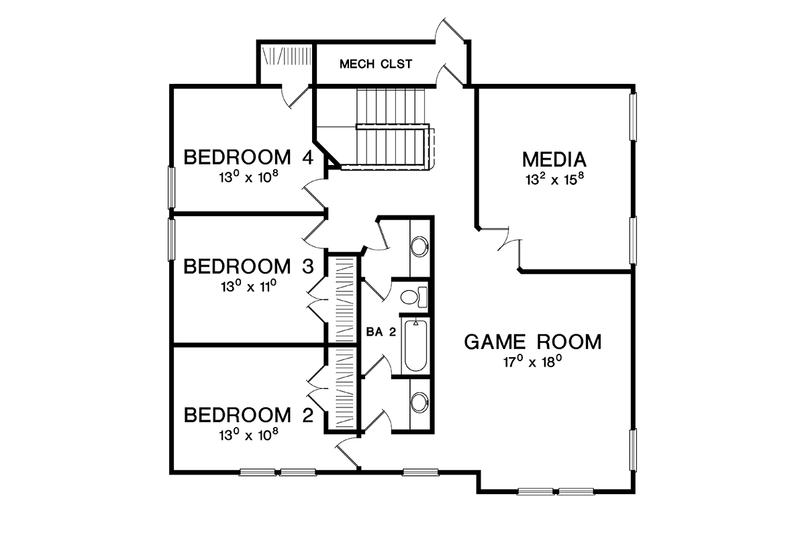

Floor Plan - Upper Floor Plan

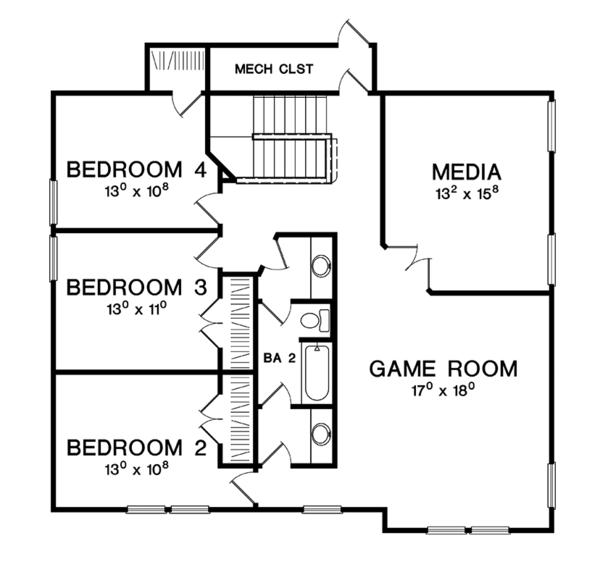

Craftsman Floor Plan - Upper Floor Plan Plan #472-437

Full Specs & Features


Dimension
Depth : 68'
Height : 30' 9"
Width : 41' 1"
Area
First Floor: 1641 sq/ft height 10'
Garage: 429 sq/ft
Second Floor: 1380 sq/ft
Roof
Roof Framing : Conventional
Primary Pitch : 8:12
Secondary Pitch : 7:12
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x4
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Jack Jill Bath
Mud Room
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

139 sq/ft width 13' x depth 10' 8"

Bedroom 3:

143 sq/ft width 13' x depth 11'

Bedroom 4:

139 sq/ft width 13' x depth 10' 8"

Covered Front Porch:

149 sq/ft

Dining Area:

170 sq/ft width 18' 3" x depth 9' 4"

Game Room:

306 sq/ft width 17' x depth 18'

Garage:

429 sq/ft width 18' x depth 23' 6"

Kitchen:

189 sq/ft width 18' 3" x depth 10' 4"

Living Room:

310 sq/ft width 18' 3" x depth 17'

Master Bedroom:

239 sq/ft width 136' 8" x depth 17' 4"

Media Room:

191 sq/ft width 13' 2" x depth 15' 8"

Study:

143 sq/ft width 13' x depth 11'

What's Included In This Plan Set


  • ELECTRICAL SCHEMATIC
  • EXTERIOR ELEVATIONS
  • CABINET ELEVATIONS
  • CEILING FRAMING
  • ROOF FRAMING
  • FOUNDATION OF CHOICE AS AVAILABLE (SLAB, CRAWLSPACE OR BASEMENT) APPROPRIATE FOUNDATION DETAIL SHEET
  • BUILDING CROSS SECTION IF MULTISTORY
  • ALSO 4 PAGE FHA DESCRIPTION OF MATERIALS FORM (NOT A MATERIALS LIST OF QUANTITIES)
  • GENERIC WALL SECTIONS
    Note: Reproducible and CAD files are not available if building in Texas, Oklahoma, New Mexico, or Louisiana. Architect must update and stamp all plans being sent to these states.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1395.00
5 printed plan sets mailed to you.
8 Copy Set :
$1545.00
8 printed plan sets mailed to you.
PDF Set :
$1895.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1895.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$2995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$125.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$250.00
Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Right-Reading Reverse :
390.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
