PLAN 124-620
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Following tradition, formal rooms are at the front of this two-story contemporary Craftsman cottage. But in this update, the heart of the home is a generously sized family room, open to the kitchen and eating nook. A raised eating/conversation bar also serves to hide kitchen clutter. The luxurious owners' suite is on the main floor.
Full Specs & Features
Dimension
Depth : 67'
Height : 24' 6"
Width : 64'
Height : 24' 6"
Width : 64'
Area

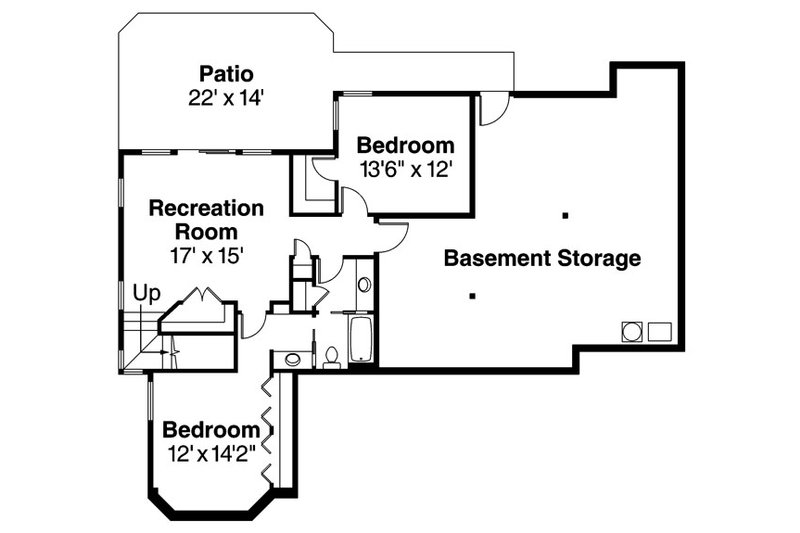

Basement Living: 924 sq/ft
Bonus: 748 sq/ft height 9'
First Floor: 2098 sq/ft height 9'
Garage: 580 sq/ft height 9'
Bonus: 748 sq/ft height 9'
First Floor: 2098 sq/ft height 9'
Garage: 580 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 25
Roof Framing : Truss
Roof Load : 25
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone/Shingle
Framing : 2"x6"
Framing : 2"x6"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Storage Area
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Storage Area
Garage Features
Front Entry Garage
Oversized Garage
Oversized Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Grill Deck Sundeck
Rooms
Bedroom 2:
148 sq/ft width 11' x depth 13' 6"
Bedroom 3:
170 sq/ft width 12' x depth 14' 2"
Breakfast Nook:
143 sq/ft width 13' 8" x depth 10' 6"
Deck:
168 sq/ft width 14' x depth 12'
Dining Room:
166 sq/ft width 13' 6" x depth 12' 4"
Family Room:
375 sq/ft width 20' 8" x depth 18' 2"
Garage:
525 sq/ft width 21' x depth 25'
Master Bedroom:
252 sq/ft width 14' x depth 18'
Parlor:
176 sq/ft width 12' x depth 14' 8"
Patio:
308 sq/ft width 22' x depth 14'
Recreation Room:
255 sq/ft width 17' x depth 15'
What's Included In This Plan Set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

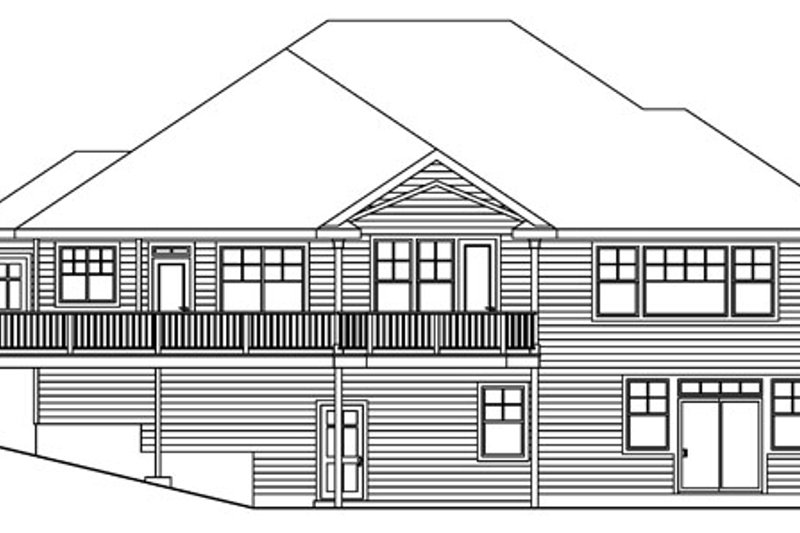

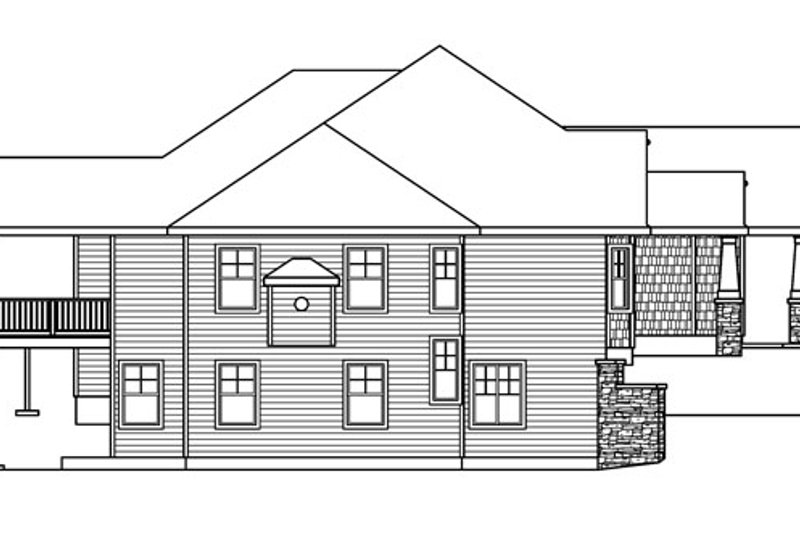

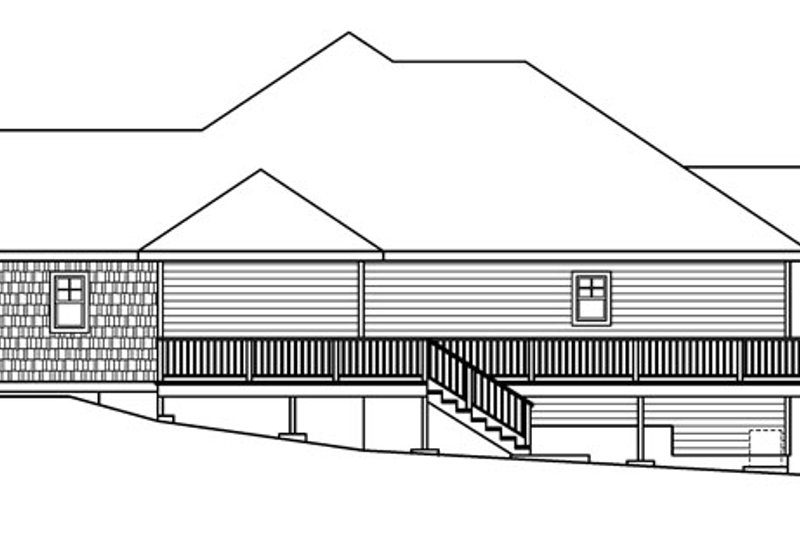

- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

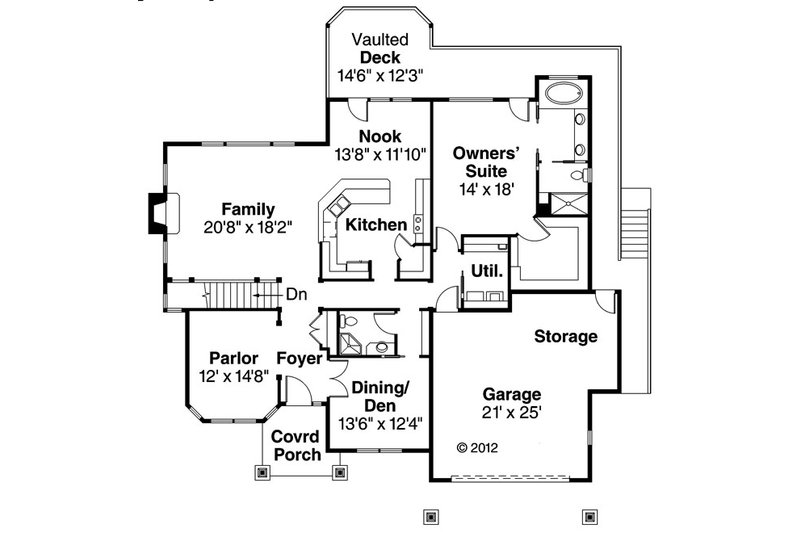

- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
