PLAN 48-656
Key Specs
3008
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-888-447-1946
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Phone: 1-888-447-1946
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 48-656
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

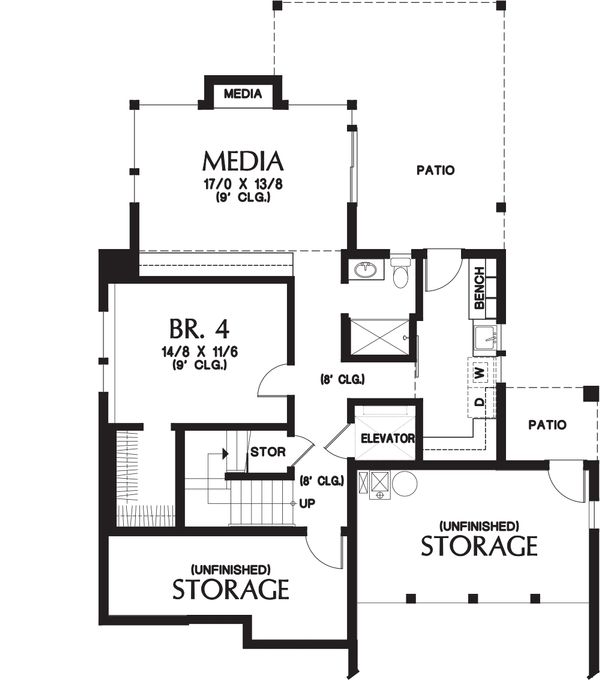

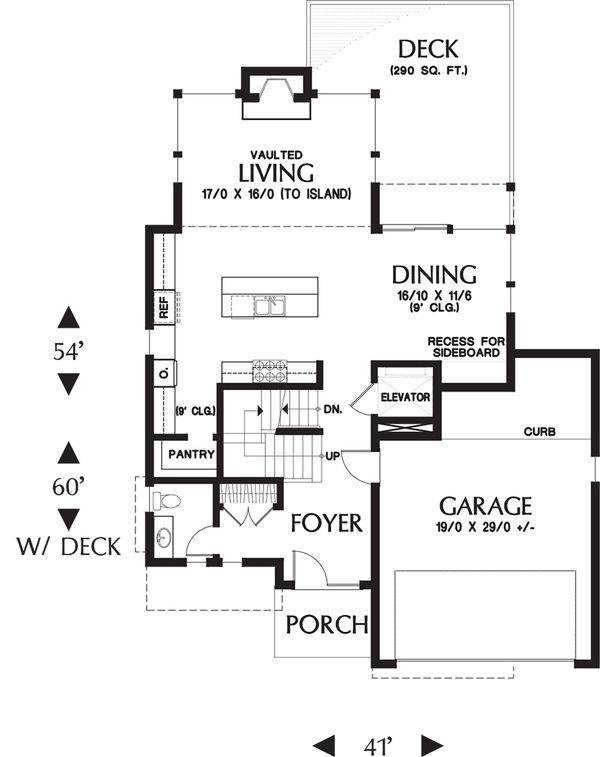

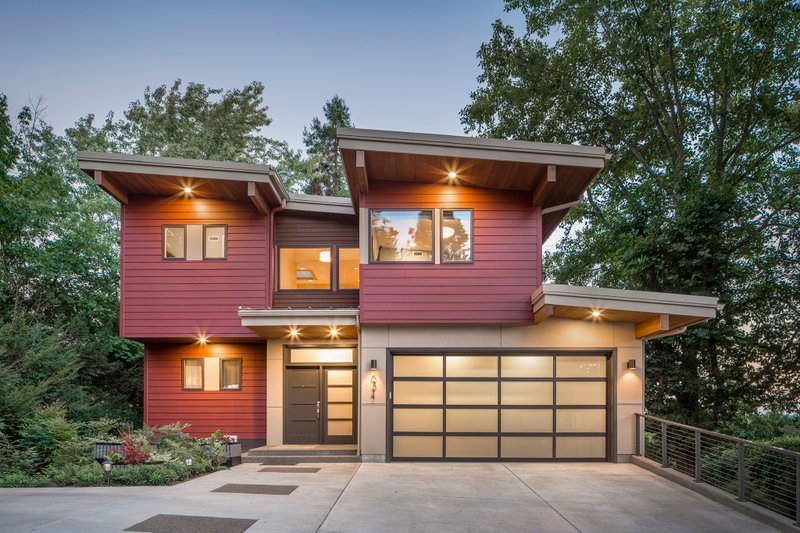

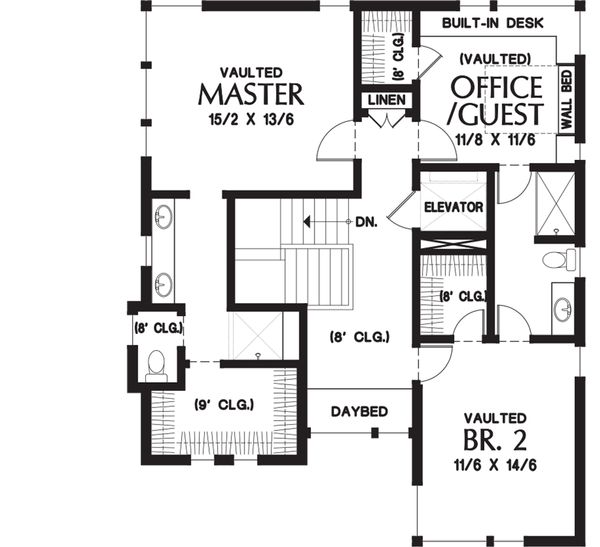

This 4 bedroom 3.5 bath contemporary design -- so handsomely photographed by Bob Greenspan -- shows how to maximize airiness and luxury amenities within an efficient three-level plan. From the foyer with its closet and adjacent powder room you pass the kitchen island and enter the soaring great room where window walls open to a generous rear deck. You feel you are in a spacious treehouse! The major bedrooms are upstairs, and include an office/guest room (with its own bath) situated near the master suite -- so it can be used as a "snoritorium" in a pinch! The fourth bedroom -- which could be a teen suite -- a media room, and laundry are on the bottom level opening to a covered patio. An elevator to all three levels makes this the perfect choice for aging in place.
