Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 124-735
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 49'
Height : 34' 8"
Width : 98'
Area
Bonus: 616 sq/ft height 9'

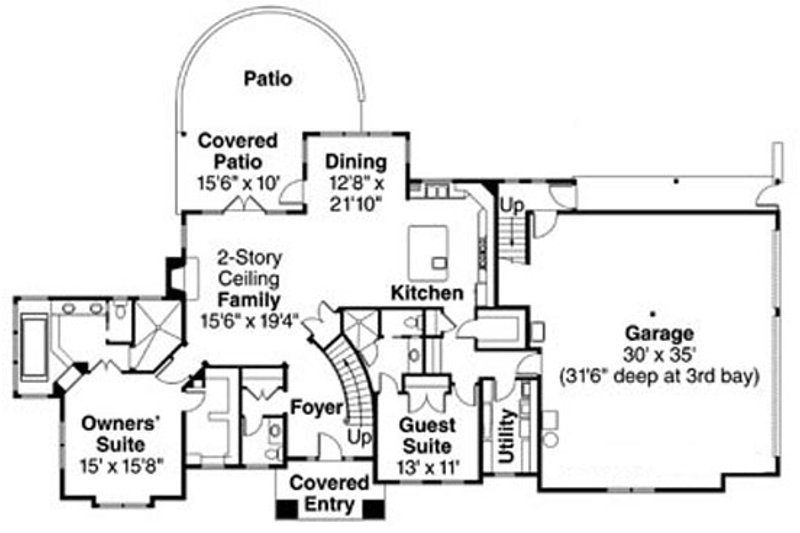

First Floor: 2150 sq/ft height 9'
Garage: 1200 sq/ft height 9'

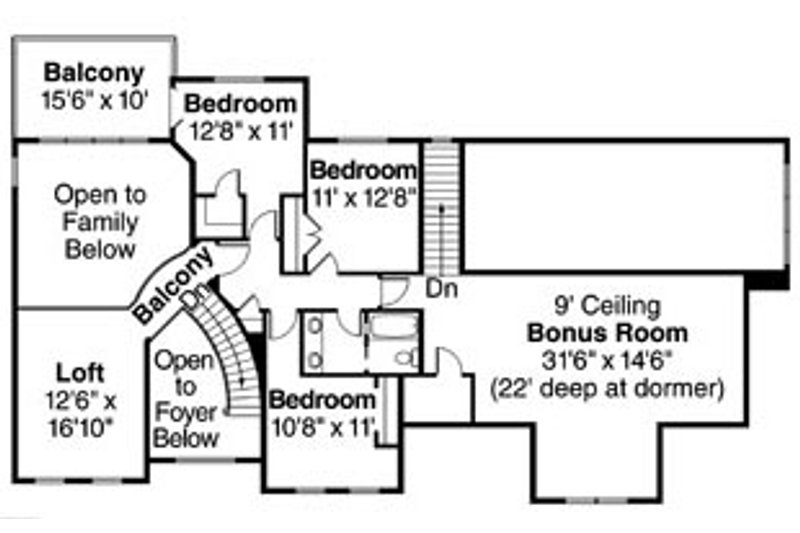

Second Floor: 993 sq/ft height 9'
Roof
Primary Pitch : 10:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : siding/stone
Framing : 2"x6"
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Loft
Main Floor Laundry
Play Flex Room
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
Rooms
Balcony:
155 sq/ft width 15' 6" x depth 10'
Bedroom 2:
139 sq/ft width 12' 8" x depth 11'
Bedroom 3:
139 sq/ft width 11' x depth 12' 8"
Bedroom 4:
117 sq/ft width 10' 8" x depth 11'
Bonus Room - Unfinished:
456 sq/ft width 31' 6" x depth 14' 6"
Dining Room:
276 sq/ft width 12' 8" x depth 21' 10"
Garage:
1050 sq/ft width 30' x depth 35'
Guest Suite:
143 sq/ft width 13' x depth 11'
Loft:
210 sq/ft width 12' 6" x depth 16' 10"
Master Bedroom:
235 sq/ft width 15' x depth 15' 8"
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

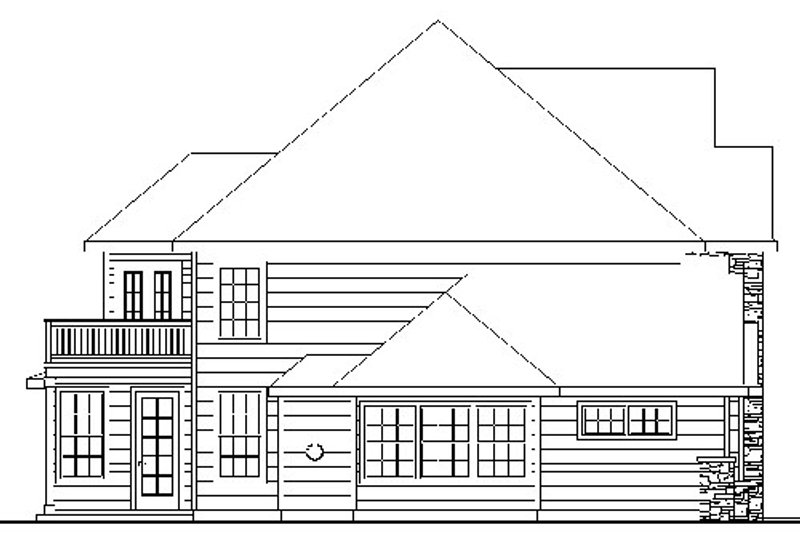

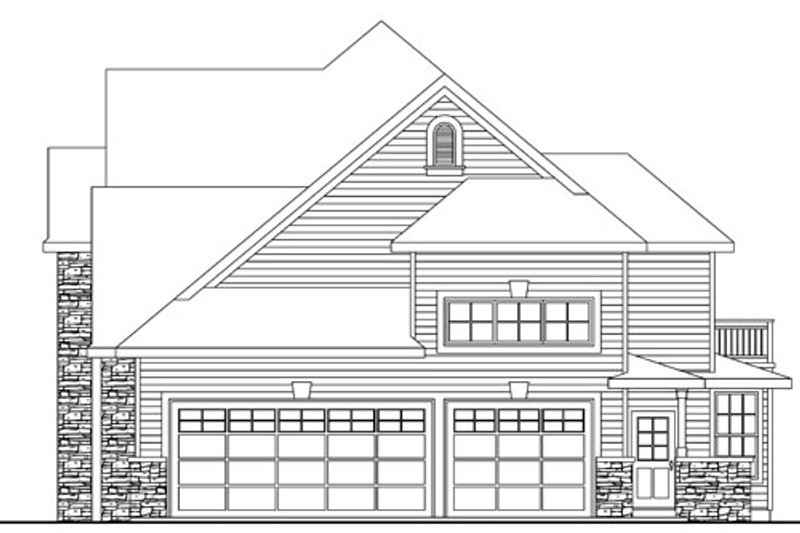

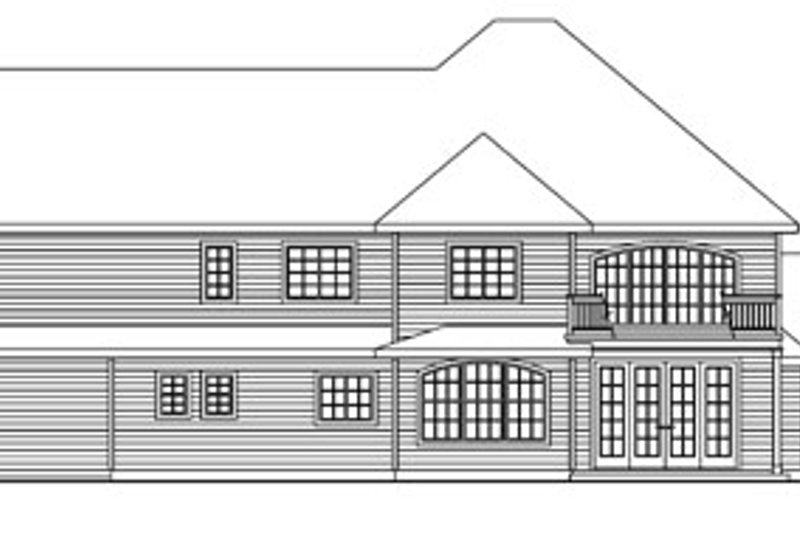

- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Plan Set
$1500.00
$1825.00
$2875.00
$3150.00
$3450.00
$1200.00
Foundation
$0.00
$580.00
$715.00
Framing
$0.00
$580.00
Additional Options
$465.00
$70.00
$1095.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
