PLAN 51-649
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 62'
Height : 32'
Width : 91'
Area
Basement Unfinished: 1697 sq/ft height 8'
First Floor: 1697 sq/ft height 9'
Garage: 1201 sq/ft
Second Floor: 1455 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Master Sitting Area
Mud Room
Upstairs Laundry
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Bedroom 2:
183 sq/ft width 12' 8" x depth 14' 6"
Bedroom 3:
166 sq/ft width 12' 4" x depth 13' 6"
Computer Room:
100 sq/ft width 10' x depth 10'
Dinette:
168 sq/ft width 12' x depth 14'
Dining Room:
158 sq/ft width 11' 4" x depth 14'
Family Room:
320 sq/ft width 20' x depth 16'
Foyer:
133 sq/ft width 8' 4" x depth 16'
Garage:
884 sq/ft width 34' x depth 26'
Kitchen:
180 sq/ft width 10' x depth 18'
Laundry Room:
83 sq/ft width 8' 4" x depth 10'
Master Bedroom:
293 sq/ft width 14' 8" x depth 20'
Master Walk-In Closet:
97 sq/ft width 16' 4" x depth 6'
Mud Room:
93 sq/ft width 14' x depth 6' 8"
Porch - Front:
204 sq/ft width 34' x depth 6'
Study:
152 sq/ft width 12' 8" x depth 12'
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

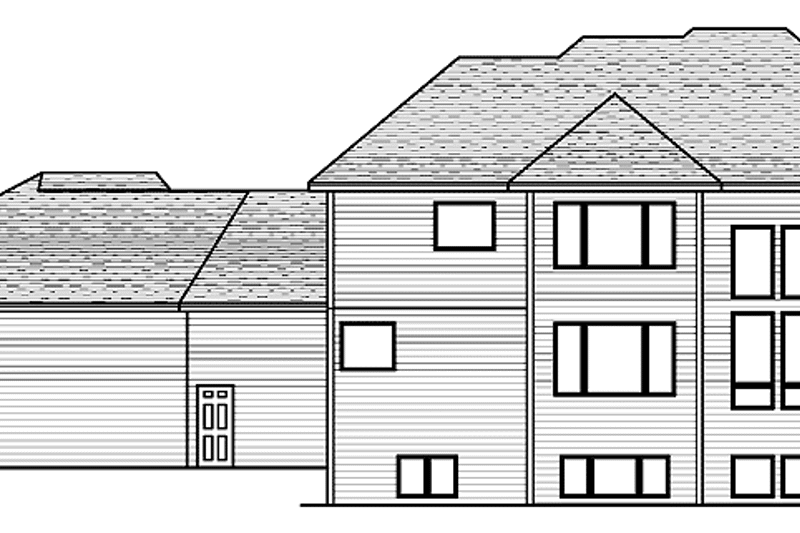

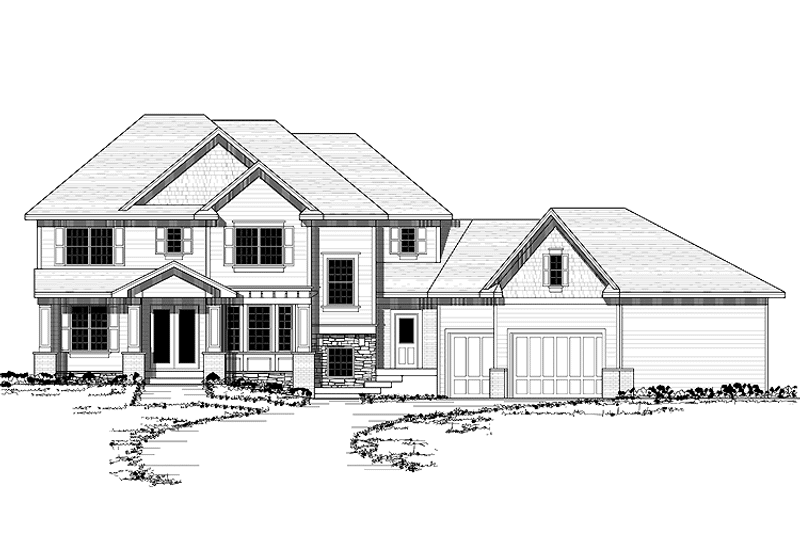

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

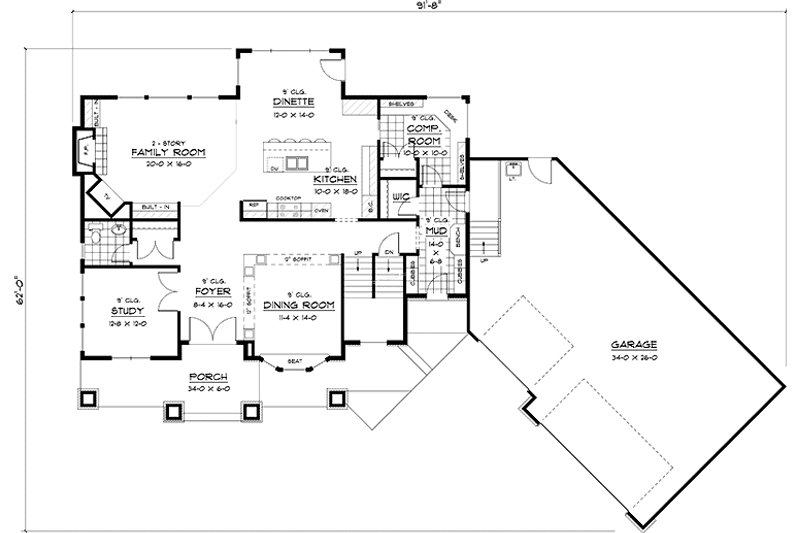

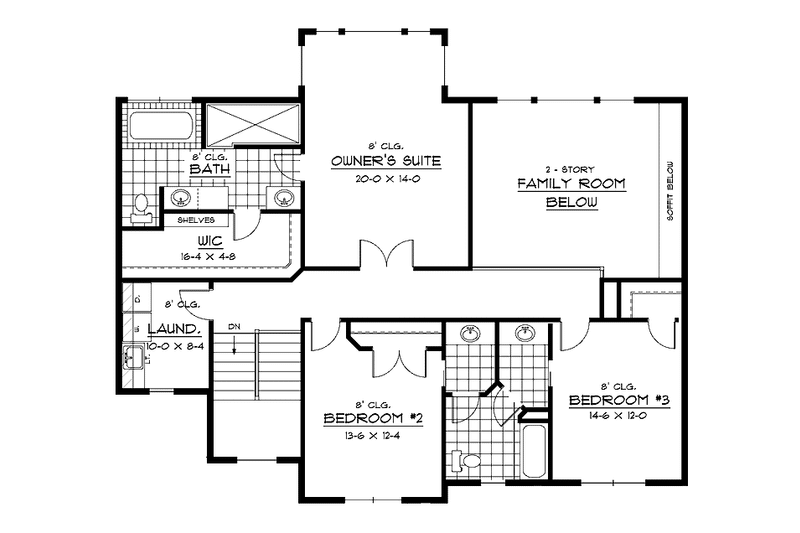

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1650.00
$1925.00
$1953.00
$2530.00
Foundation
$0.00
Framing
$0.00
$250.00
Additional Options
$250.00
$60.00
$165.00
$39.00
$165.00
$50.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
