PLAN 1058-75
Cost to Build Reports Only $9.99 for a Limited Time! Use Code CTB2021
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 1058-75
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
With two levels of outdoor living in front and another in back (plus a built-in grill area), this lovely home makes it easy to get outside with family and friends.
Full Specs & Features
Height : 28' 1"
Width : 39' 8"
Garage: 360 sq/ft height 10'
Second Floor: 1635 sq/ft height 9'
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 3:12
Framing : Block (1st Story)/ Wood – 2x4 (2nd Story)
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Island
Kitchenette Wet Bar
Great Room Living Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Open Floor Plan
Upstairs Laundry
Side Entry Garage
Covered Rear Porch
Deck
Grill Deck Sundeck
Outdoor Kitchen Grill
Activity Room:
372 sq/ft width 20' 8" x depth 18'
Bedroom 3:
168 sq/ft width 12' x depth 14'
Bedroom 4:
147 sq/ft width 12' x depth 12' 3"
Covered Front Balcony:
280 sq/ft width 35' x depth 8'
Covered Front Porch:
280 sq/ft width 35' x depth 8'
Covered Grilling Area:
104 sq/ft width 13' x depth 8'
Covered Rear Porch:
247 sq/ft width 24' 8" x depth 10'

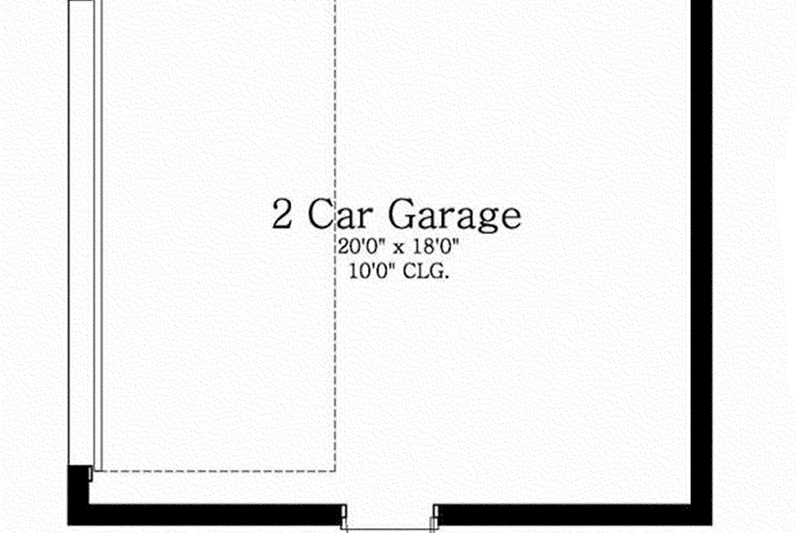

Detached Garage:
360 sq/ft width 20' x depth 18'
Dining Area:
120 sq/ft width 10' x depth 12'
Flex Room:
117 sq/ft width 10' x depth 11' 8"
Foyer:
42 sq/ft width 6' x depth 7'
Great Room:
383 sq/ft width 23' x depth 16' 8"
Kitchen:
132 sq/ft width 11' x depth 12'
Master Bedroom 1:
287 sq/ft width 20' x depth 14' 4"
Master Bedroom 2:
168 sq/ft width 12' x depth 14'
Tech Area:
80 sq/ft width 10' x depth 8'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

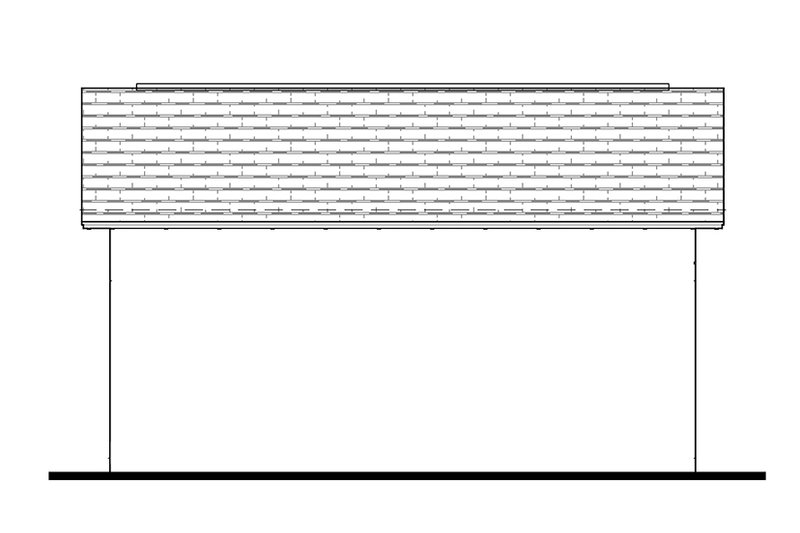

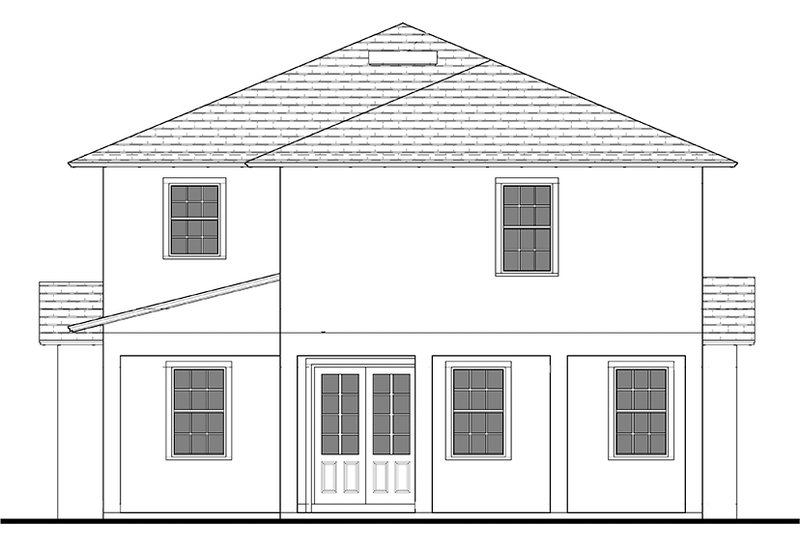

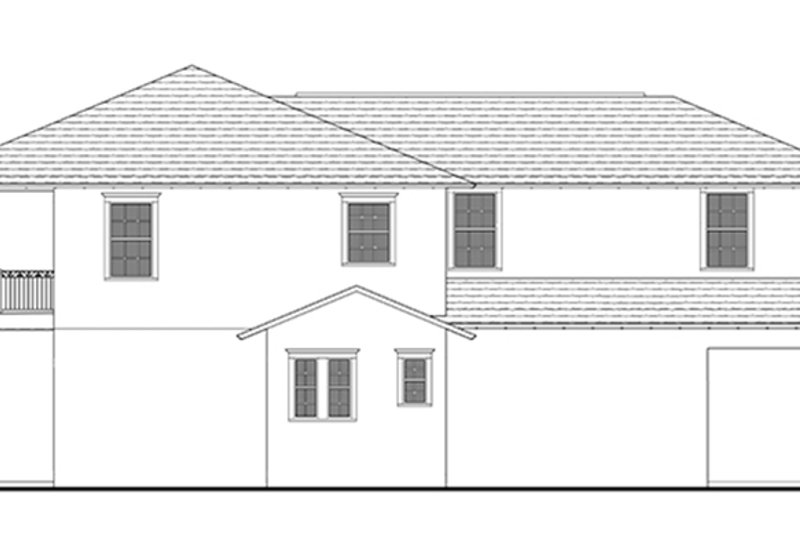

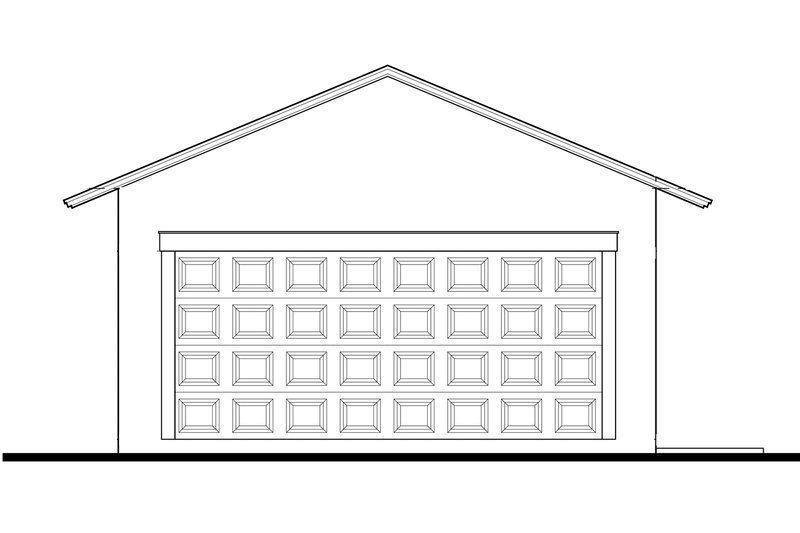

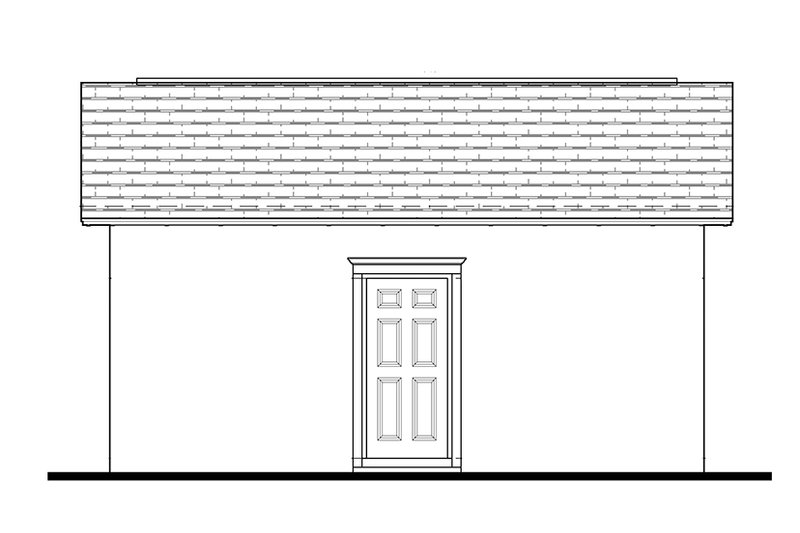

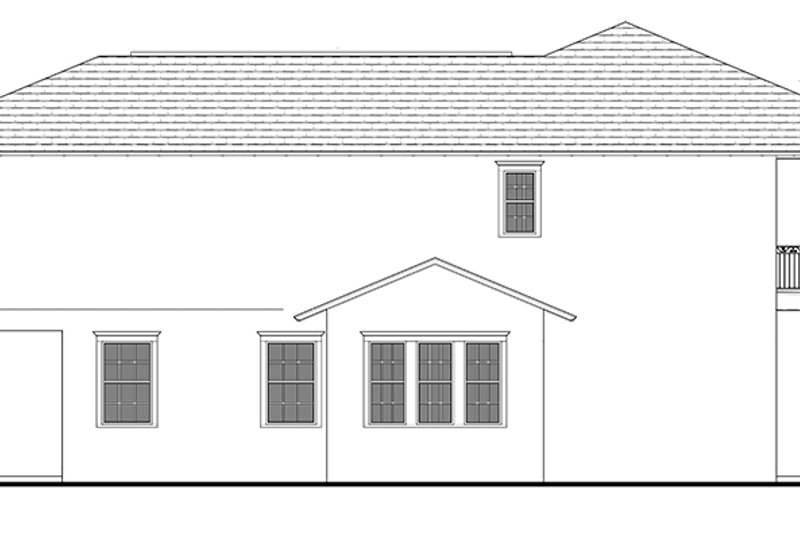

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

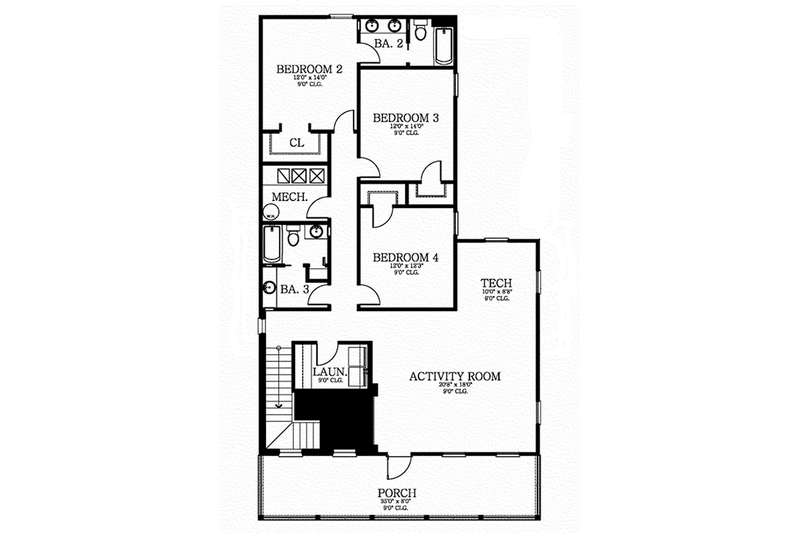

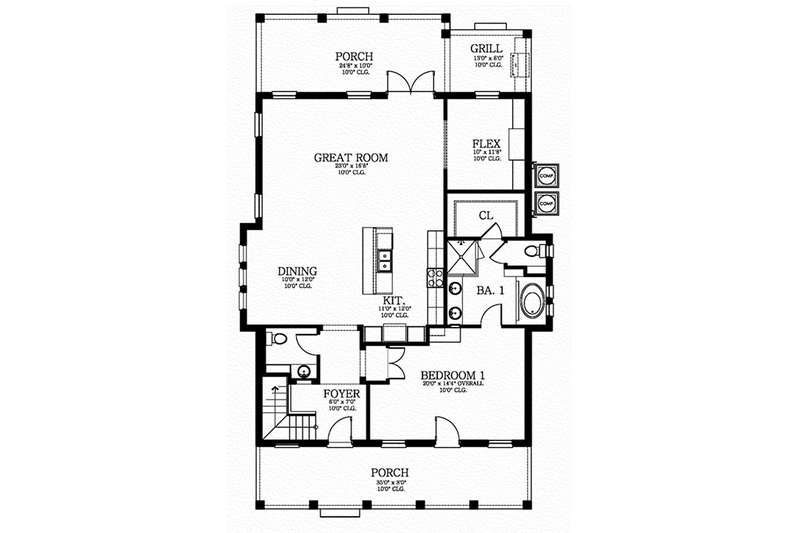

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
| 5 Copy Set
: $2295.00 |
5 printed plan sets mailed to you. |
| CAD Set
: $2595.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| PDF Set
: $2595.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse
: $250.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $40.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
