PLAN 1058-11

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

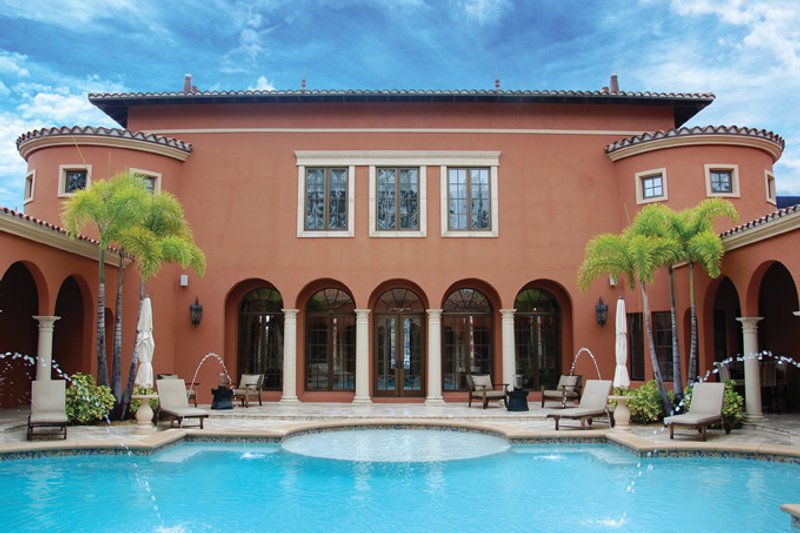

Wow! This splendid home is built around a courtyard, giving great views to every room. Enter the house from the motorcourt (with split garage space for four cars) and step into the foyer. From here, a wall of French doors gives you a gorgeous vista of the pool and extensive loggias. To the left, everyone can relax in the family room, open kitchen, and circular breakfast nook. More formal reception happens in the "sala" and dining room, each boasting a fireplace. Kids will love the game room and wet bar. Clear across the courtyard, the owner's retreat has the wing to itself: a sitting room, fireplace, two big closets, and great bathroom (with two water closets) surround you with comfort. A detached guest suite sits next to the veranda and near the exercise room. Three more bedroom suites rest upstairs.

Full Specs & Features


Depth : 160' 4"

Height : 33'

Width : 109'


First Floor: 5911 sq/ft height 12'

Garage: 1152 sq/ft

Porch: 2193 sq/ft

Second Floor: 1429 sq/ft height 10'

Storage: 200 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Primary Pitch : 4:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features


Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Exercise Room

Family Room Keeping Room

Hobby Rec Room Game Room


Main Floor Laundry

Master Sitting Area

Mud Room

Wine Cellar

Garage Features

Detached Garage

Outdoor Spaces



Covered Rear Porch


Grill Deck Sundeck

Outdoor Fireplace

Outdoor Kitchen Grill


Bedroom 2:

width 14' x depth 14'

Bedroom 3:

width 15' 8" x depth 16'

Bedroom 4:

width 15' 4" x depth 14'


width 15' 8" x depth 19'

Exercise Room:

width 15' x depth 11'

Family Room:

width 22' 6" x depth 22' 4"


width 14' 6" x depth 8'

Game Room:

width 21' x depth 21'


width 22' 8" x depth 22'

Garage 2:

width 22' 8" x depth 22'

Guest Suite:

width 14' 6" x depth 13' 8"


width 19' x depth 19' 8"

Master Bedroom:

width 22' x depth 15' 4"


width 15' 8" x depth 19'

Sitting Area:

width 13' x depth 13'


width 15' x depth 14'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
