Key Specs
3210
sq ft
4
Beds
3.5
Baths
2
Floors
2
Garages
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 939-2
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 76'
Height : 24' 10"
Width : 68' 8"
Area
Bonus: 325 sq/ft

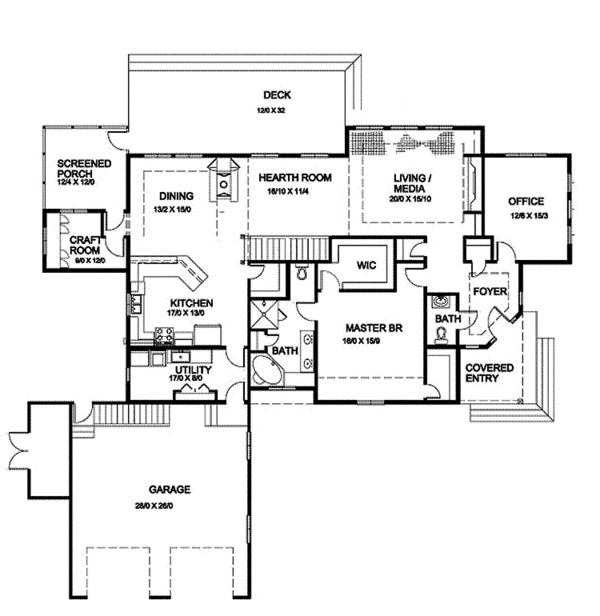

First Floor: 2250 sq/ft
Garage: 736 sq/ft

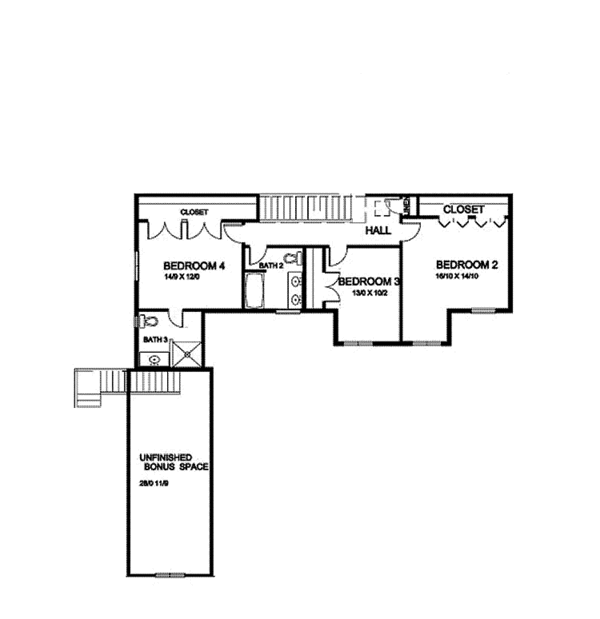

Second Floor: 960 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6 Wood - 2x4
Bedroom Features
Fireplace
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Sunroom
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Deck
Screened Porch
Rooms
Bedroom 2:
249 sq/ft width 16' 10" x depth 14' 10"
Bedroom 3:
132 sq/ft width 13' x depth 10' 2"
Bedroom 4:
177 sq/ft width 14' 9" x depth 12'
Bonus Room - Unfinished:
286 sq/ft width 26' x depth 11'
Dining Room:
197 sq/ft width 13' 2" x depth 15'
Garage:
676 sq/ft width 26' x depth 26'
Hearth Room:
190 sq/ft width 16' 10" x depth 11' 4"
Kitchen:
221 sq/ft width 17' x depth 13'
Living Room:
316 sq/ft width 20' x depth 15' 10"
Master Bedroom:
240 sq/ft width 16' x depth 15'
Office:
190 sq/ft width 12' 6" x depth 15' 3"
Porch - Screened:
144 sq/ft width 12' 4" x depth 12'
Porch Front:
86 sq/ft
Utility Room:
width 178' x depth 0"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

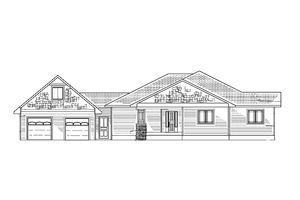

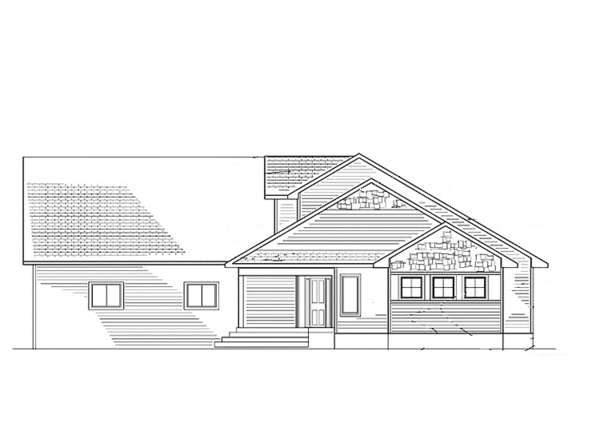

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1345.00
$1445.00
$1545.00
$1595.00
$1795.00
Foundation
$0.00
$150.00
Framing
$0.00
$0.00
Additional Options
$175.00
$45.00
$100.00
$39.00
$200.00
$55.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
