PLAN 417-754

Mediterranean Exterior - Front Elevation Plan #417-754

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
NOW $954.00
You save $106.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-754

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

With an elegant Mediterranean flavor, this spacious home will be a joy to live in and a wonderful setting for gracious evenings of dining and talking with friends. Unusual-shaped rooms create interesting alcoves, nooks, and bays that can be used to dress up the interior with favorite pieces of furniture, handy cabinets, or plants. Built-in art niches, a built-in desk, and a built-in media/entertainment area are among the enhancements that make this home so special. A covered rear patio could be the site of a swimming pool; a bath with a shower opens to this area. The master suite also opens through French doors to the patio. It enjoys a regal bath with His and Hers walk-in closets and vanities, a shower, and a bumped-out garden tub. The huge kitchen, with a cooktop island and peninsular snack counter, will put a sparkle in the family chef's eye.

Floor Plans

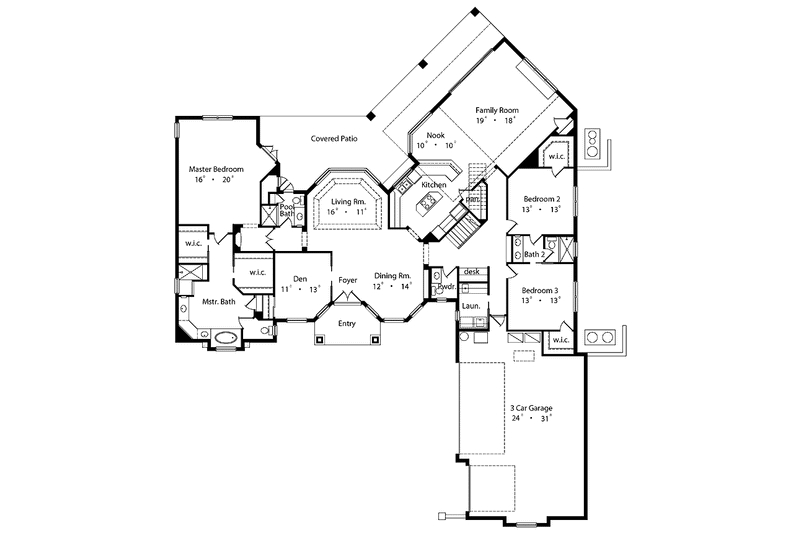

Floor Plan - Main Floor Plan

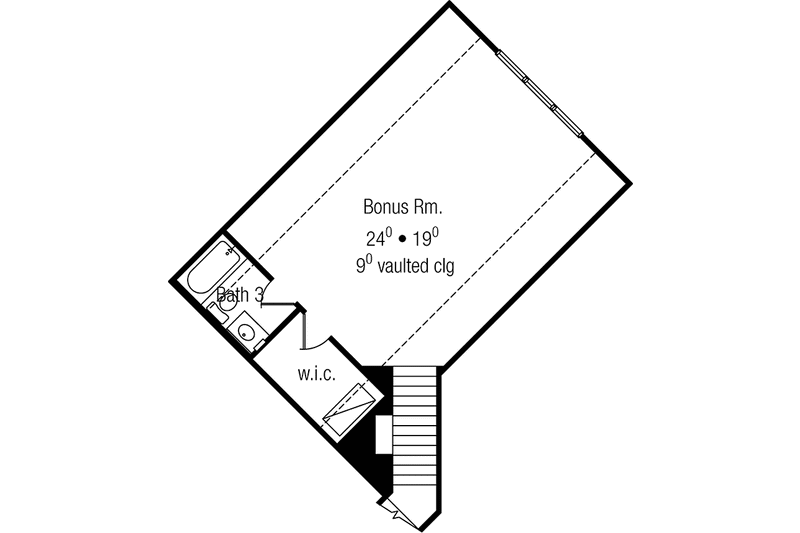

Floor Plan - Upper Floor Plan

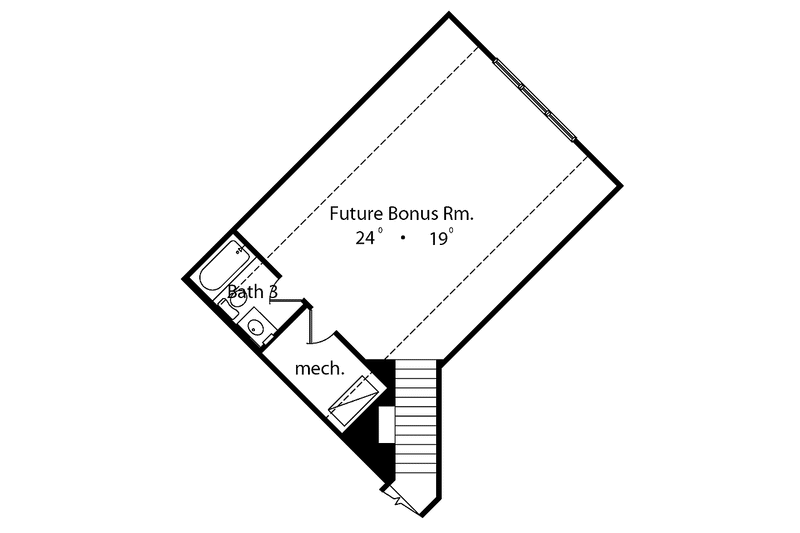

Floor Plan - Other Floor Plan

Full Specs & Features

Depth : 102' 6"
Height : 26'
Width : 81' 4"
Bonus: 522 sq/ft
First Floor: 3220 sq/ft height 12'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bathroom 3:

62 sq/ft width 12' x depth 5' 2"

Bedroom 2:

169 sq/ft width 13' x depth 13'

Bedroom 2 Closet:

27 sq/ft width 6' x depth 4' 6"

Bedroom 3:

169 sq/ft width 13' x depth 13'

Bedroom 3 Closet:

42 sq/ft width 7' x depth 6'

Bonus Room - Finished:

456 sq/ft width 19' x depth 24'

Breakfast Nook:

93 sq/ft width 8' 6" x depth 11'

Den/Office or Bedroom 1:

143 sq/ft width 11' x depth 13'

Dining Room:

159 sq/ft width 12' x depth 13' 4"


58 sq/ft width 6' x depth 9' 10"


900 sq/ft width 24' 8" x depth 36' 6"

Gathering Room:

354 sq/ft width 19' 4" x depth 18' 4"


242 sq/ft width 15' 4" x depth 15' 10"

Laundry Room:

51 sq/ft width 5' 8" x depth 9'

Living Room:

181 sq/ft width 16' x depth 11' 4"

Master Bathroom:

304 sq/ft width 18' 8" x depth 16' 4"

Master Bedroom:

330 sq/ft width 16' x depth 20' 8"

Master Closet:

41 sq/ft width 5' 8" x depth 7' 4"

Master Closet Two:

61 sq/ft width 7' 8" x depth 8'

Powder Room:

34 sq/ft width 5' 8" x depth 6'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.



Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
