Plan Description
This modern design floor plan is 3296 sq ft and has 3 bedrooms and 3.5 bathrooms.
Floor Plans

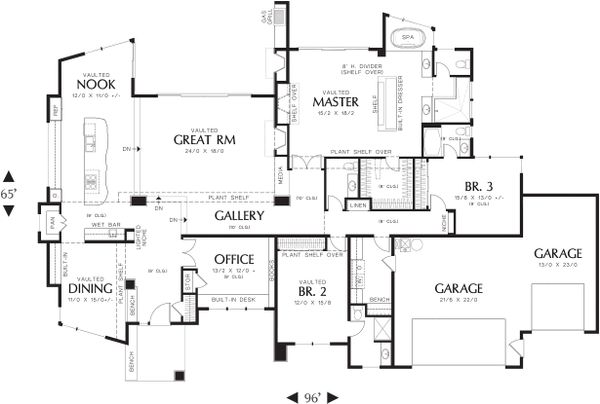

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 65'
Height : 17'
Width : 96'
Area
First Floor: 3296 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Garage Features
Front Entry Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
Rooms
Bedroom 2:
188 sq/ft width 12' x depth 15' 8"
Bedroom 3:
203 sq/ft width 15' 8" x depth 13'
Dining Room:
165 sq/ft width 11' x depth 15'
Garage:
473 sq/ft width 21' 6" x depth 22'
Garage Two:
299 sq/ft width 13' x depth 23'
Great Room:
432 sq/ft width 24' x depth 18'
Master Bedroom:
275 sq/ft width 15' 2" x depth 18' 2"
Nook:
132 sq/ft width 12' x depth 11'
Office:
158 sq/ft width 13' 2" x depth 12'
