PLAN 1058-79
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

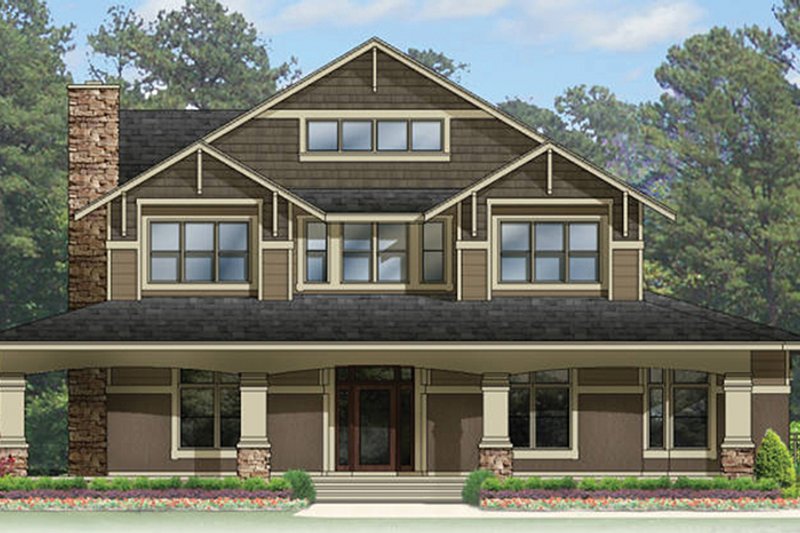

This plan has the look of a vintage Craftsman plan and combines the elements of the classic bungalow with updated amenities making it appealing to any prospective buyer. The entry is flanked by the study and formal dining room, mush like classic plans but then leads to a kitchen with dining nook and huge family room with a wall of sliders that lead to a terrific back porch. Upstairs, the large hallway has a front window seat that overlooks the front yard. There is an exceptional special master suite with private balcony and two additional bedrooms.
Full Specs & Features
Dimension
Depth : 60'
Height : 33' 7"
Width : 118'
Height : 33' 7"
Width : 118'
Area

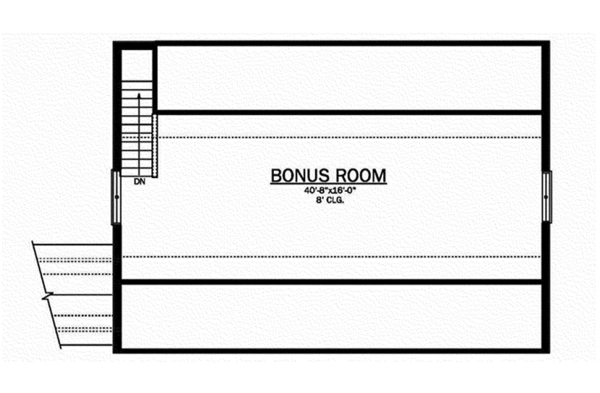

Bonus: 668 sq/ft height 8'

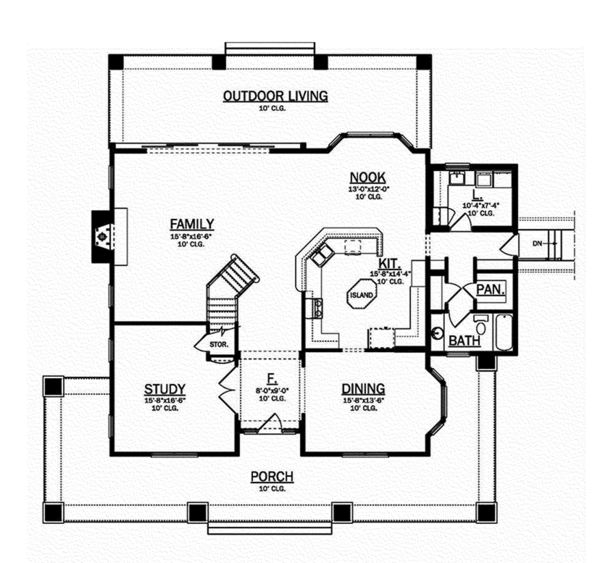

First Floor: 1941 sq/ft height 10'
Garage: 1260 sq/ft height 9'

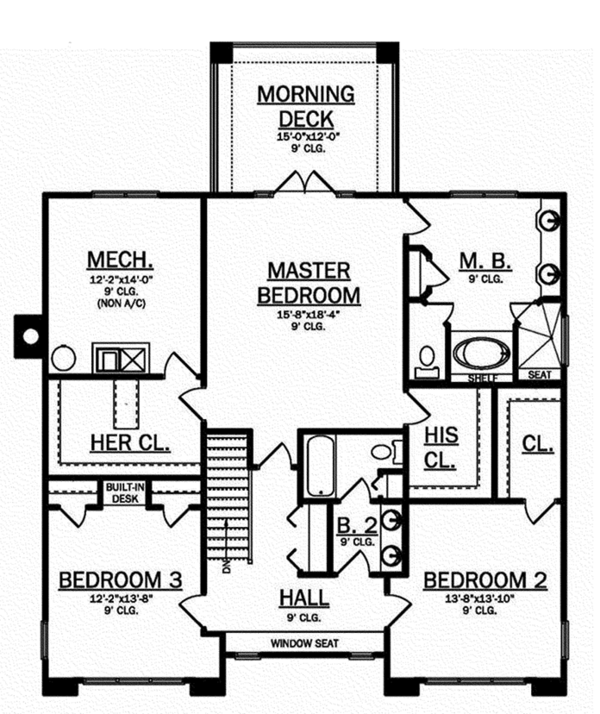

Second Floor: 1374 sq/ft height 9'
First Floor: 1941 sq/ft height 10'
Garage: 1260 sq/ft height 9'
Second Floor: 1374 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 4:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Family Room Keeping Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Garage Features
Detached Garage
Golf Cart Storage
Golf Cart Storage
Outdoor Spaces
Balcony
Covered Rear Porch
Wrap Around Porch
Covered Rear Porch
Wrap Around Porch
Rooms
Bedroom 2:
189 sq/ft width 13' 8" x depth 13' 10"
Bedroom 3:
166 sq/ft width 12' 2" x depth 13' 8"
Covered Front Porch:
687 sq/ft
Covered Morning Deck:
174 sq/ft width 15' x depth 12'
Covered Rear Porch:
476 sq/ft
Dining Room:
212 sq/ft width 15' 8" x depth 13' 6"
Family Room:
259 sq/ft width 15' 8" x depth 16' 6"
Kitchen:
225 sq/ft width 15' 8" x depth 14' 4"
Laundry Room:
76 sq/ft width 10' 4" x depth 7' 4"
Master Bedroom:
287 sq/ft width 15' 8" x depth 18' 4"
Mechanical Room:
178 sq/ft width 12' 2" x depth 14'
Nook:
156 sq/ft width 13' x depth 12'
Study:
259 sq/ft width 15' 8" x depth 16' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Questions? Call 1-888-447-1946
Plan Set
| 5 Copy Set : $1836.00 |
5 printed plan sets mailed to you. |
| CAD Set : $2076.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| PDF Set : $2076.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Right-Reading Reverse : $200.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets : $32.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $80.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $31.20 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $160.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
