PLAN 51-1063
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 71' 6"
Height : 24' 6"
Width : 52'
Area
Basement Living: 1395 sq/ft height 8'
First Floor: 1927 sq/ft height 9'
Garage: 551 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Exercise Room
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Outdoor Spaces
Covered Front Porch
Deck
Rooms
Bedroom 2:
197 sq/ft width 16' x depth 12' 4"
Bedroom 3:
201 sq/ft width 12' 4" x depth 16' 4"
Deck:
132 sq/ft width 11' x depth 12'
Dinette:
135 sq/ft width 15' x depth 9'
Dining Room:
155 sq/ft width 11' 8" x depth 13' 4"
Exercise Room:
133 sq/ft width 14' x depth 9' 6"
Family Room:
600 sq/ft width 17' 6" x depth 34' 4"
Foyer:
65 sq/ft width 7' 4" x depth 9'
Garage:
547 sq/ft width 21' 4" x depth 25' 8"
Great Room:
317 sq/ft width 19' 8" x depth 16' 2"
Kitchen:
177 sq/ft width 15' x depth 11' 10"
Master Suite:
204 sq/ft width 13' 4" x depth 15' 4"
Master Walk-In Closet:
97 sq/ft width 13' 4" x depth 7' 4"
Sun Room:
172 sq/ft width 15' x depth 11' 6"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

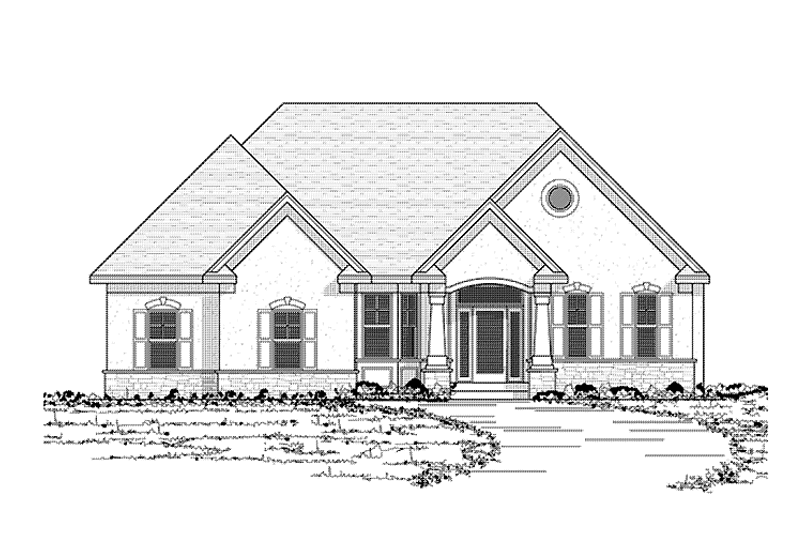

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

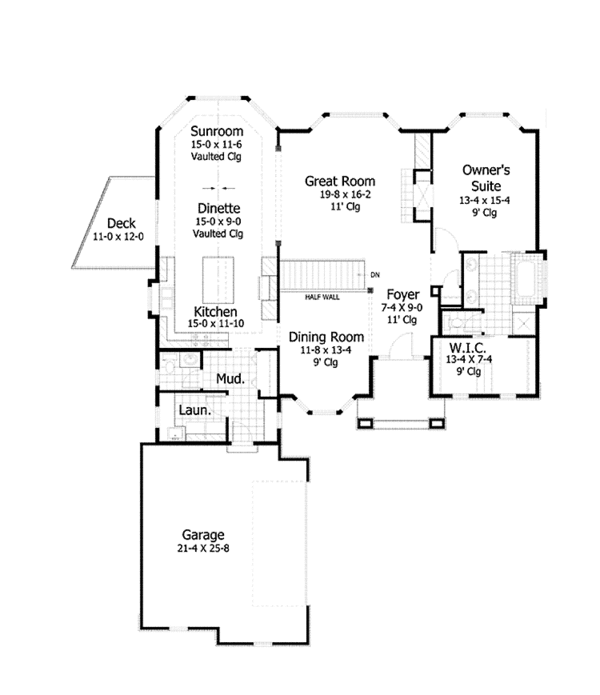

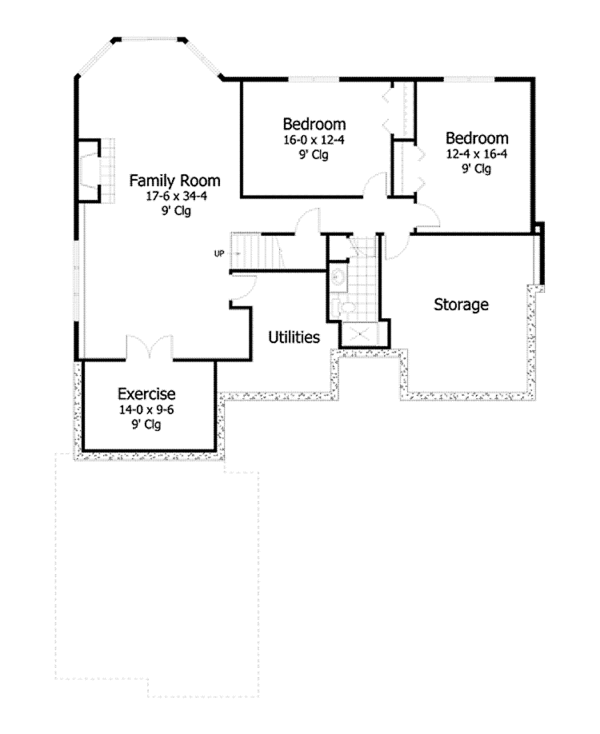

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1275.00
$1487.50
$1508.75
$1955.00
Foundation
$0.00
Framing
$0.00
$212.50
Additional Options
$212.50
$51.00
$140.25
$33.15
$140.25
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
