PLAN 51-1120
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 50'
Height : 34'
Width : 66' 2"
Area
First Floor: 1387 sq/ft height 9'
Garage: 720 sq/ft height 9'
Second Floor: 1184 sq/ft height 8'
Third Floor: 759 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Sunroom
Outdoor Spaces
Covered Front Porch
Deck
Screened Porch
Rooms
Bedroom 2:
132 sq/ft width 12' 10" x depth 10' 4"
Bedroom 3:
132 sq/ft width 12' 10" x depth 10' 4"
Bedroom 4:
160 sq/ft width 15' 6" x depth 10' 4"
Bedroom 5:
160 sq/ft width 15' 6" x depth 10' 4"
Dinette:
142 sq/ft width 13' 4" x depth 10' 8"
Dining Room:
196 sq/ft width 11' 4" x depth 17' 4"
Foyer:
109 sq/ft width 7' 8" x depth 14' 3"
Garage:
738 sq/ft width 31' 8" x depth 23' 4"
Great Room:
304 sq/ft width 17' 7" x depth 17' 4"
Kitchen:
147 sq/ft width 14' 1" x depth 10' 6"
Library:
117 sq/ft width 11' 4" x depth 10' 4"
Master Suite:
231 sq/ft width 13' 4" x depth 17' 4"
Master Walk-In Closet:
83 sq/ft width 6' 6" x depth 12' 10"
Porch - Screened:
159 sq/ft width 11' 8" x depth 13' 8"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

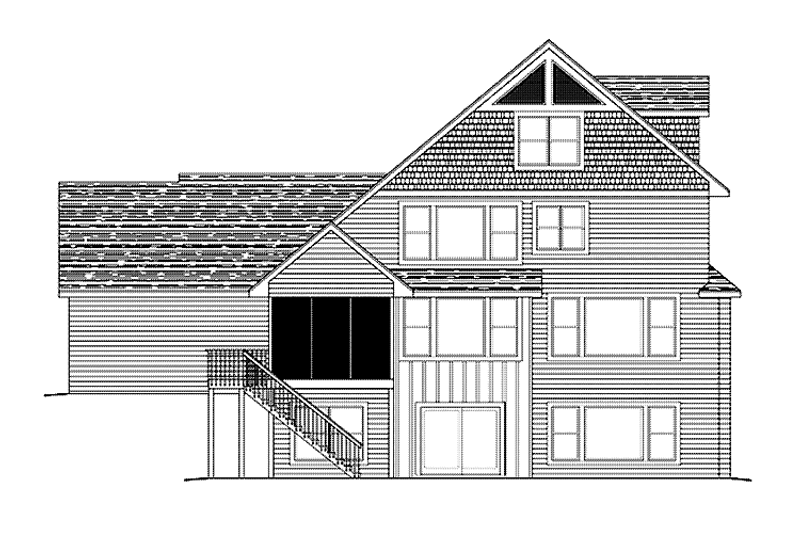

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

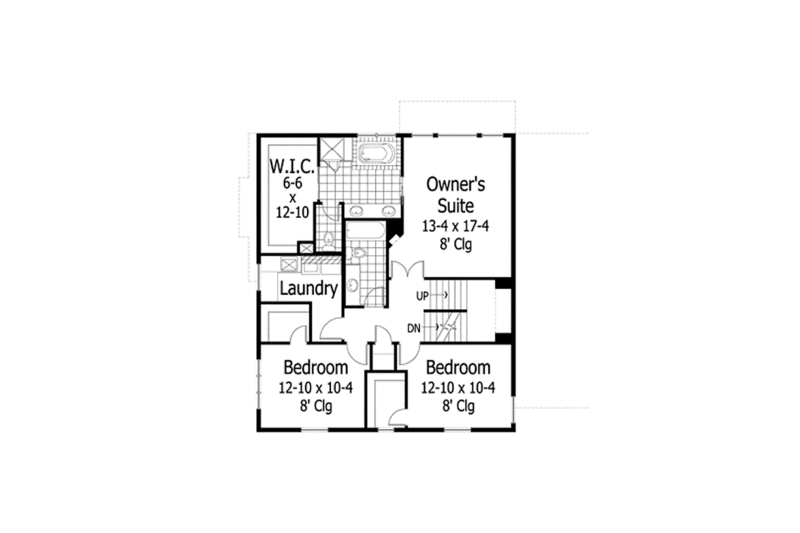

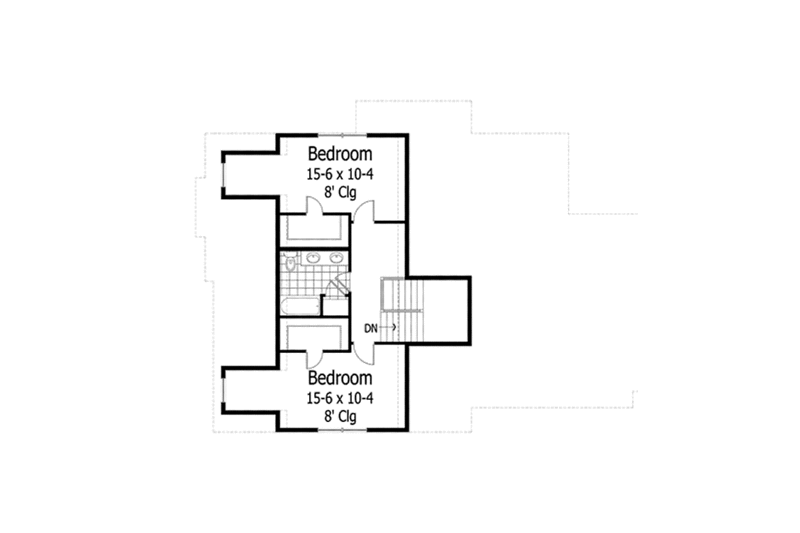

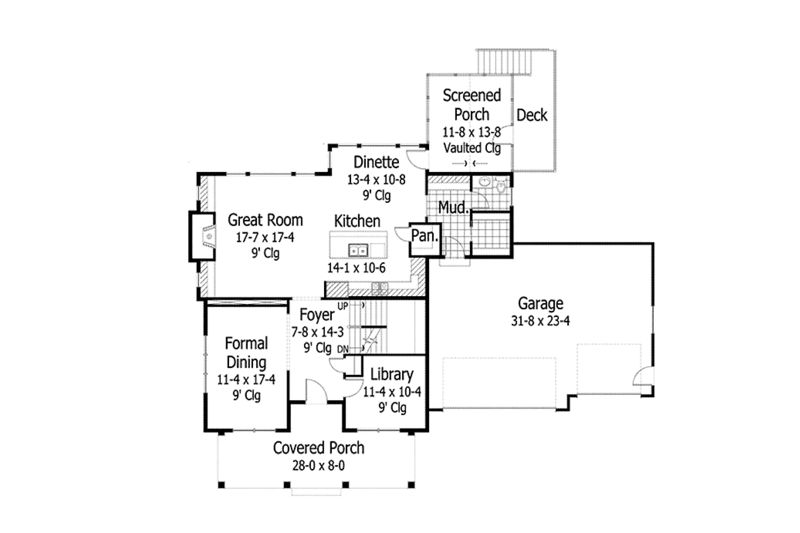

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1275.00
$1487.50
$1508.75
$1955.00
Foundation
$0.00
Framing
$0.00
$212.50
Additional Options
$212.50
$51.00
$140.25
$33.15
$140.25
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
