PLAN 429-418
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description

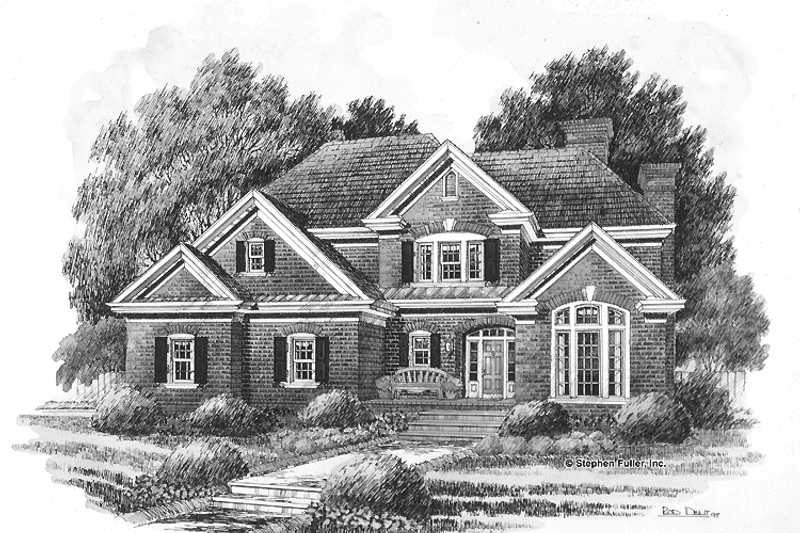

A brick exterior with pedimented gables provides a traditional welcome. An extremely compact plan allows this home to work on many narrow lots. The garage is set forward so it works well on property that slopes front to back. The exterior is elegantly proportioned. Inside the master suite, with its own study, is very large and allows great flexibility of use. This house is only 52 feet wide, yet it contains a fabulous master bedroom suite with lots of space. The guest room at the rear of the home with its own bath offers great privacy. This ia a relatively easy house to construct. Bay windows in the living and breakfast rooms let in added light and create aesthetic interest without huge expense.
Full Specs & Features
Height : 31'
Width : 52'
Second Floor: 1766 sq/ft height 8'
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Bathroom 2:
53 sq/ft width 10' 3" x depth 5' 3"
Bathroom 3:
102 sq/ft width 10' x depth 10' 3"
Bedroom 2:
181 sq/ft width 14' 3" x depth 12' 9"
Bedroom 2 Closet:
16 sq/ft width 2' 3" x depth 7' 3"
Bedroom 3:
217 sq/ft width 14' 3" x depth 15' 3"
Bedroom 3 Closet:
74 sq/ft width 10' 3" x depth 7' 3"
Bedroom 4:
188 sq/ft width 14' 3" x depth 13' 3"
Bedroom 4 Closet:
29 sq/ft width 2' 3" x depth 13' 3"
Breakfast Room:
146 sq/ft width 14' 3" x depth 10' 3"
Coat Closet:
8 sq/ft width 2' 3" x depth 3' 9"
Deck:
422 sq/ft width 32' 6" x depth 13'
Dining Room:
158 sq/ft width 15' 6" x depth 10' 3"
Family Room:
308 sq/ft width 20' 3" x depth 15' 3"
Foyer:
85 sq/ft width 7' 3" x depth 11' 9"
Garage:
528 sq/ft width 22' 3" x depth 23' 9"
Garage Storage:
24 sq/ft width 2' 3" x depth 10' 9"
Garage Storage:
24 sq/ft width 2' 3" x depth 10' 9"
Kitchen:
209 sq/ft width 15' 3" x depth 13' 9"
Laundry Room:
64 sq/ft width 10' 3" x depth 6' 3"
Living Room:
175 sq/ft width 13' 3" x depth 13' 3"
Master Bathroom:
185 sq/ft width 13' 3" x depth 14'
Master Bedroom:
318 sq/ft width 20' 3" x depth 15' 9"
Master Closet:
87 sq/ft width 8' 9" x depth 10'
Master Closet Two:
52 sq/ft width 6' 9" x depth 7' 9"
Pantry:
9 sq/ft width 4' 3" x depth 2' 3"
Powder Room:
30 sq/ft width 7' 3" x depth 4' 3"
Study:
143 sq/ft width 12' 9" x depth 11' 3"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

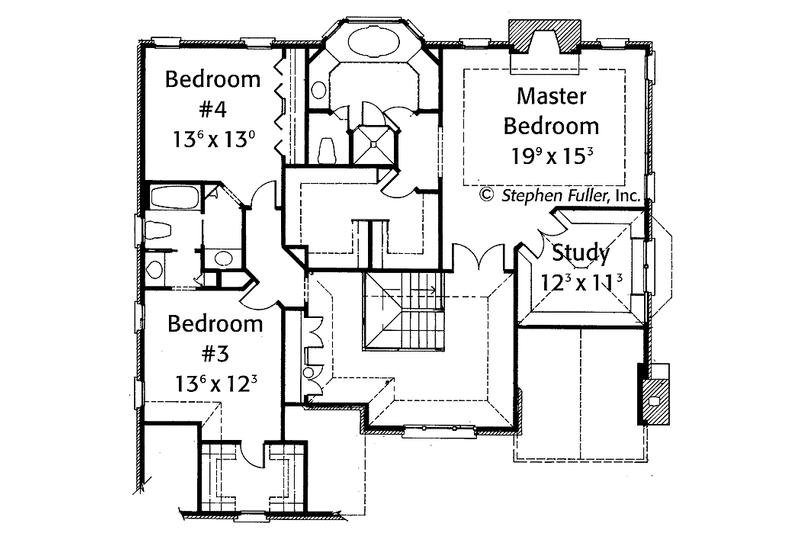

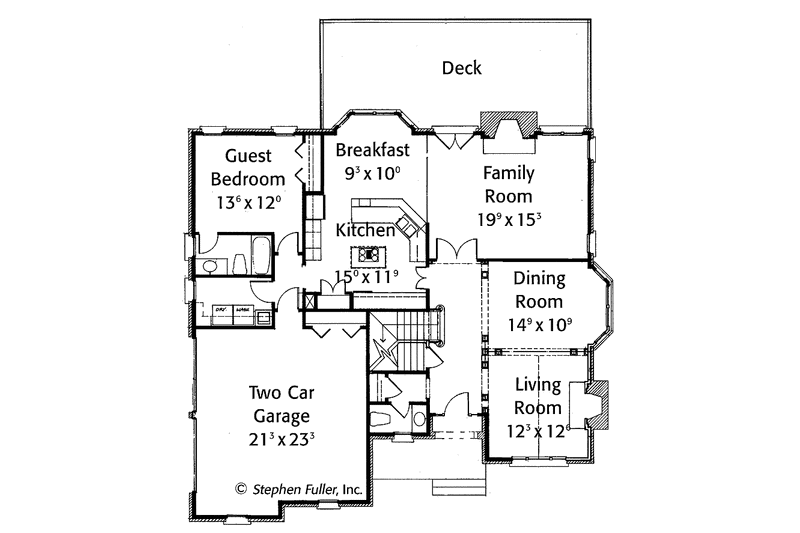

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
| 5 Copy Set
: $720.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $800.00 |
8 printed plan sets mailed to you. |
| PDF Set
: $1000.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $1000.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| Single Set
: $640.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Additional Construction Sets
: $52.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $80.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $31.20 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $160.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $68.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
