PLAN 51-1064
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 53' 6"
Height : 32' 6"
Width : 69'
Area
First Floor: 1716 sq/ft height 9'
Garage: 714 sq/ft
Second Floor: 1686 sq/ft height 8'
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Sunroom
Outdoor Spaces
Covered Front Porch
Deck
Screened Porch
Rooms
Bedroom 2:
173 sq/ft width 12' 10" x depth 13' 6"
Bedroom 3:
164 sq/ft width 13' 10" x depth 11' 11"
Bedroom 4:
162 sq/ft width 12' 2" x depth 13' 4"
Covered Porch:
40 sq/ft width 12' 10" x depth 3' 2"
Deck:
56 sq/ft width 7' x depth 8'
Dinette:
161 sq/ft width 13' 10" x depth 11' 8"
Dining Room:
160 sq/ft width 12' 2" x depth 13' 2"
Foyer:
105 sq/ft width 8' 7" x depth 12' 4"
Garage:
643 sq/ft width 20' 4" x depth 31' 8"
Great Room:
340 sq/ft width 20' x depth 17'
Kitchen:
148 sq/ft width 14' 4" x depth 10' 4"
Master Closet:
97 sq/ft width 8' 10" x depth 11'
Master Closet Two:
79 sq/ft width 6' 6" x depth 12' 3"
Master Suite:
231 sq/ft width 13' 4" x depth 17' 4"
Music Room:
132 sq/ft width 10' 9" x depth 12' 4"
Office:
182 sq/ft width 13' 6" x depth 13' 6"
Porch - Front:
139 sq/ft width 11' x depth 12' 8"
Porch - Screened:
252 sq/ft width 15' 4" x depth 16' 6"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

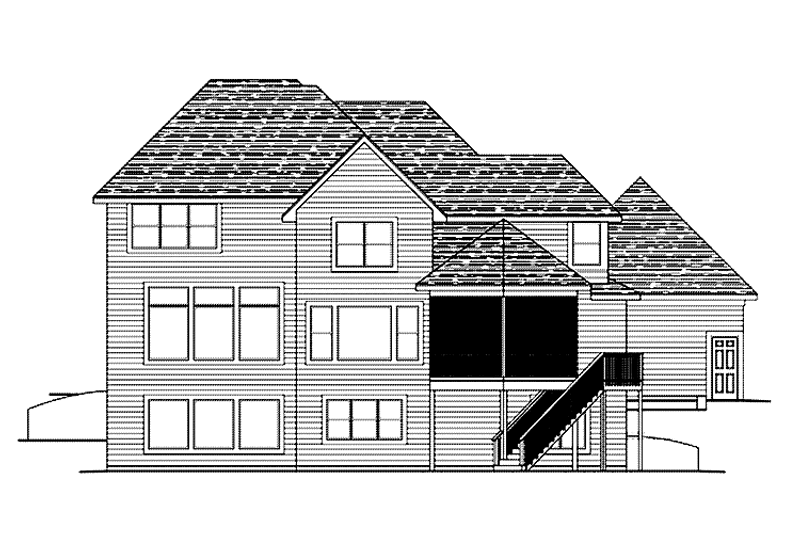

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.

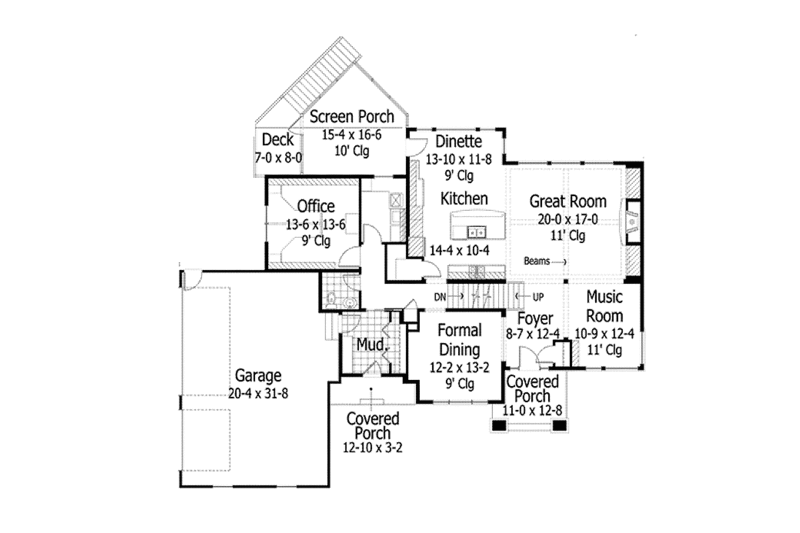

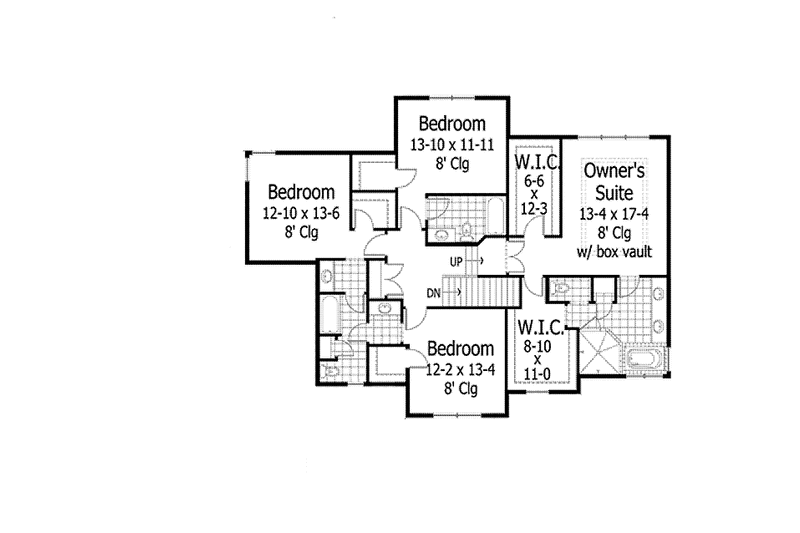

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Layout: Overhead view of roof showing ridges, valleys, and pitch.
- Note: These plans will not contain an electrical layout.
Plan Set
$1275.00
$1487.50
$1508.75
$1955.00
Foundation
$0.00
Framing
$0.00
$212.50
Additional Options
$212.50
$51.00
$140.25
$33.15
$140.25
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
