PLAN 429-101

Key Specs


3458
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

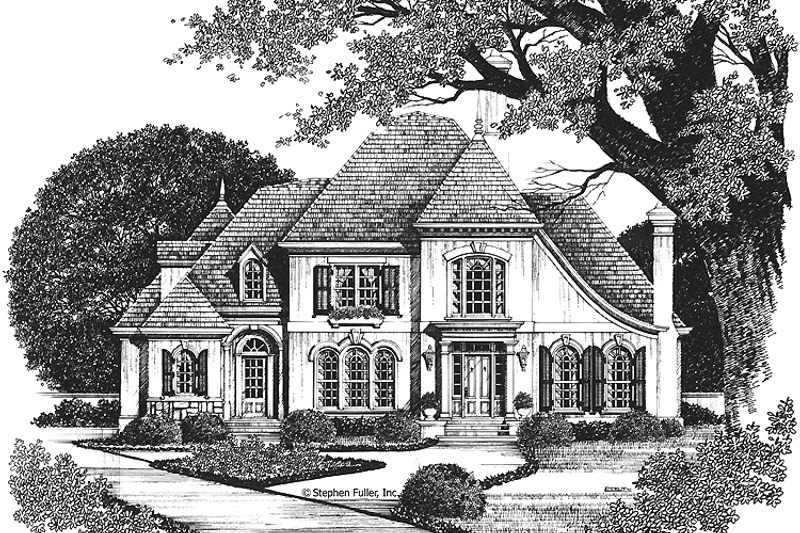

Quaint, yet as majestic as a country manor on the Rhine, this European-style stucco home enjoys the enchantment of arched windows to underscore its charm. The two-story foyer leads through French doors to the study with its own hearth and coffered ceiling. Coupled with this cozy sanctuary is the master suite with a tray ceiling and large accommodating bath. The large sunken great room is highlighted by a fireplace, built-in bookcases, lots of glass and easy access to a back stair and large gourmet kitchen. Three secondary bedrooms reside upstairs. One spacious upstairs bedroom gives guests the ultimate in convenience with a private bath and walk-in closet. This home is designed with a walkout basement foundation.

Floor Plans

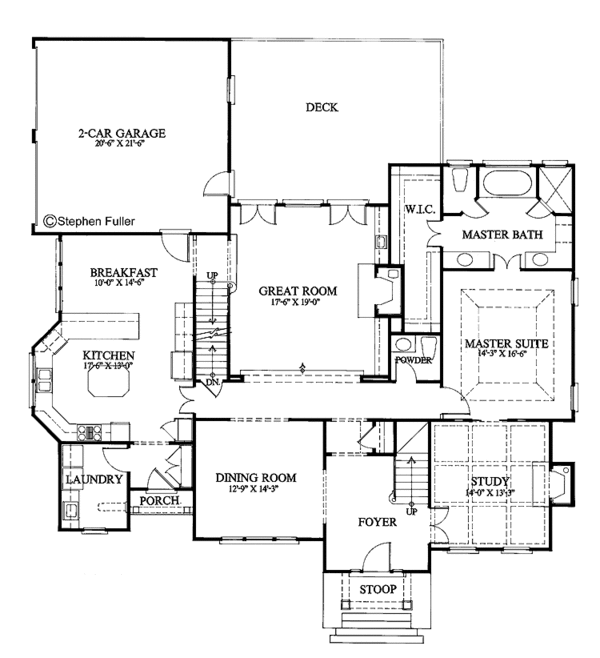

Floor Plan - Main Floor Plan
Reverse
Save European Floor Plan - Main Floor Plan Plan #429-101

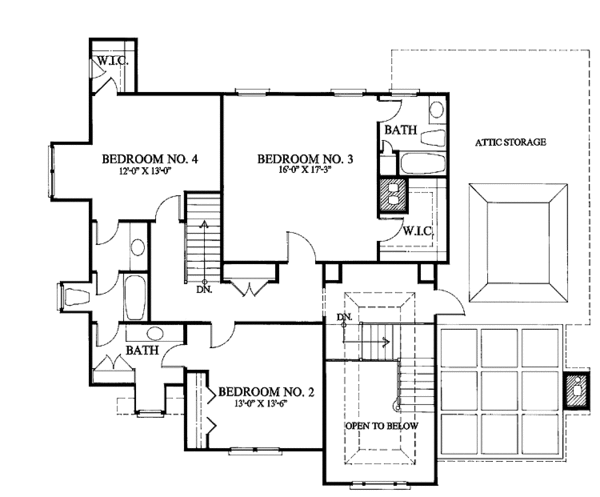

Floor Plan - Upper Floor Plan
Reverse
Save European Floor Plan - Upper Floor Plan Plan #429-101

Full Specs & Features


Dimension
Depth : 60'
Height : 33'
Width : 60' 6"
Area
First Floor: 2208 sq/ft
Second Floor: 1250 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 14:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Outdoor Spaces
Covered Front Porch
Deck
Rooms

Bedroom 2:

175 sq/ft width 13' x depth 13' 6"

Bedroom 3:

276 sq/ft width 16' x depth 17' 3"

Bedroom 4:

156 sq/ft width 12' x depth 13'

Breakfast Room:

145 sq/ft width 10' x depth 14' 6"

Dining Room:

181 sq/ft width 12' 9" x depth 14' 3"

Garage:

440 sq/ft width 20' 6" x depth 21' 6"

Gathering Room:

332 sq/ft width 17' 6" x depth 19'

Kitchen:

227 sq/ft width 17' 6" x depth 13'

Master Bedroom:

235 sq/ft width 14' 3" x depth 16' 6"

Master Closet:

114 sq/ft width 6' x depth 19'

Study:

185 sq/ft width 14' x depth 13' 3"

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$900.00
5 printed plan sets mailed to you.
8 Copy Set :
$1000.00
8 printed plan sets mailed to you.
PDF Set :
$1250.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1250.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set :
$800.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
$65.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$85.00
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
$85.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
