PLAN 117-862

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

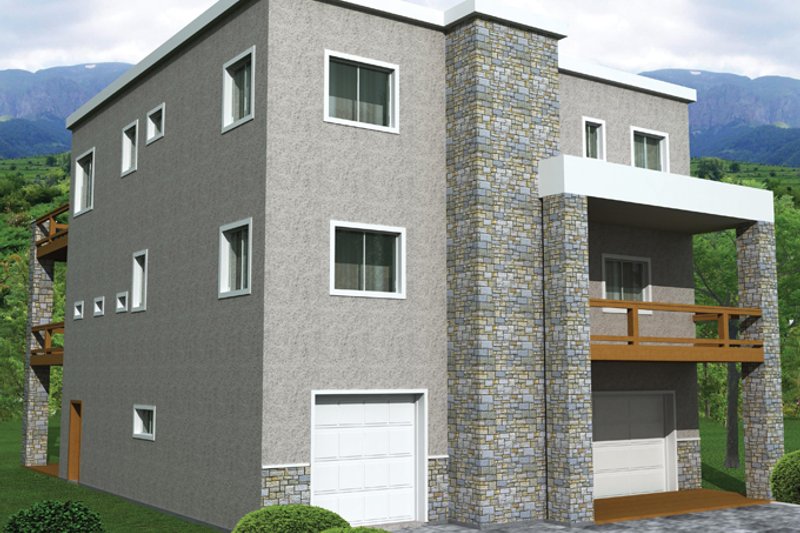

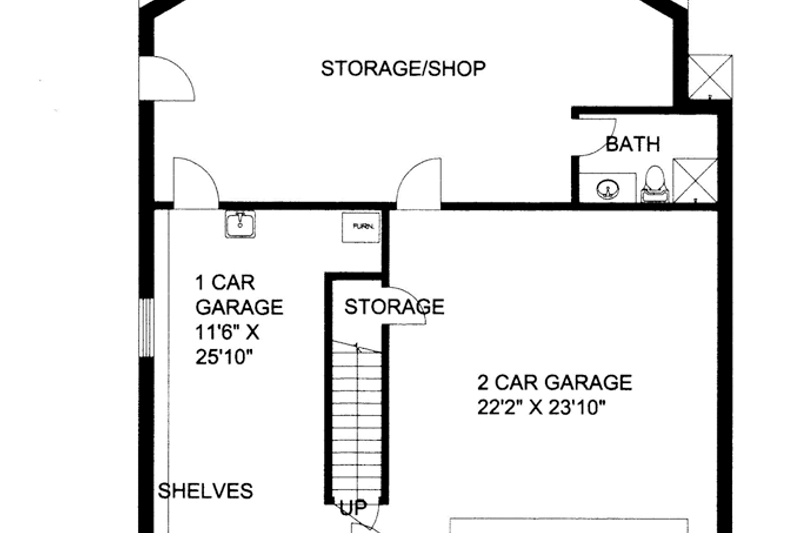

Ideal for a narrow lot, this home provides three levels of outdoor living and a sleek modern facade. On the bottom level, three garage bays open to a large storage/shop area that's complete with a full bath – great for rinsing off after working on a project. The main level holds the primary gathering rooms, which include the island kitchen and an office. A guest suite also sits here. Take the stairs or the elevator to the top level, where the master suite boasts a terrific bathroom and accesses the deck. You'll also find another bedroom and bath, a rec room, and the laundry space.

Floor Plans

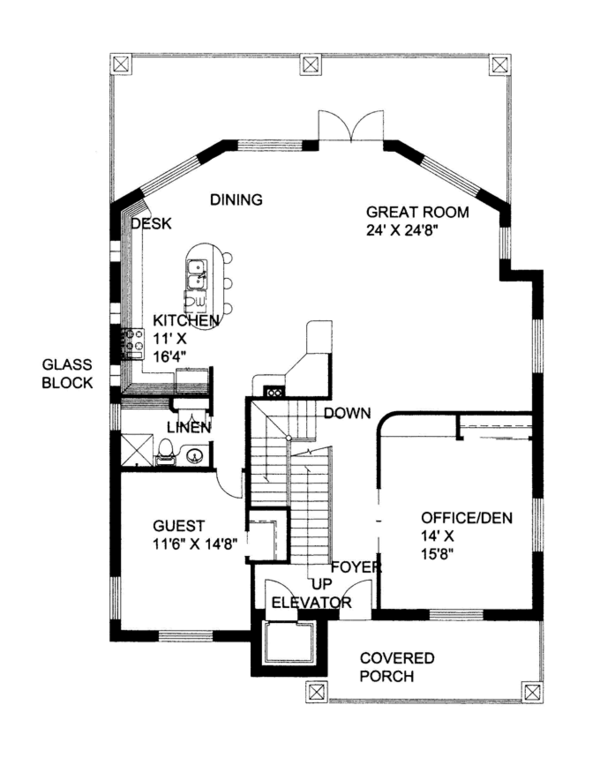

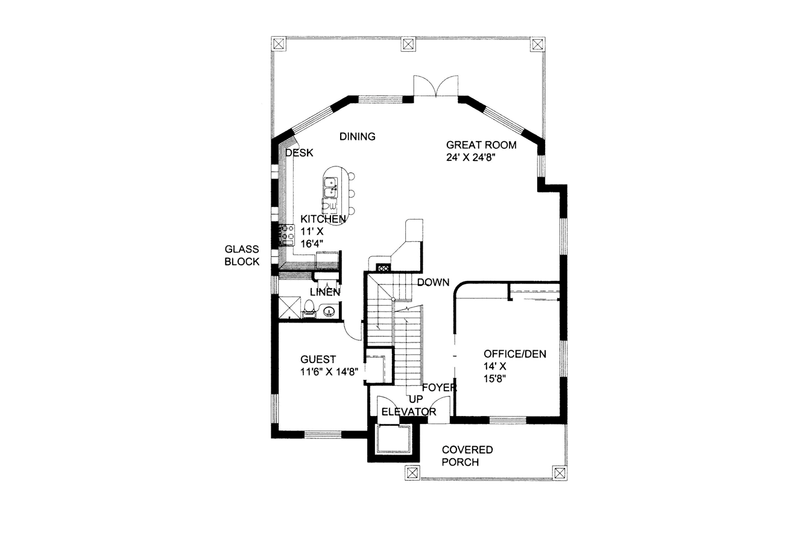

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #117-862

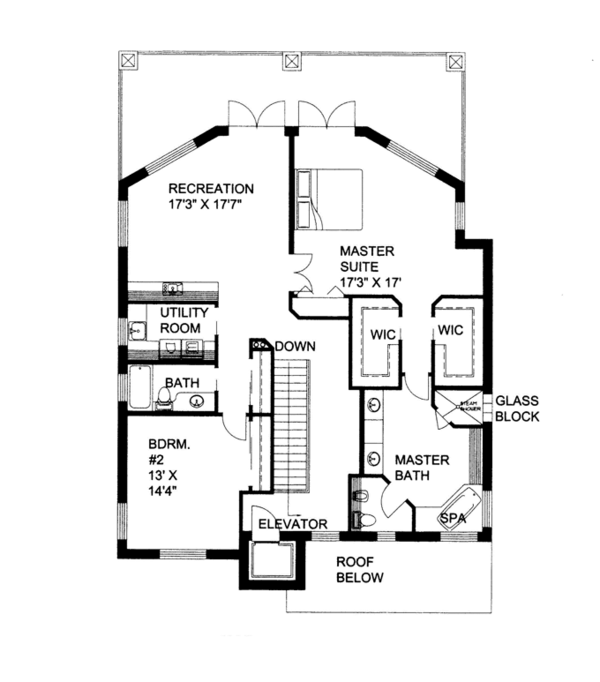

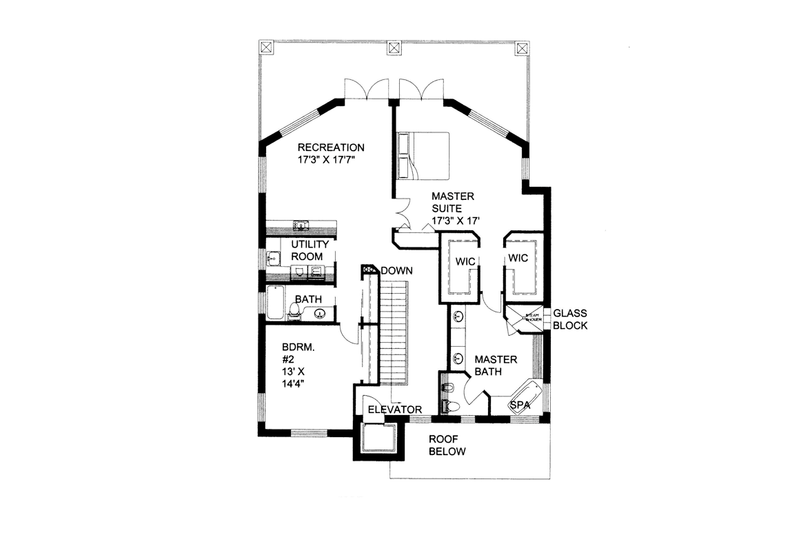

Floor Plan - Upper Floor Plan
Contemporary Floor Plan - Upper Floor Plan Plan #117-862

Full Specs & Features

Depth : 57' 7"
Height : 34' 7"
Width : 40'
First Floor: 1741 sq/ft height 10'
Garage: 1741 sq/ft
Second Floor: 1741 sq/ft height 10'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : ICF (Insulated Concrete Forms)
Bedroom Features
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Open Floor Plan
Upstairs Laundry
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Rear Porch
Wheelchair Adaptable

Bedroom 2:

width 13' x depth 14' 4"

Garage 1:

width 22' 2" x depth 23' 10"

Garage 2:

width 11' 6" x depth 25' 10"

Great Room:

width 24' x depth 24' 8"

Guest Room:

width 11' 6" x depth 14' 8"


width 11' x depth 16' 4"

Master Bedroom:

width 17' 3" x depth 17'


width 14' x depth 15' 8"

Rec. Room:

width 17' 3" x depth 17' 7"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

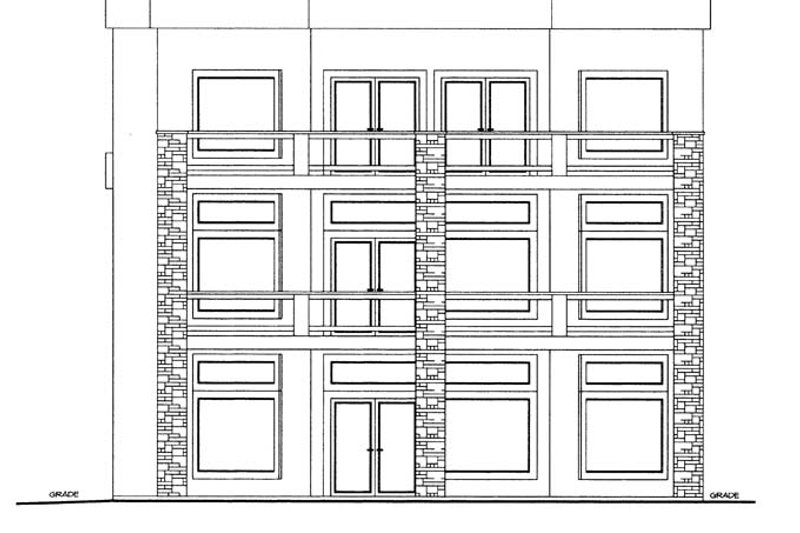

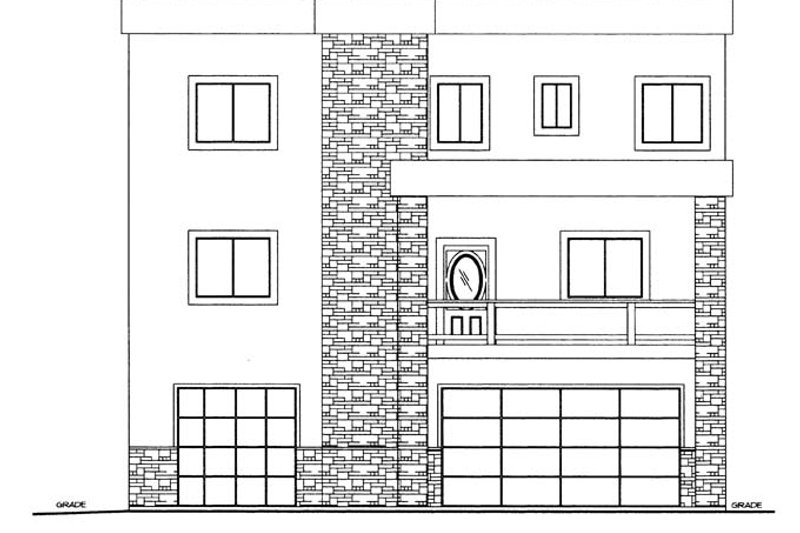

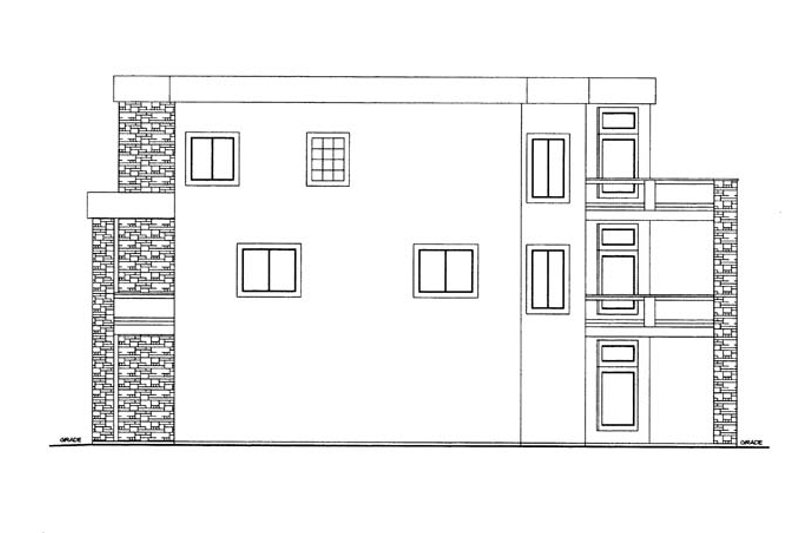

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set :
5 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.


Insulated Concrete Forms:
Insulated Concrete Forms

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
