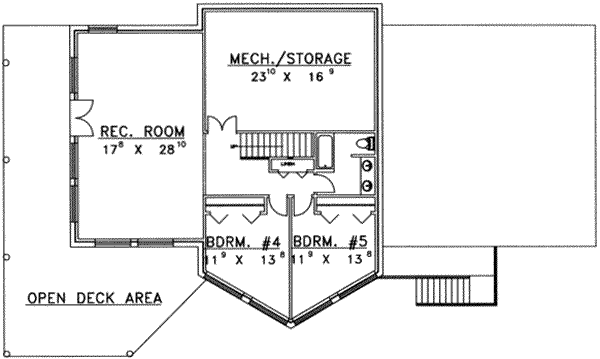

Home Plan - Log Floor Plan - Lower Floor Plan #117-271

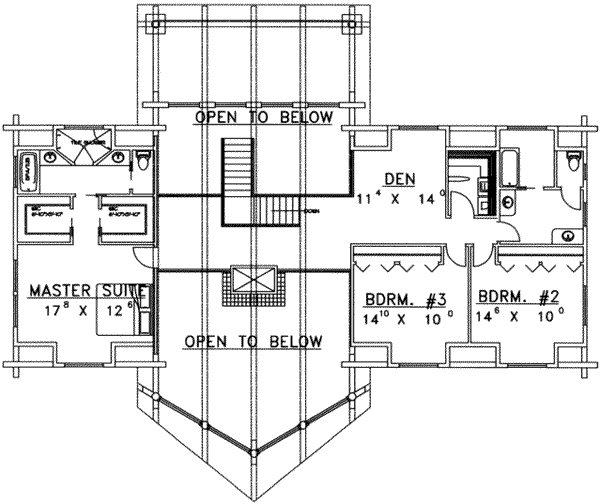

Home Plan - Log Floor Plan - Upper Floor Plan #117-271

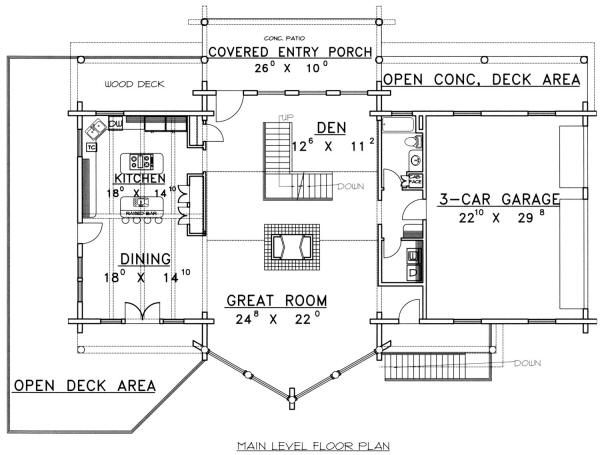

Home Plan - Log Floor Plan - Main Floor Plan #117-271

Jump to:
All (4)
Exterior (1)
Floor plans (3)

Get Personalized Help

Home > Style > Log

Key Specs

3492
sq ft

5
Beds

3.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$335.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1495.00 NOW $1270.75

You save $224.25 (15% savings)

Sale ends soon!

Also order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 117-271

Home > Style > Log

Key Specs

3492
sq ft

5
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This log design floor plan is 3492 sq ft and has 5 bedrooms and 3.5 bathrooms.

Floor Plans

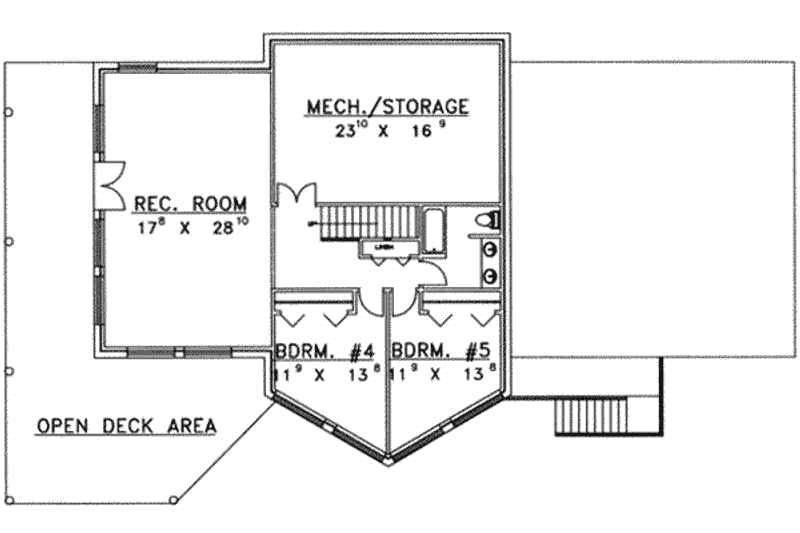

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

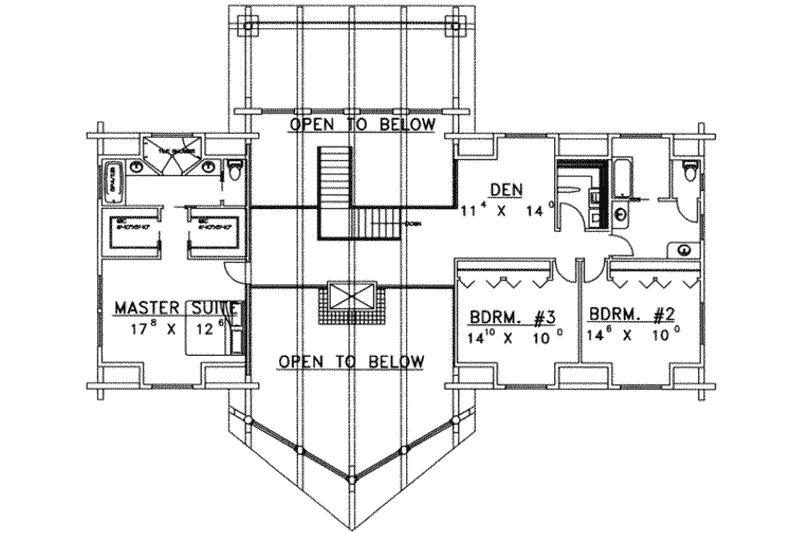

Floor Plan - Upper Floor

Reverse

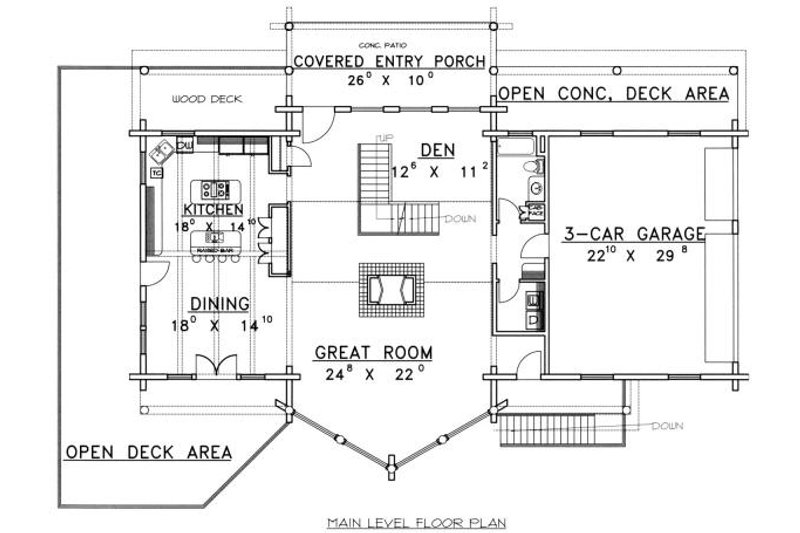

Floor Plan - Main Floor

Reverse

Full Specs & Features

Dimension

Depth : 54' 8"

Height : 32' 1"

Width : 83' 10"

Area

First Floor: 1846 sq/ft

Second Floor: 1646 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : Log

Bedroom Features

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Additional Room Features

Den Office Study Computer

Great Room Living Room

Hobby Rec Room Game Room

Loft

Storage Area

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces

Balcony

Covered Front Porch

Rooms

Bedroom 2:

145 sq/ft width 14' 6" x depth 10'

Bedroom 3:

148 sq/ft width 14' 10" x depth 10'

Bedroom 4:

160 sq/ft width 11' 9" x depth 13' 8"

Bedroom 5:

160 sq/ft width 11' 9" x depth 13' 8"

Covered Porch:

260 sq/ft width 26' x depth 10'

Den:

139 sq/ft width 12' 6" x depth 11' 2"

Dining Room:

266 sq/ft width 18' x depth 14' 10"

Garage:

677 sq/ft width 22' 10" x depth 29' 8"

Great Room:

542 sq/ft width 24' 8" x depth 22'

Kitchen:

266 sq/ft width 18' x depth 14' 10"

Master Suite:

220 sq/ft width 17' 8" x depth 12' 6"

Recreation Room:

509 sq/ft width 17' 8" x depth 28' 10"

Storage:

399 sq/ft width 23' 10" x depth 16' 9"

What's Included In This Plan Set

See a sample plan set

Foundation Plan(s): Footing locations, foundation details, etc.
Floor Plan(s): Layout of floor plan, window/door schedule, interior and exterior dimensions
Exterior Elevations: Exterior on all four sides, siding notes, roof pitches, garage door heights, etc.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): Cut-through view of home. Shows foundation, insulation, wall construction, ceiling heights, etc.
Electrical Plan(s): Lighting, switches, electrical outlet placement throughout home.
Detail Sheet(s): Additional structural details included in most log and ICF plans. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Construction Notes / Detail(s): Referencing the entirety of the project.
Framing Detail(s): Location of supporting walls and beams. Location/spacing of floor joists, floor framing details. Layout of roof, roof framing details, truss/rafter locations, connection details etc. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.

Questions? Call 1-888-447-1946

Plan Set

CAD Single Build:
$1270.75

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1270.75

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$1865.75

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$335.75

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
