PLAN 952-44

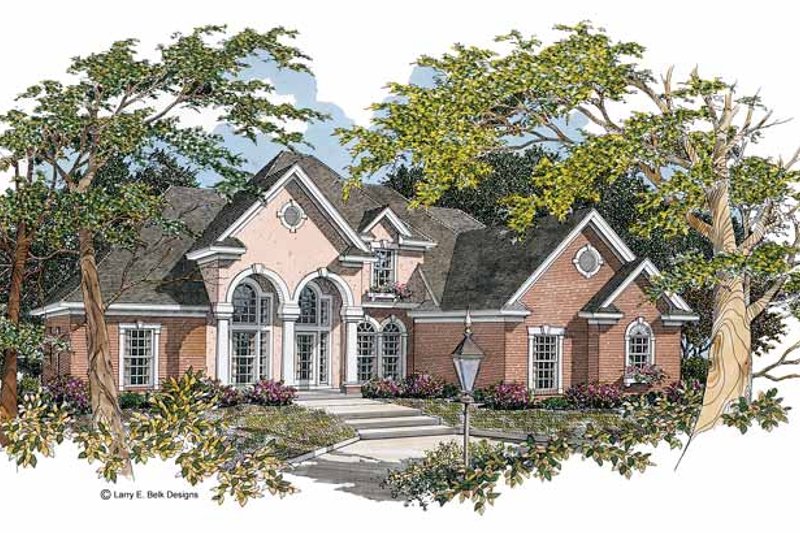

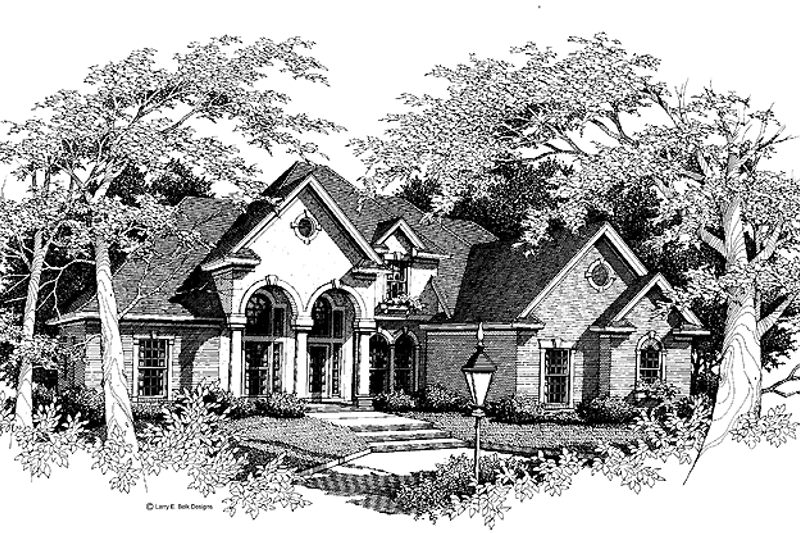

Mediterranean Exterior - Front Elevation Plan #952-44
Mediterranean Exterior - Front Elevation Plan #952-44

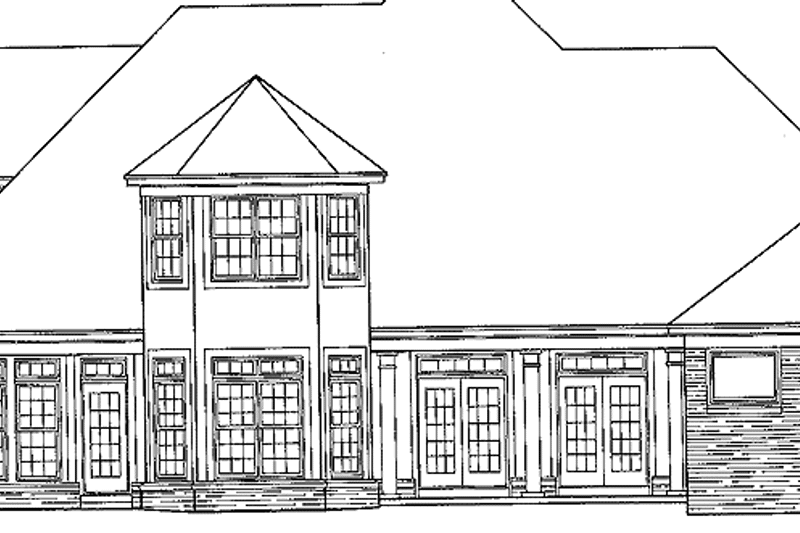

Mediterranean Exterior - Rear Elevation Plan #952-44

Select Plan Set Options

What's included?
Additional Construction Sets
$54.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$49.50
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $1386.00
You save $154.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 952-44

Key Specs


3494
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


A lovely double arch gives this European-style home a commanding presence. Once inside, a two-story foyer provides an open view directly through the formal living room to the rear grounds beyond. The spacious kitchen with a work island and the bayed breakfast area share space with the family room. The private master suite features dual sinks, twin walk-in closets, a corner garden tub, and a separate shower. A large game room completes this wonderful family home. Please specify basement, crawlspace, or slab foundation when ordering.

Full Specs & Features


Dimension
Depth : 74' 2"
Height : 31'
Width : 67' 8"
Area
Bonus: 320 sq/ft

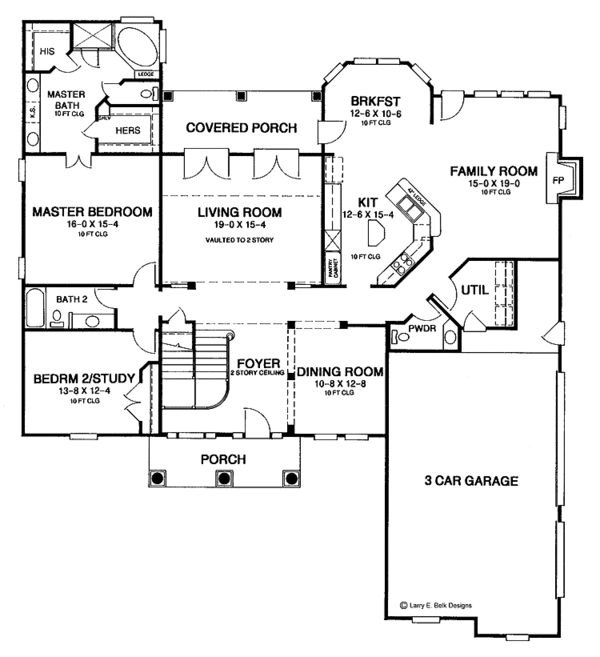

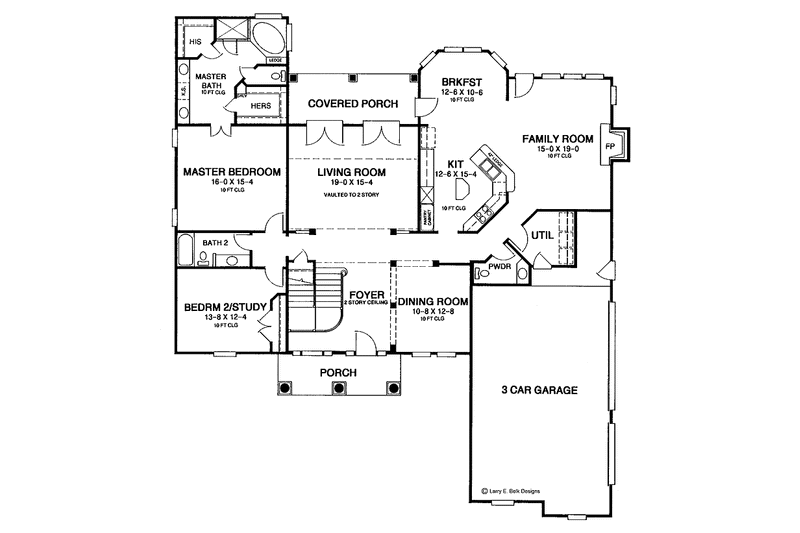

First Floor: 2469 sq/ft height 10'
Garage: 793 sq/ft

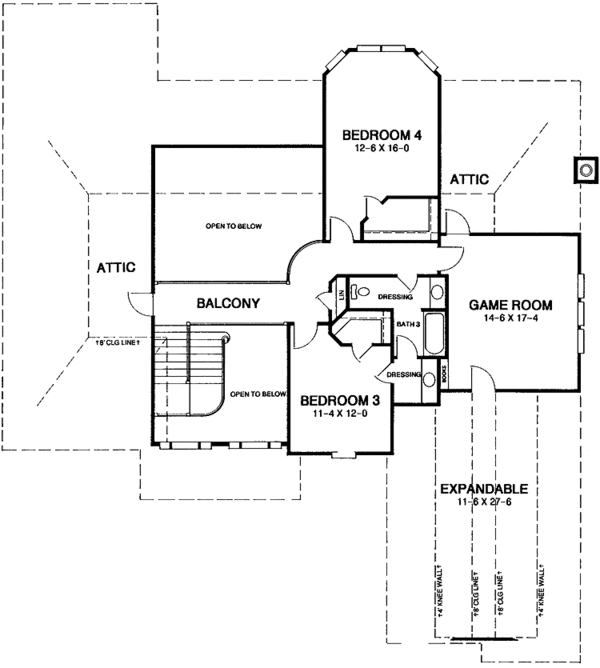

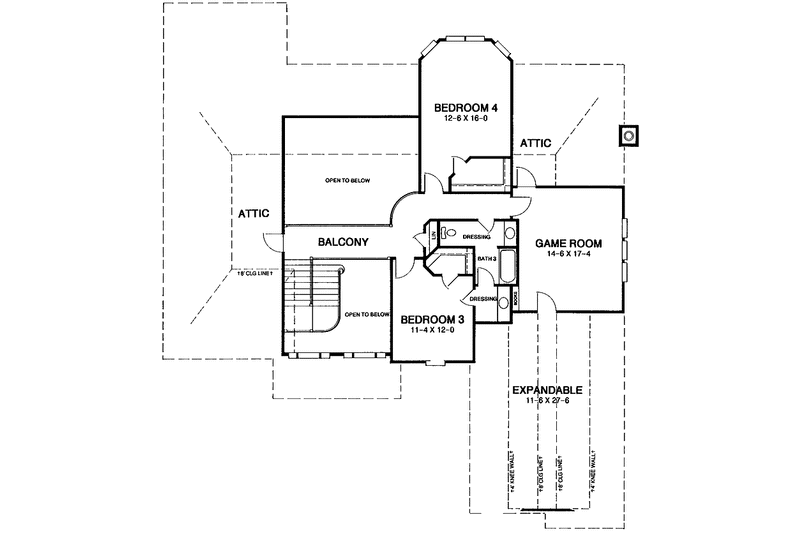

Second Floor: 1025 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
Rooms

Bedroom 2:

168 sq/ft width 13' 8" x depth 12' 4"

Bedroom 3:

135 sq/ft width 11' 4" x depth 12'

Bedroom 4:

195 sq/ft width 12' 6" x depth 15' 8"

Bonus Room - Finished:

316 sq/ft width 11' 6" x depth 27' 6"

Breakfast Room:

131 sq/ft width 12' 6" x depth 10' 6"

Foyer:

195 sq/ft width 13' x depth 15'

Game Room:

251 sq/ft width 14' 6" x depth 17' 4"

Garage:

645 sq/ft width 20' 6" x depth 31' 6"

Gathering Room:

285 sq/ft width 15' x depth 19'

Hall Bathroom:

54 sq/ft width 5' x depth 10' 10"

Kitchen:

191 sq/ft width 12' 6" x depth 15' 4"

Living Room:

291 sq/ft width 19' x depth 15' 4"

Master Bathroom:

240 sq/ft width 16' x depth 15'

Master Bedroom:

245 sq/ft width 16' x depth 15' 4"

Porch - Front:

99 sq/ft width 18' x depth 5' 6"

Porch - Rear:

126 sq/ft width 18' x depth 7'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
PDF Set :
$1386.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
$54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$76.50
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
$49.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
