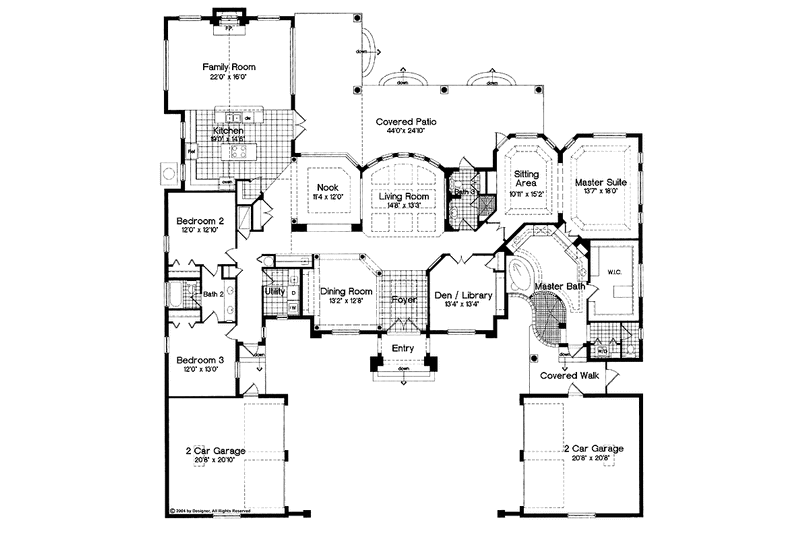

Does your family own a lot of cars? If so, this house is perfect for you. The two garages celebrate the passion for automobiles in a sensible way. The house itself breaks new design ground and addresses many concerns for the large family. A grand foyer leads to the invitingly large living room. Columns flank the formal dining room and help define the large nook across the hall. Family space abounds with the nearby gourmet kitchen, which overlooks the glass-walled family room. The master wing is lavishly designed with a sitting room, private sleeping chamber and ultra-deluxe bath. Two large secondary bedrooms reside on the opposite side of the home and share a full bath that includes dual lavs.
153 sq/ft width 12' 10" x depth 12'
156 sq/ft width 13' x depth 12'
135 sq/ft width 12' x depth 11' 4"
Den/Office or Bedroom 1:
177 sq/ft width 13' 4" x depth 13' 4"
166 sq/ft width 12' 8" x depth 13' 2"
352 sq/ft width 16' x depth 22'
275 sq/ft width 14' 6" x depth 19'
194 sq/ft width 13' 3" x depth 14' 8"
441 sq/ft width 18' x depth 24' 6"
All plans are drawn at ¼” scale or larger and include :
|5 Copy Set
|5 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
