PLAN 417-411

Home > Style > Traditional

Key Specs

3613
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor

Reverse

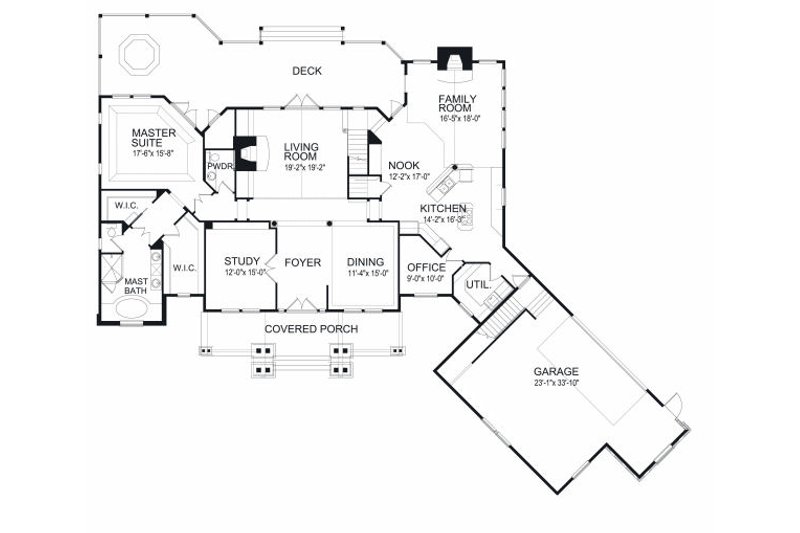

Home Plan - Traditional Floor Plan - Main Floor Plan #417-411

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

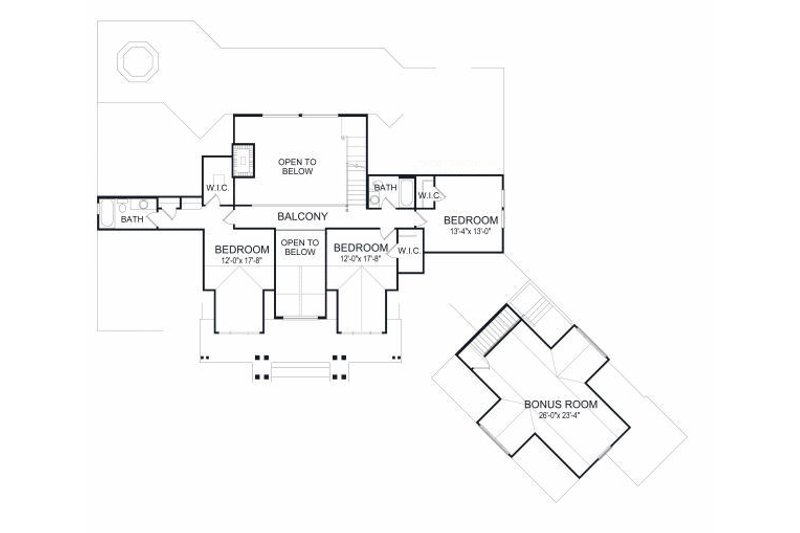

Home Plan - Traditional Floor Plan - Upper Floor Plan #417-411

Full Specs & Features

Dimension

Depth : 101' 7"

Height : 27'

Width : 76' 11"

Area

Bonus: 480 sq/ft

First Floor: 2896 sq/ft

Second Floor: 986 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : 2"x6"

Rooms

3rd BR Closet:

30 sq/ft width 4' 2" x depth 7' 4"

Bathroom 2:

50 sq/ft width 5' 2" x depth 9' 10"

Bathroom 3:

41 sq/ft width 5' 4" x depth 7' 10"

Bedroom 2:

256 sq/ft width 11' 11" x depth 21' 6"

Bedroom 2 Closet:

41 sq/ft width 5' 1" x depth 8' 1"

Bedroom 3:

208 sq/ft width 11' 11" x depth 17' 6"

Bedroom 3 Closet:

41 sq/ft width 5' 1" x depth 8' 1"

Bedroom 4:

188 sq/ft width 14' 7" x depth 12' 11"

Bedroom 4 Closet:

15 sq/ft width 2' 11" x depth 5' 5"

Bonus Room - Finished:

727 sq/ft width 24' x depth 30' 4"

Breakfast Room:

120 sq/ft width 10' 8" x depth 11' 4"

Den/Office or Bedroom 1:

88 sq/ft width 9' x depth 9' 10"

Dining Room:

175 sq/ft width 11' 11" x depth 14' 9"

Foyer:

119 sq/ft width 8' 4" x depth 14' 4"

Garage:

919 sq/ft width 24' x depth 38' 4"

Gathering Room:

285 sq/ft width 16' 1" x depth 17' 9"

Kitchen:

201 sq/ft width 12' 5" x depth 16' 3"

Laundry Room:

104 sq/ft width 10' 4" x depth 10' 1"

Living Room:

285 sq/ft width 19' x depth 15'

Master Bathroom:

125 sq/ft width 10' 3" x depth 12' 3"

Master Bedroom:

268 sq/ft width 17' 6" x depth 15' 4"

Master Closet:

47 sq/ft width 5' 1" x depth 9' 5"

Porch - Front:

237 sq/ft width 7' 3" x depth 32' 9"

Porch - Rear:

1024 sq/ft width 19' 8" x depth 52' 1"

Powder Room:

32 sq/ft width 4' 7" x depth 7' 1"

Study:

173 sq/ft width 11' 10" x depth 14' 8"

Walk-In Closet:

96 sq/ft width 6' 11" x depth 13' 11"
