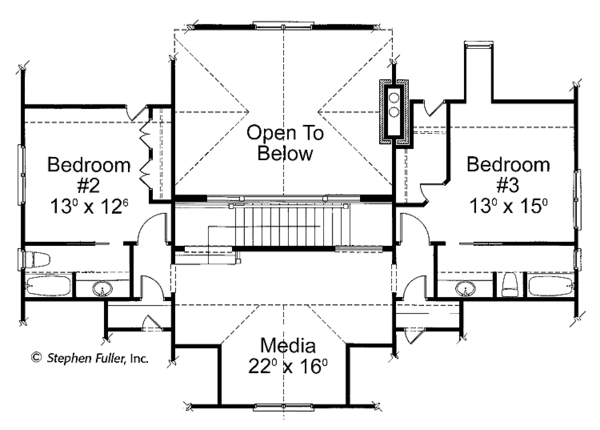

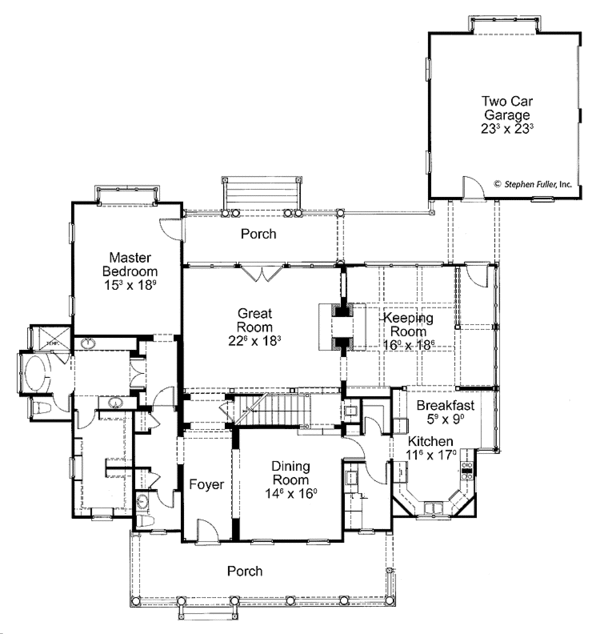

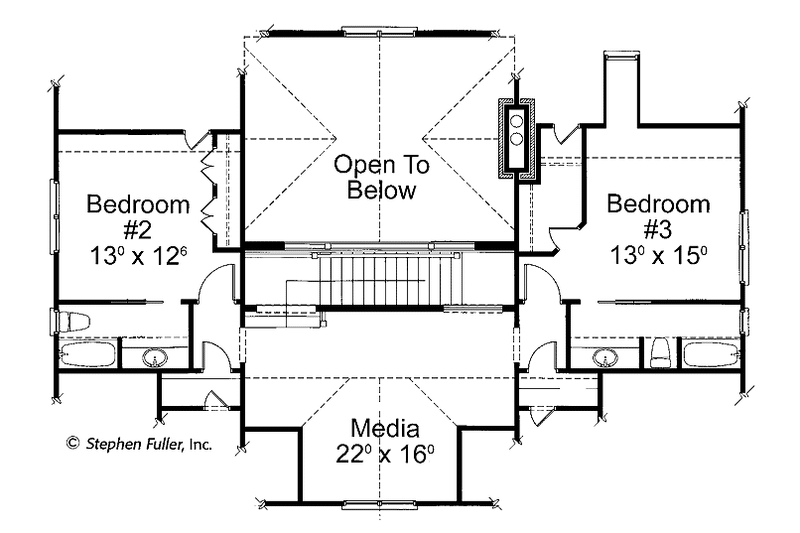

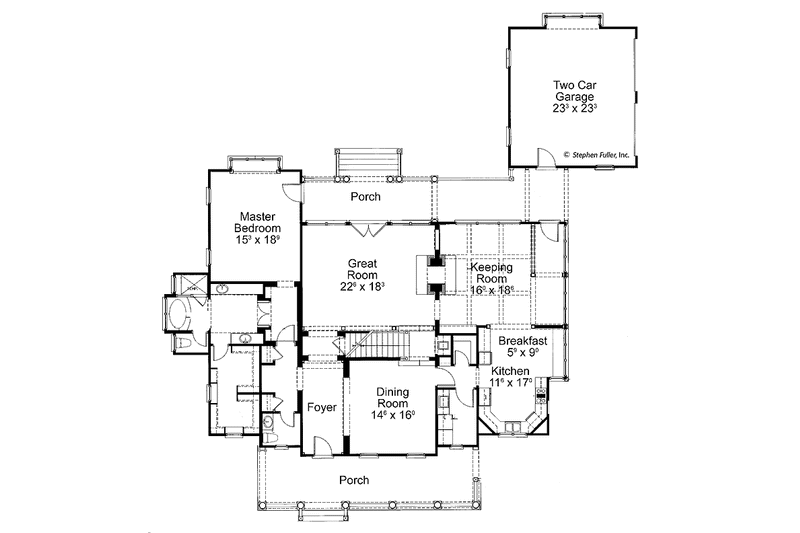

A wide and welcoming front porch topped by a balustrade gives this modest home a sense of grandeur. Inside, brilliant planning makes the most of every square foot. Rooms for entertaining flow gracefully into intimate spaces; the great room is linked to the less-formal keeping room by a great stone fireplace. The master suite is sequestered to the left of the plan, but still enjoys access to the rear porch. Upstairs, two private bedroom suites open to a common area.
162 sq/ft width 13' x depth 12' 6"
195 sq/ft width 13' x depth 15'
51 sq/ft width 5' 9" x depth 9'
232 sq/ft width 14' 6" x depth 16'
410 sq/ft width 22' 6" x depth 18' 3"
540 sq/ft width 23' 3" x depth 23' 3"
285 sq/ft width 15' 3" x depth 18' 9"
Porch - Front:
372 sq/ft width 37' 3" x depth 10'
Porch - Rear:
180 sq/ft width 22' 6" x depth 8'
All plans are drawn at ¼” scale or larger and include :
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|One printed set for bidding purposes only. Not a legal building set for construction.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
