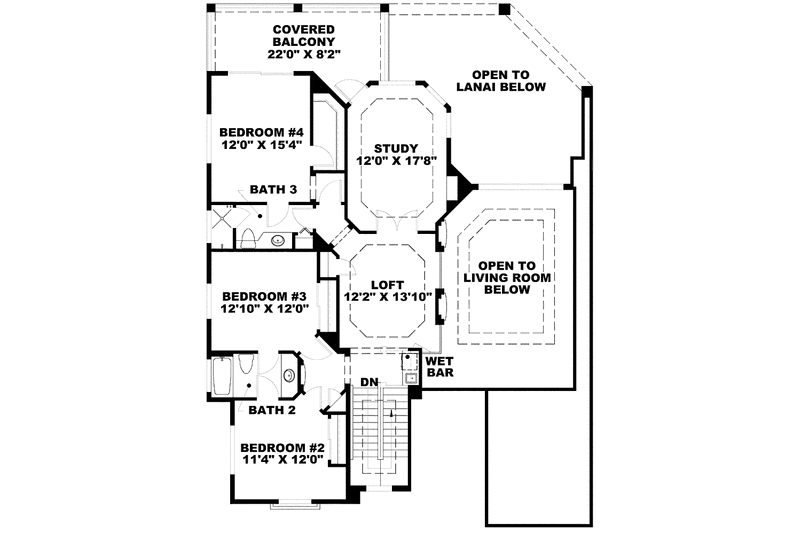

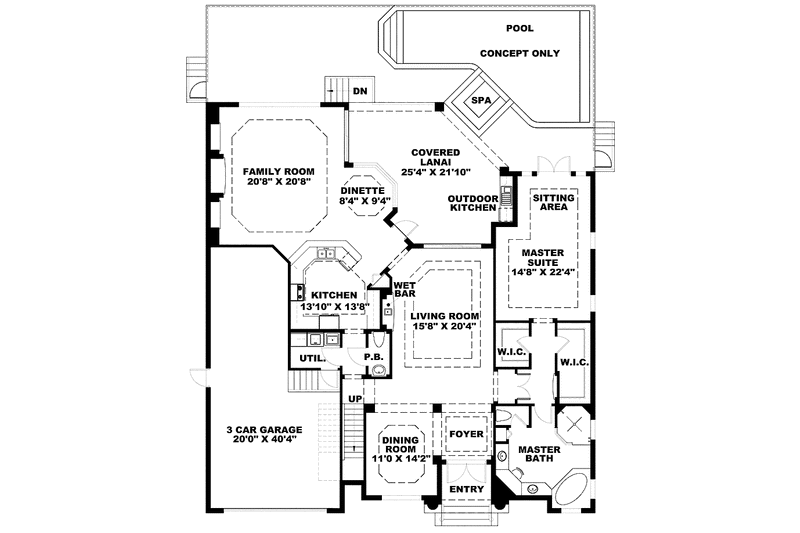

This house plan is a Mediterranean floor plan featuring 4 bedrooms and 3 1/2 bathrooms. It is offered as a two-story home with the master bedroom on the first floor. Enjoy a large family room with built-in entertainment center or sit on your covered lanai with outdoor kitchen. Upstairs you'll find a loft and study great for a play area or homework time. A covered balcony allows you to enjoy your view on warm summer evenings. A great house design for the smaller lot!
179 sq/ft width 22' x depth 8' 2"
135 sq/ft width 11' 4" x depth 12'
153 sq/ft width 12' 10" x depth 12'
183 sq/ft width 12' x depth 15' 4"
77 sq/ft width 8' 4" x depth 9' 4"
155 sq/ft width 11' x depth 14' 2"
427 sq/ft width 20' 8" x depth 20' 8"
806 sq/ft width 20' x depth 40' 4"
189 sq/ft width 13' 10" x depth 13' 8"
553 sq/ft width 25' 4" x depth 21' 10"
318 sq/ft width 15' 8" x depth 20' 4"
168 sq/ft width 12' 2" x depth 13' 10"
327 sq/ft width 14' 8" x depth 22' 4"
212 sq/ft width 12' x depth 17' 8"
