PLAN 1066-155
Photographs may show modified designs.
- Jump to:
- All (7)
- Floor plans (3)
Get Personalized Help
Key Specs
4070
sq ft
4
Beds
4
Baths
3
Floors
2
Garages
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Phone: 1-888-447-1946
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern
See our Terms & Conditions and Privacy Policy.
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2025 (limit 1)
with Code CTB2025 (limit 1)
This report will provide you cost estimates based on location and building materials.
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1066-155
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Plan Description
This contemporary design floor plan is 4070 sq ft and has 4 bedrooms and 4 bathrooms.
Floor Plans

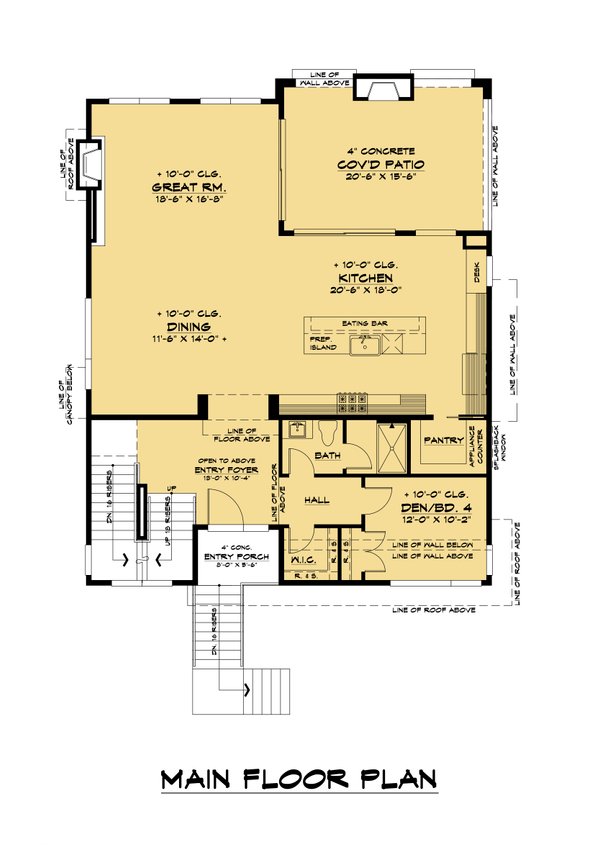

Floor Plan - Main Floor

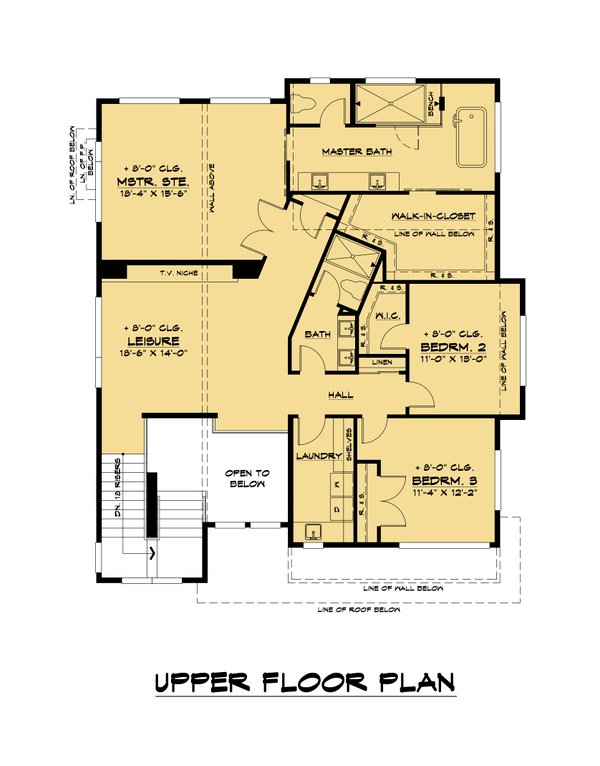

Floor Plan - Upper Floor

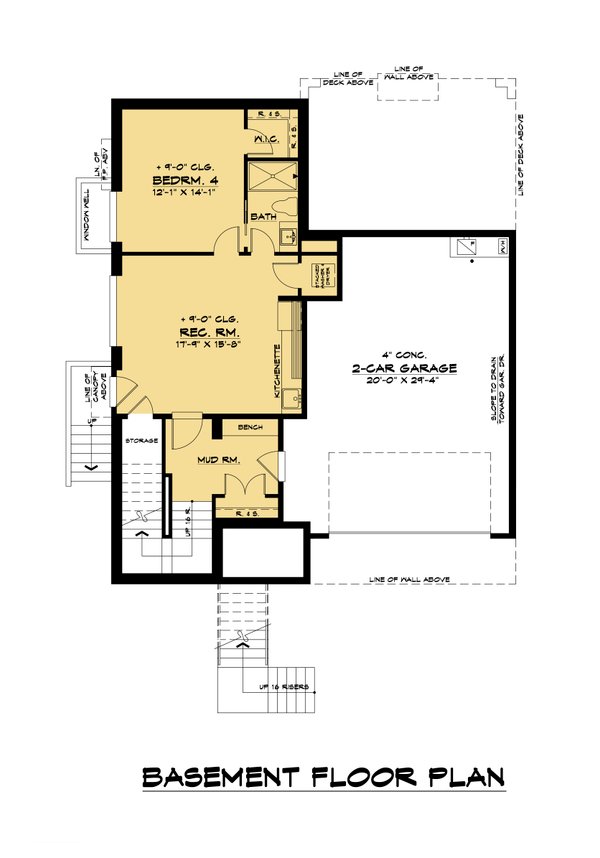

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 48'
Height : 28' 3"
Width : 40'
Area
Garage : 630 sq/ft
Lower Floor : 817 sq/ft
Main Floor : 1614 sq/ft
Patios : 309 sq/ft
Porch : 44 sq/ft
Upper Floor : 1639 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 9'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 1:2
Roof Framing : Truss
Secondary Pitch : 1 1/2:1
