PLAN 124-753
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.Plan Description
Updated Craftsman bungalow designed for construction on a view lot that slopes down at the rear. Vaulted ceilings add loft to front porch and deck, volume to foyer, den, great room, owners suite. Daylight basement has two naturally bright bedroom suites, plus a large family room.
Full Specs & Features
Dimension
Depth : 64'
Height : 26' 2"
Width : 85'
Height : 26' 2"
Width : 85'
Area

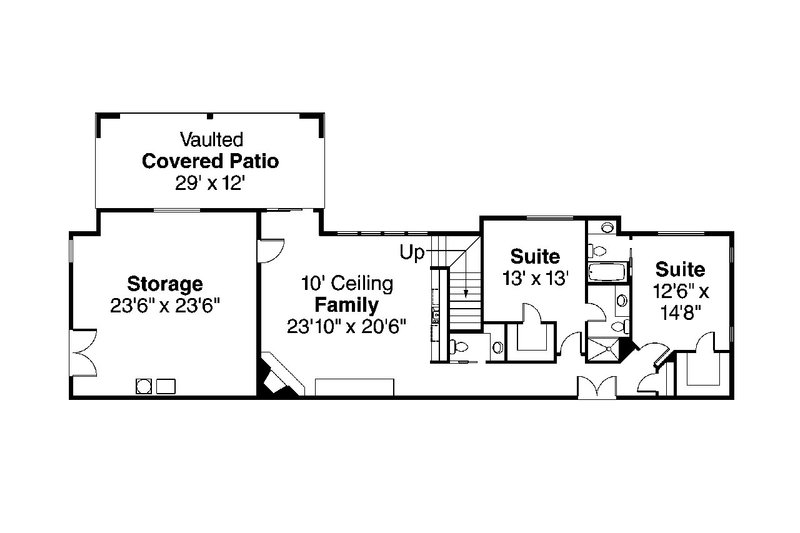

Basement Living: 1373 sq/ft height 9'
First Floor: 2717 sq/ft height 9'
Garage: 578 sq/ft height 9'
Storage: 735 sq/ft height 9'
First Floor: 2717 sq/ft height 9'
Garage: 578 sq/ft height 9'
Storage: 735 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss
Roof Framing : 2x6
Roof Load : 25
Roof Type : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone/Shingles
Framing : 2"x6"
Framing : 2"x6"
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Butler's Pantry
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Garage Features
Front Entry Garage
Oversized Garage
Oversized Garage
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Covered Rear Porch
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
Rooms
Deck:
348 sq/ft width 29' x depth 12'
Den:
219 sq/ft width 12' x depth 18' 4"
Family Room:
488 sq/ft width 23' 10" x depth 20' 6"
Garage:
704 sq/ft width 32' x depth 22'
Great Room:
734 sq/ft width 31' 6" x depth 23' 4"
Guest Suite 1:
169 sq/ft width 13' x depth 13'
Guest Suite 2:
183 sq/ft width 12' 6" x depth 14' 8"
Master Suite:
272 sq/ft width 17' x depth 16'
Patio:
348 sq/ft width 29' x depth 12'
Storage:
552 sq/ft width 23' 6" x depth 23' 6"
What's Included In This Plan Set
Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

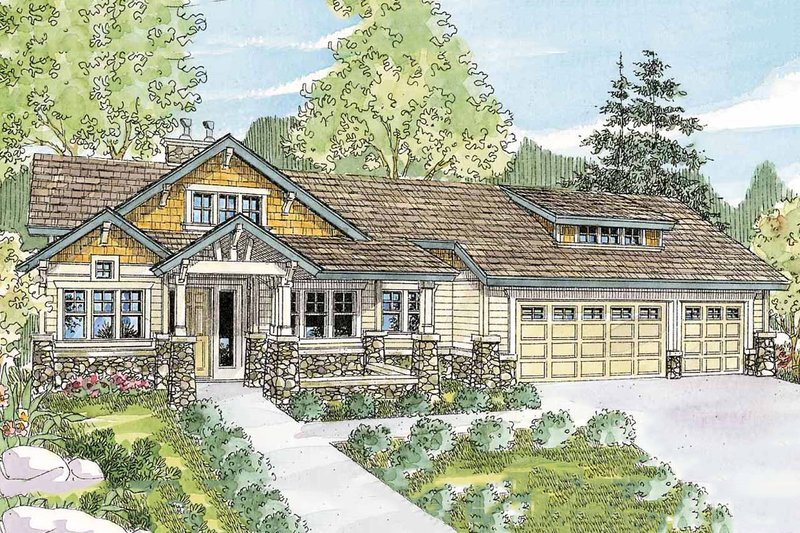

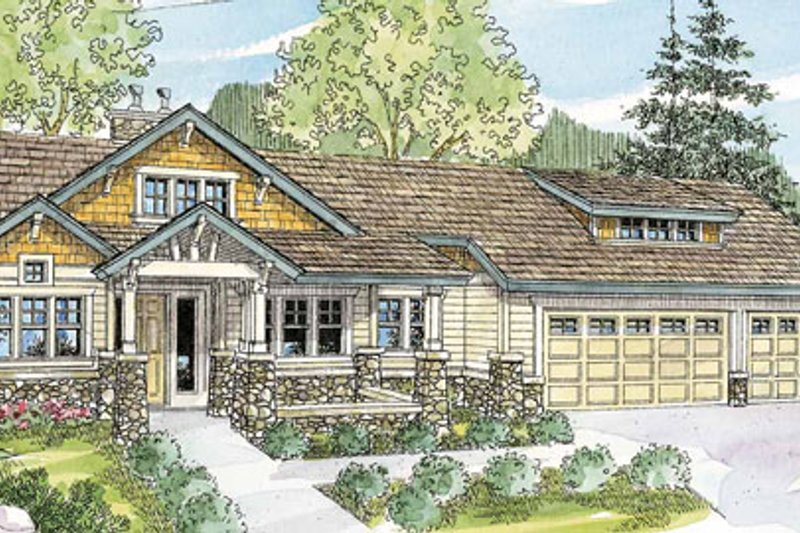

- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

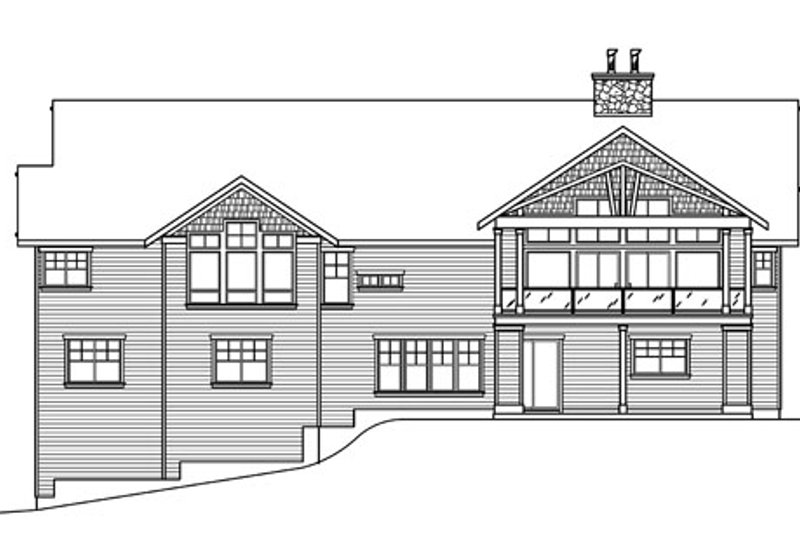

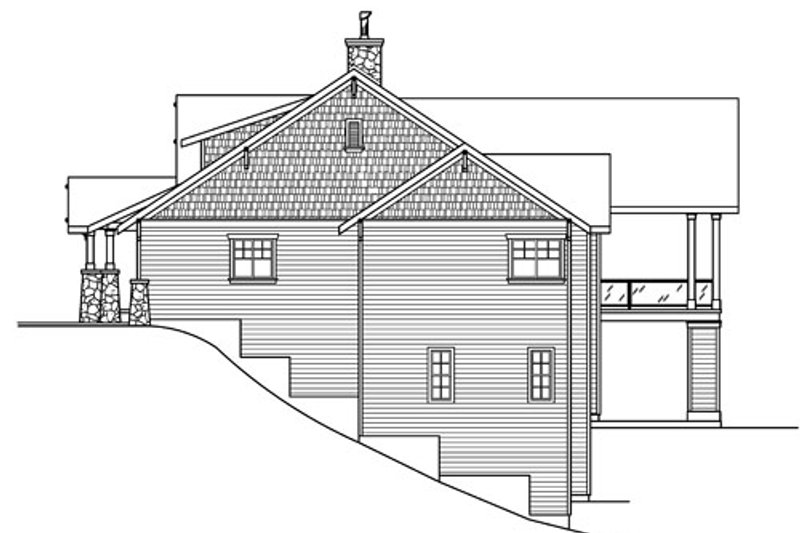

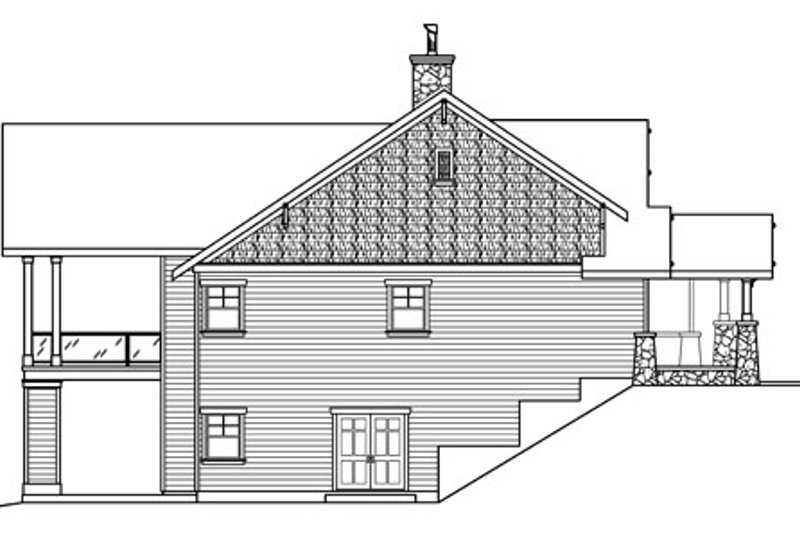

- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

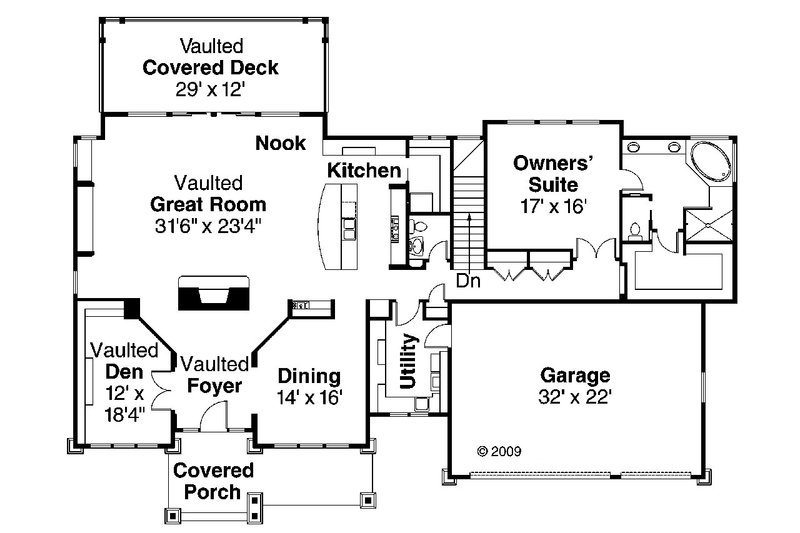

- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
