Plan Description


The handsome exterior of this New American home gives way to an interior that features defined formal areas within an open, casual space. A rear covered patio grants four separate entrances and expands the home’s livability. The spacious master suite is secluded on the first floor for privacy. Three additional family bedrooms and bonus space over the three-car garage provide plenty of room to grow.

Full Specs & Features


Dimension

Depth : 65' 8"

Height : 29'

Width : 76'

Area

Bonus: 373 sq/ft

First Floor: 2677 sq/ft

Garage: 734 sq/ft

Patio: 310 sq/ft

Porch: 200 sq/ft

Second Floor: 1042 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick/Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Loft

Master Sitting Area

Open Floor Plan

Unfinished Future Space

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Outdoor Kitchen Grill

Rooms

Kitchen:

237 sq/ft width 15' 10" x depth 15'

Laundry Room:

61 sq/ft width 6' x depth 10' 4"

Master Bathroom:

255 sq/ft width 17' x depth 15'

Nook:

100 sq/ft width 10' x depth 10'

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

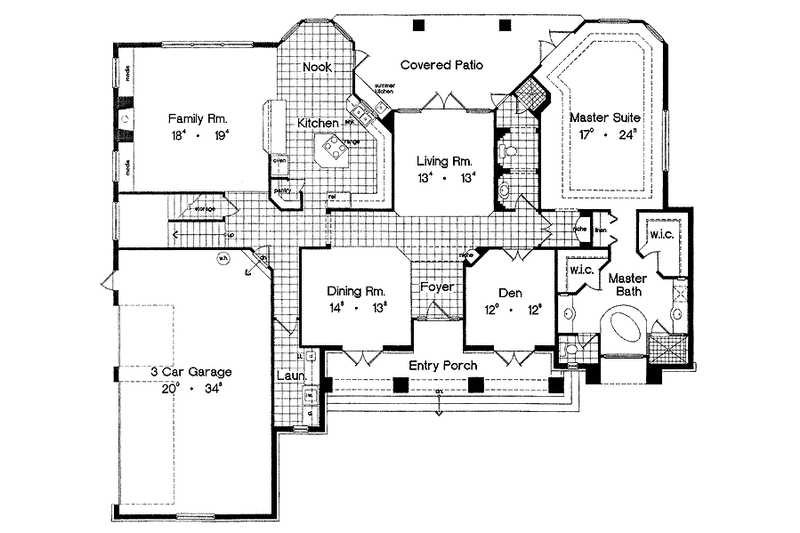

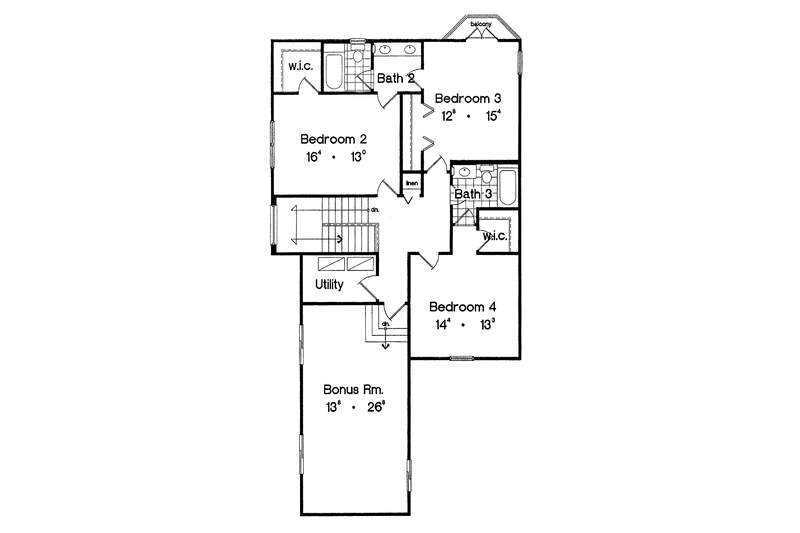

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$1600.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1800.00
5 printed plan sets mailed to you.
5 Copy and PDF Set:
$1950.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build:
$3200.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$800.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00
Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets:
$30.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
