PLAN 48-617

Photographs may show modified designs.

Home Plan - European Exterior - Front Elevation Plan #48-617

Home Plan - European Exterior - Other Elevation Plan #48-617

Home Plan - European Exterior - Rear Elevation Plan #48-617

Home / Style / European

Key Specs

4213
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$225.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$2323.00

Also order by phone: 1-888-447-1946

Wow! Cost to Build Reports Only $4.99 with Code CTB2023 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-888-447-1946

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-888-447-1946

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 48-617

Home / Style / European

Key Specs

4213
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Floor Plans

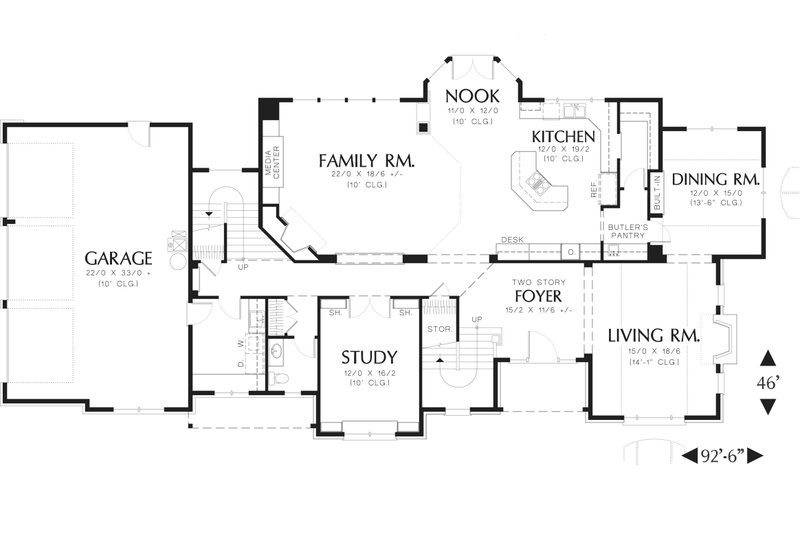

Floor Plan - Main Floor

Reverse

Home Plan - European Floor Plan - Main Floor Plan #48-617

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Home Plan - European Floor Plan - Upper Floor Plan #48-617

Full Specs & Features

Dimension

Depth : 46'

Height : 37'

Width : 92' 6"

Area

Bonus: 353 sq/ft

First Floor: 2451 sq/ft

Second Floor: 1762 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : stick

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : 2x6

Bedroom Features

Main Floor Bedrooms

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Eating Bar

Kitchen Island

Additional Room Features

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Mud Room

Play Flex Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Rear Porch

Rooms

Bedroom 2:

168 sq/ft width 11' 4" x depth 14' 10"

Bedroom 3:

165 sq/ft width 12' x depth 13' 10"

Bedroom 4:

158 sq/ft width 12' x depth 13' 2"

Bonus Room - Finished:

336 sq/ft width 21' x depth 16'

Breakfast Room:

132 sq/ft width 11' x depth 12'

Dining Room:

180 sq/ft width 12' x depth 15'

Foyer:

174 sq/ft width 15' 2" x depth 11' 6"

Garage:

726 sq/ft width 22' x depth 33'

Gathering Room:

407 sq/ft width 22' x depth 18' 6"

Kitchen:

230 sq/ft width 12' x depth 19' 2"

Living Room:

294 sq/ft width 16' x depth 18' 5"

Master Bedroom:

325 sq/ft width 17' x depth 19' 2"

Study:

194 sq/ft width 12' x depth 16' 2"

What's Included In This Plan Set

See a sample plan set

Exterior Elevations

In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan

The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations. If you choose the optional Slab foundation, the slab foundation will not be reflected in the plan sections.

Floor Plan(s)

Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floorplans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections

Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

Roof Plan

Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s)

Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending the requirements of your building department — these are usually done locally.

Questions? Call 1-888-447-1946

Plan Set

PDF Set:
$2323.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$2523.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$2573.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$4646.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Unlimited Build:
$4646.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$588.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$225.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$100.00

Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
