PLAN 310-1260
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Phone: 1-888-447-1946
See our Terms & Conditions and Privacy Policy.
PLAN 310-1260
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.
Full Specs & Features
Height : 36'
Width : 137' 5"

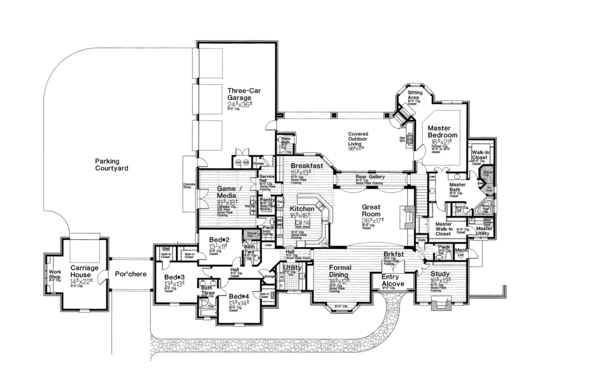

First Floor: 4291 sq/ft
Garage: 907 sq/ft
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Open Floor Plan
Unfinished Future Space
Vaulted / Cathedral Ceilings
Workshop
Rear Entry Garage
Side Entry Garage
Covered Rear Porch
Grill Deck Sundeck
Outdoor Fireplace
Bedroom 2:
width 13' 7" x depth 11' 3"
Bedroom 2 closet:
27 sq/ft width 6' x depth 4' 6"
Bedroom 2 closet:
width 6' x depth 5'
Bedroom 3:
width 13' x depth 13'
Bedroom 3 closet:
27 sq/ft width 6' x depth 4' 6"
Bedroom 3 closet:
width 6' 6" x depth 5'
Bedroom 4:
width 13' 5" x depth 14'
Bedroom 4 closet:
width 4' 6" x depth 6' 6"

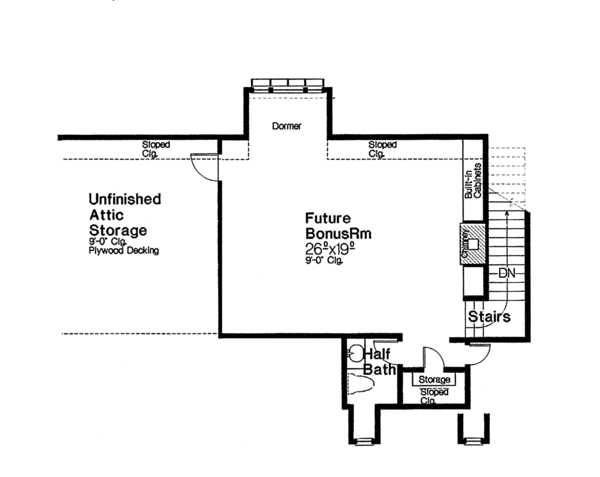

Bonus:
641 sq/ft width 26' x depth 19'
Breakfast:
width 15' 5" x depth 13'
Covered Rear Porch:
width 36' 5" x depth 17' 6"
Dining Room:
width 18' x depth 12' 10"
Game/Media Room:
width 18' 3" x depth 18' 4"
Garage:
907 sq/ft width 24' x depth 36' 6"
Garage 4 / Carriage House:
403 sq/ft width 14' x depth 22'
Great Room:
width 26' x depth 17' 6"
Kitchen:
width 16' 3" x depth 16'
Master Bedroom:
width 16' x depth 21' 3"
Master shower:
width 4' 3" x depth 4' 9"
Master Sitting:
width 11' x depth 11'
master utility:
48 sq/ft width 8' x depth 6'
Master WIC (see com):
85 sq/ft width 11' 4" x depth 7' 6"
Master WIC #1:
59 sq/ft width 8' x depth 7' 4"
Pantry:
28 sq/ft width 5' x depth 5' 8"
Patio bath:
width 5' 6" x depth 6' 6"
Powder room:
width 4' 6" x depth 8'
Study:
width 16' x depth 13'
Utility:
74 sq/ft width 8' 9" x depth 8' 6"
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
| 5 Copy Set
: $1795.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set
: $1935.00 |
8 printed plan sets mailed to you. |
| PDF Set
: $2085.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $2085.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set
: $3290.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set
: $1740.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
Additional Options
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $65.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
