PLAN 1017-155

Home > Style > Mediterranean

Key Specs

4310
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

You will need to catch your breath as you walk into this Mediterranean house plan with voluminous living room and cascading wall of glass reaching 24 feet in the air. This spaciousness continues throughout the foyer and dining room of this floor plan. The family room, dinette and kitchen are opened as one, only separated by detailed coffer ceilings. The study will draw you in with its 7 tall radial windows located just off the master suite. Upstairs is another highlight with 3 additional bedrooms and baths. The loft is a perfect game room with a wet bar and a beautiful picture window overlooking the rear lanai and pool. This is a perfect Mediterranean style, inter-coastal house plan. This plan is not for sale in Collier and Lee Counties in Florida without the written consent of the designer.

Floor Plans

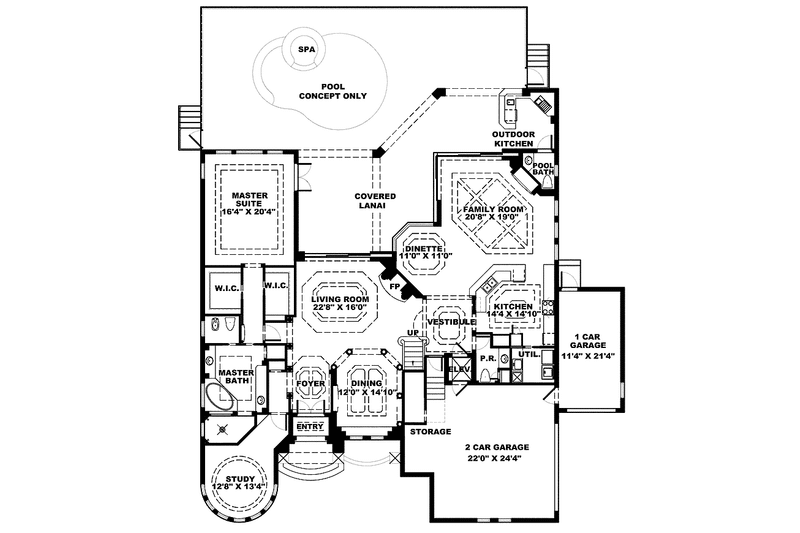

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

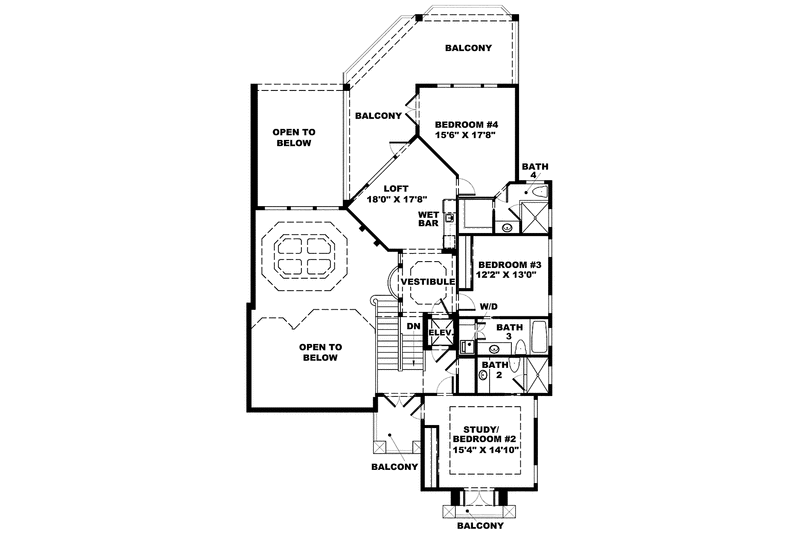

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 78' 10"

Height : 29' 7"

Width : 77'

Area

First Floor: 2833 sq/ft

Garage: 925 sq/ft

Second Floor: 1477 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Clay Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features

Formal Dining Room

Formal Living Room / Parlor

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Rooms

Bedroom 2:

227 sq/ft width 15' 4" x depth 14' 10"

Bedroom 3:

158 sq/ft width 12' 2" x depth 13'

Bedroom 4:

273 sq/ft width 15' 6" x depth 17' 8"

Dinette:

121 sq/ft width 11' x depth 11'

Dining Room:

177 sq/ft width 12' x depth 14' 10"

Family Room:

392 sq/ft width 20' 8" x depth 19'

Garage:

535 sq/ft width 22' x depth 24' 4"

Garage Two:

241 sq/ft width 11' 4" x depth 21' 4"

Kitchen:

212 sq/ft width 14' 4" x depth 14' 10"

Living Room:

362 sq/ft width 22' 8" x depth 16'

Loft:

318 sq/ft width 18' x depth 17' 8"

Master Suite:

332 sq/ft width 16' 4" x depth 20' 4"

Study:

168 sq/ft width 12' 8" x depth 13' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

CAD Set:
$1785.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1785.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1785.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Stem Wall Foundation:
$0.00

Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Additional Options

Additional Construction Sets:
$76.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
