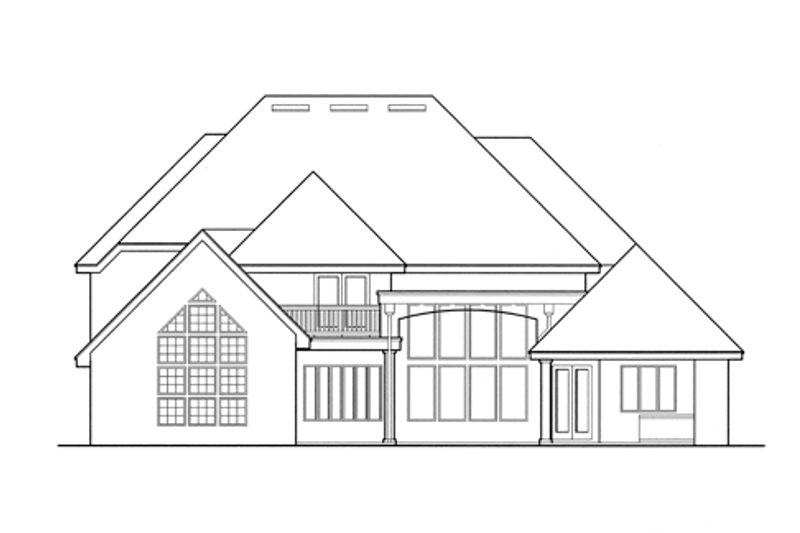

Mediterranean Exterior - Rear Elevation Plan #417-744

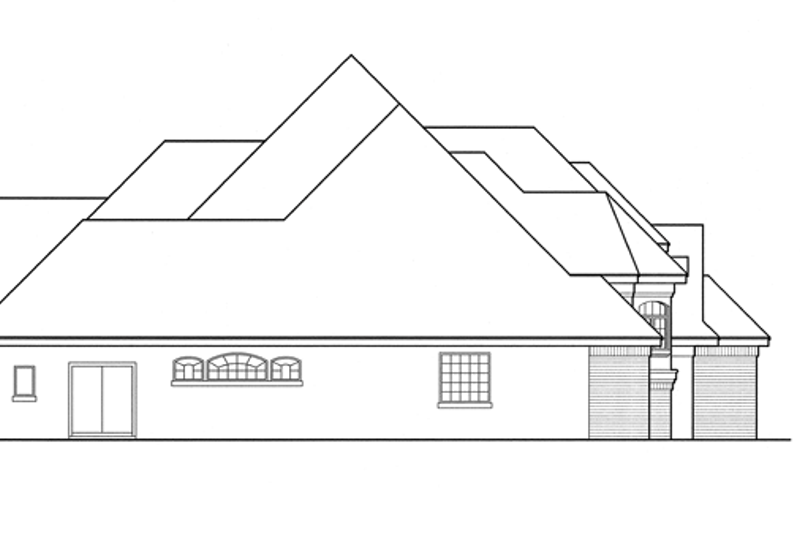

Mediterranean Exterior - Other Elevation Plan #417-744

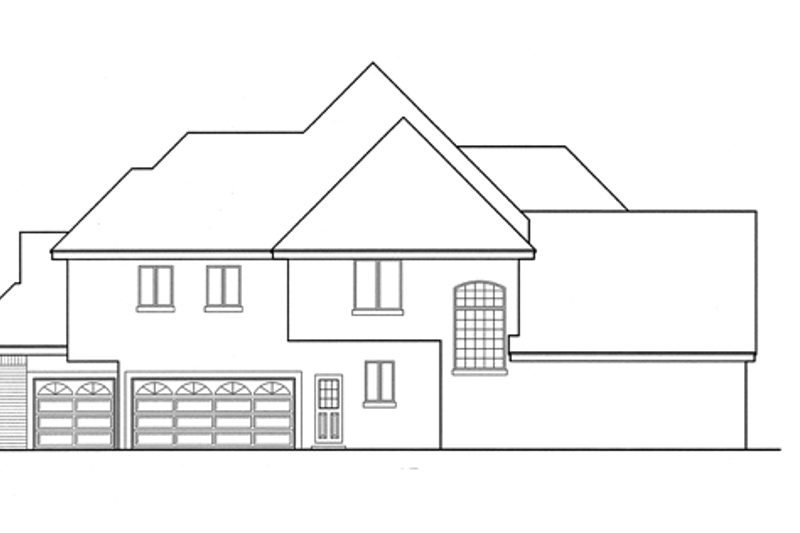

Mediterranean Exterior - Other Elevation Plan #417-744

Select Plan Set Options

What's included?
Additional Construction Sets
$40.50/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$67.50
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $1071.00
You save $119.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-744

Key Specs


4371
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


A mixture of hipped and gabled rooflines lends this design an air of Old World sophistication. A raised foyer leads into a living room graced with a volume ceiling and a wall of windows that overlooks the covered patio. The large master bedroom boasts a volume ceiling, French doors to the covered patio, a private sitting area, a fireplace, two walk-in closets and a spacious private bath. The vaulted family room enjoys a central fireplace, built-ins and an abundance of windows. Enjoy the large island kitchen that leads to a window-filled breakfast area and sports a convenient utility room. A grand staircase ascends to the sleeping quarters above, including three family bedrooms, a vaulted media room and a loft and balcony that overlooks the family and living rooms below. Bedroom 4 is graced with a private deck and bath, while Bedrooms 2 and 3 share a walk-through bath.

Floor Plans

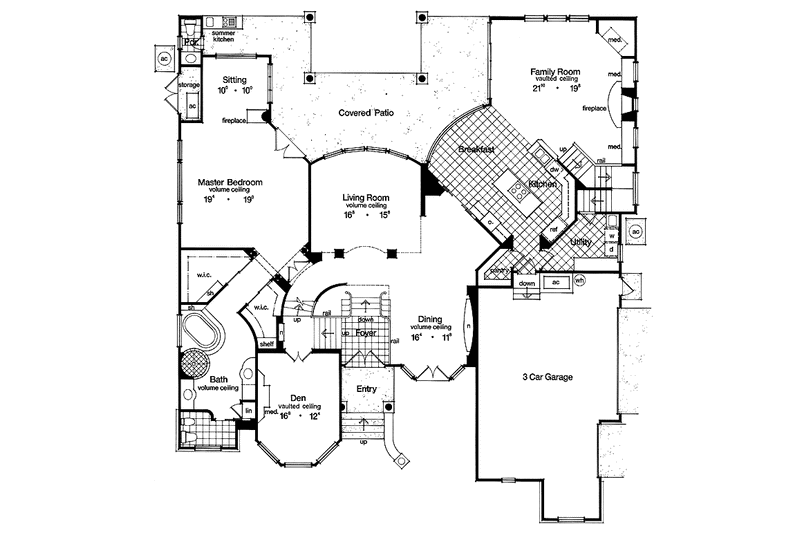

Floor Plan - Main Floor Plan
Reverse
Save

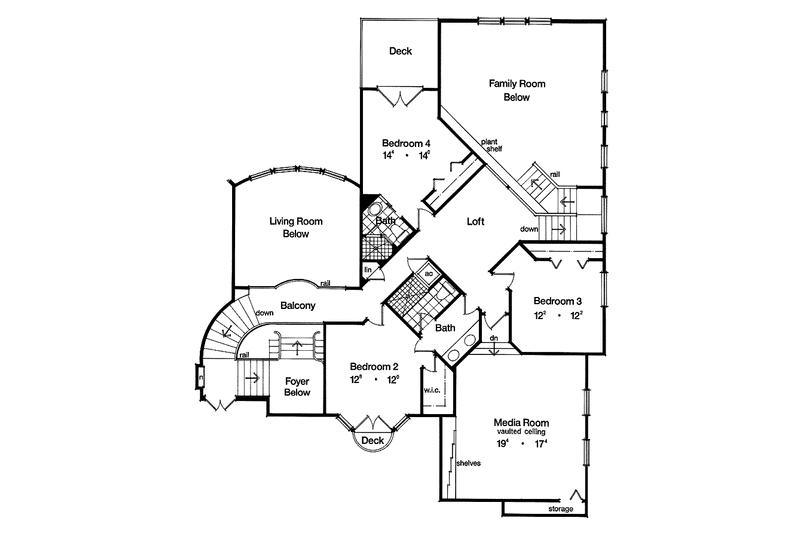

Floor Plan - Upper Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 76' 8"
Height : 38'
Width : 69' 4"
Area
First Floor: 2899 sq/ft height 10'
Second Floor: 1472 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
Deck
Rooms

Bedroom 2:

152 sq/ft width 12' 8" x depth 12'

Bedroom 3:

148 sq/ft width 12' 2" x depth 12' 2"

Bedroom 4:

200 sq/ft width 14' 4" x depth 14'

Breakfast Room:

154 sq/ft width 10' 6" x depth 14' 8"

Den/Office or Bedroom 1:

205 sq/ft width 16' 8" x depth 12' 4"

Dining Room:

190 sq/ft width 16' 4" x depth 11' 8"

Game Room:

335 sq/ft width 19' 4" x depth 17' 4"

Garage:

668 sq/ft width 21' 4" x depth 31' 4"

Gathering Room:

429 sq/ft width 21' 10" x depth 19' 8"

Kitchen:

185 sq/ft width 12' 8" x depth 14' 8"

Laundry Room:

101 sq/ft width 11' 8" x depth 8' 8"

Living Room:

261 sq/ft width 16' 8" x depth 15' 8"

Master Bathroom:

252 sq/ft width 11' 8" x depth 21' 8"

Master Bedroom:

367 sq/ft width 19' 4" x depth 19'

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1071.00
5 printed plan sets mailed to you.
PDF Set :
$1260.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1260.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$2520.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
$40.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$67.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
