PLAN 27-498

Key Specs


4436
sq ft

4
Beds

3.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

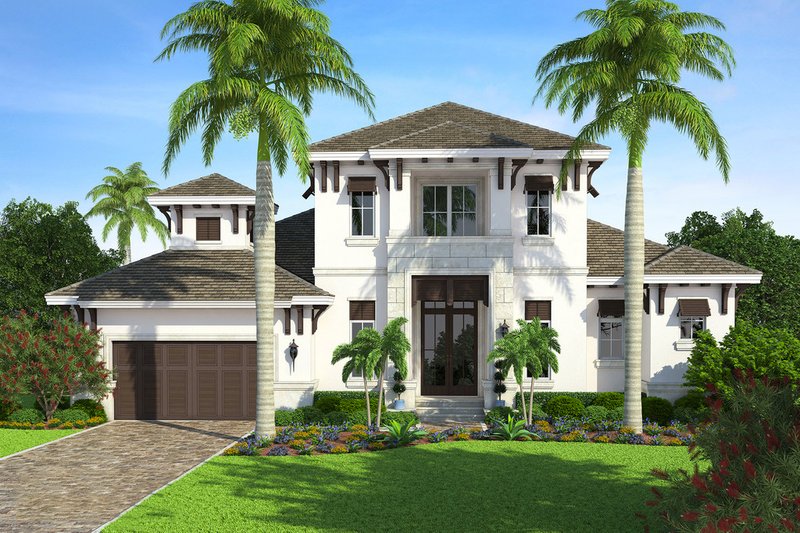

This two-story transitional West Indies home plan is ideally suited to enjoy the casual elegance of the coastal lifestyle. With almost 3,000 square feet under air, the floor plan offers expansive sliding glass doors and windows to allow natural light to saturate the living areas. The split floor plan features four bedrooms, three full baths and one pool bath. A main level en suite can also double as a formal study with direct access to the outdoor living areas. Outside, two connected lanai spaces allow for both dining and conversation areas off the dining room and the great room!

Floor Plans

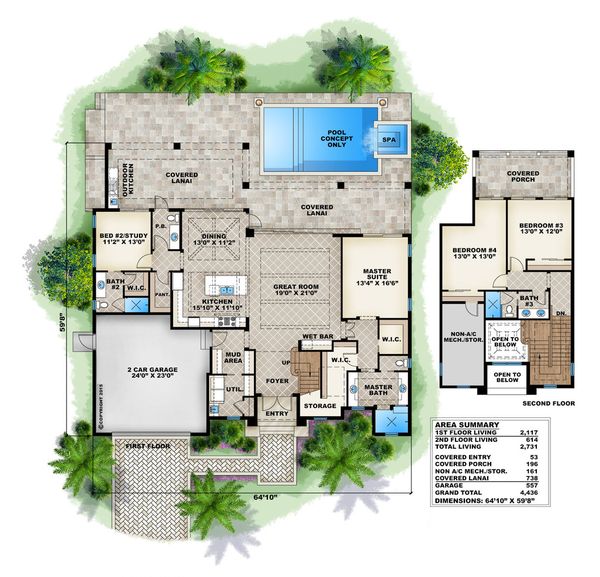

Floor Plan - Main Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 59' 8"
Height : 32' 7"
Width : 64' 10"
Area
First Floor: 2117 sq/ft
Garage: 557 sq/ft
Porch: 791 sq/ft
Second Floor: 614 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Coffer, Flat, Tongue and groove, Vault
Main Ceiling : 12'
Upper Ceiling Ft : 10'
Roof
Primary Pitch : 6:12
Roof Framing : Mfg Trusses
Roof Type : Concrete Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : CMU, 2x6 wood frame
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Wet Bar
Garage Features
Front Entry Garage
Oversized Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Balcony
Covered Rear Porch
Outdoor Kitchen Grill
More
Empty Nester
Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable

What's Included In This Plan Set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

» See important information before purchasing.

Plan Set

CAD Set :
$2286.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$2286.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$2286.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$350.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
