PLAN 1021-4

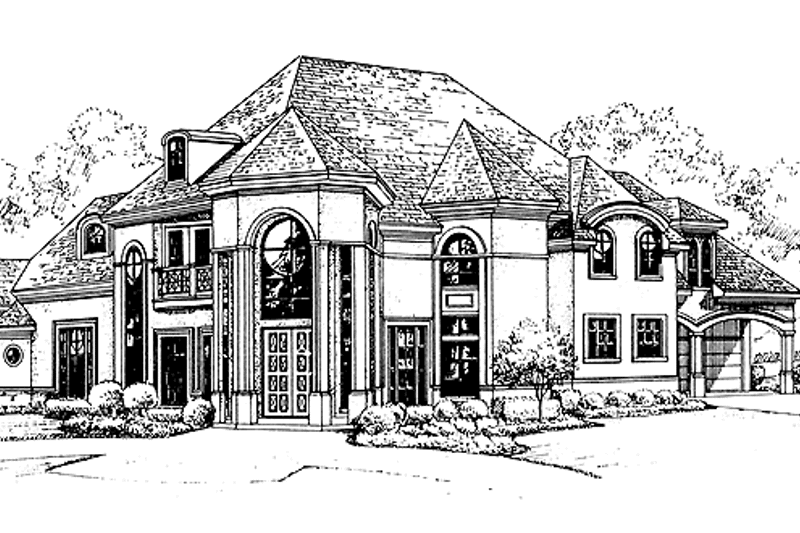

Classical Exterior - Front Elevation Plan #1021-4
Classical Exterior - Front Elevation Plan #1021-4

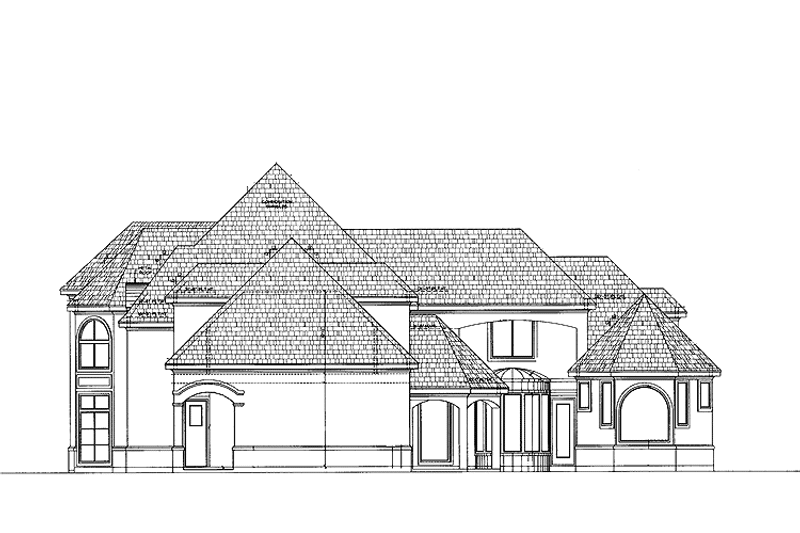

Classical Exterior - Rear Elevation Plan #1021-4

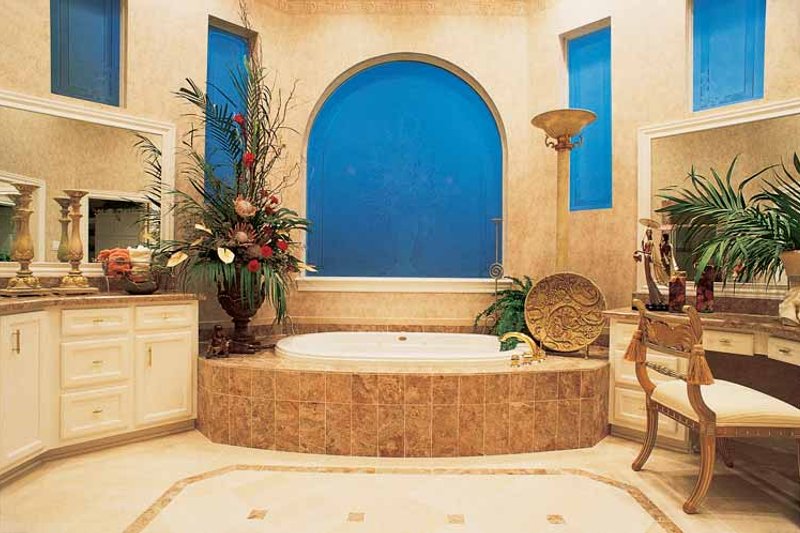

Classical Interior - Bathroom Plan #1021-4

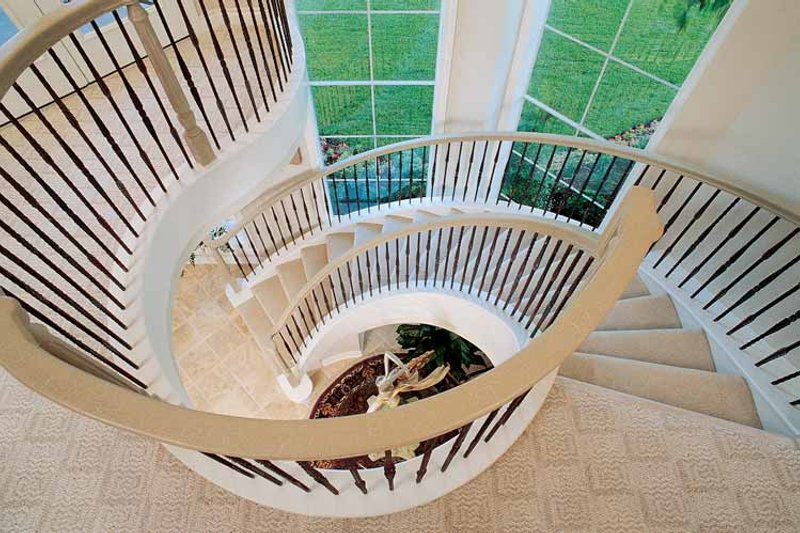

Classical Interior - Entry Plan #1021-4

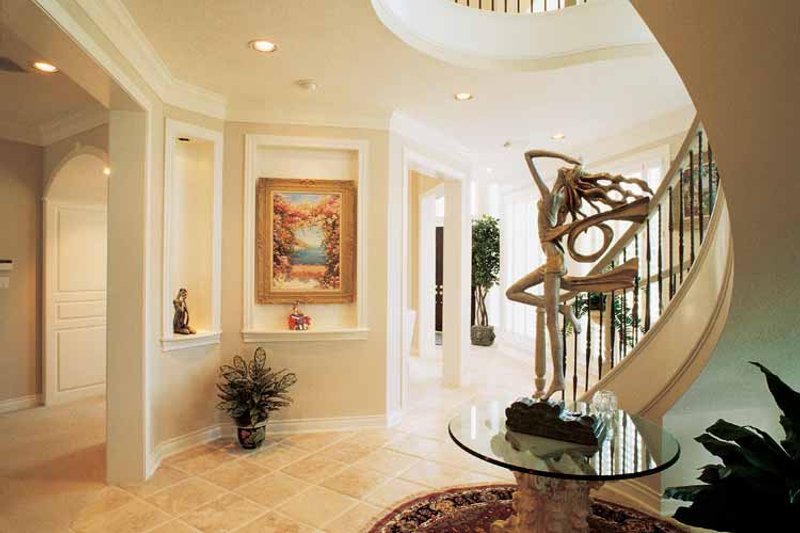

Classical Interior - Entry Plan #1021-4

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
NOW $1620.00
You save $180.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1021-4

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description

The exterior luxury extends to the amenity-filled walls of the interior. Formal living spaces greet visitors at the front entry. A convenient buffet area serves the dining room. The spacious, open kitchen provides a snack bar and an island cooktop. The bayed breakfast nook is bathed in natural light. A fireplace in the adjacent family room adds warmth and ambiance. Access to a side lanai is ideal for entertaining. The master suite has a wing reserved to the left of the entry foyer. Three secondary bedrooms--one a possible guest suite--are housed on the second floor. A central gameroom awaits at the top of the spiral staircase. Abundant storage space and a bonus room complete this floor. A three-car garage is the finishing touch on this exquisite plan.

Full Specs & Features

Depth : 88' 4"
Height : 37'
Width : 78' 4"
Bonus: 572 sq/ft
First Floor: 2744 sq/ft height 10'
Second Floor: 1727 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Open Floor Plan
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bedroom 2:

216 sq/ft width 18' x depth 12'

Bedroom 3:

261 sq/ft width 16' 4" x depth 16'

Bedroom 4:

235 sq/ft width 15' 8" x depth 15'

Breakfast Room:

166 sq/ft width 13' 6" x depth 12' 4"

Dining Room:

224 sq/ft width 14' x depth 16'

Game Room:

383 sq/ft width 25' x depth 15' 4"


702 sq/ft width 23' 8" x depth 29' 8"

Gathering Room:

386 sq/ft width 23' 8" x depth 16' 4"


379 sq/ft width 18' 8" x depth 20' 4"

Living Room:

225 sq/ft width 15' x depth 15'

Master Bedroom:

310 sq/ft width 19' x depth 16' 4"


158 sq/ft width 20' 8" x depth 7' 8"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-888-447-1946
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
