PLAN 1058-14

Home > Style > Mediterranean

Key Specs

4509
sq ft

3
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Modify This Plan

Plan Description

This mediterranean design floor plan is 4509 sq ft and has 3 bedrooms and 4.5 bathrooms.

Floor Plans

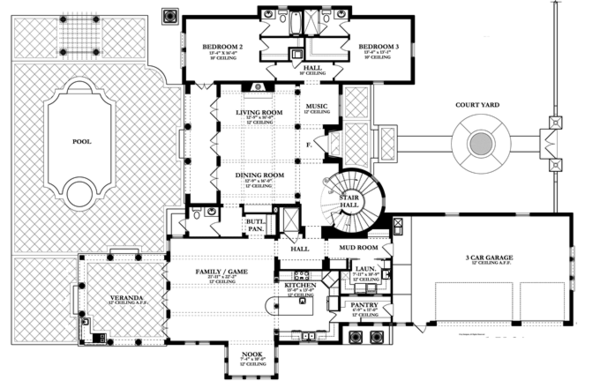

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

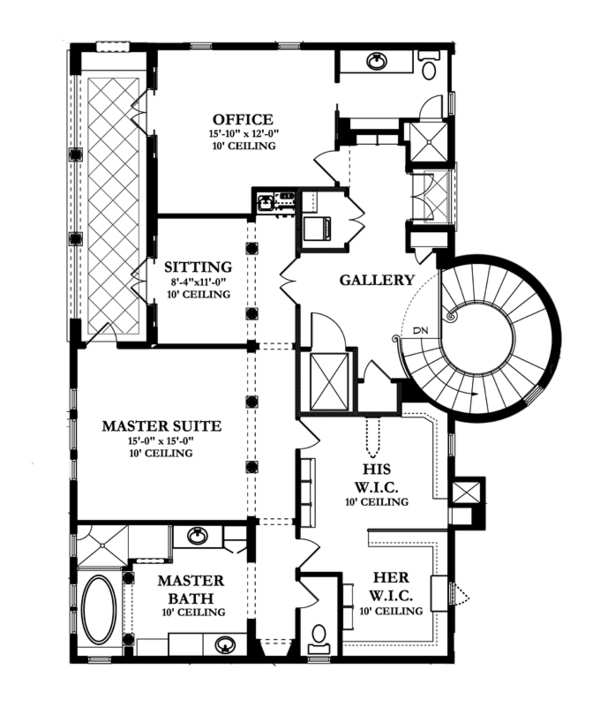

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 104' 10"

Height : 32'

Width : 79' 4"

Area

First Floor: 2921 sq/ft height 12'

Garage: 922 sq/ft

Second Floor: 1588 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 4:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block (1st Story)/ Wood – 2x6 (2nd Story)

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Main Floor Laundry

Master Sitting Area

Mud Room

Upstairs Laundry

Workshop

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Rear Porch

Deck

Grill Deck Sundeck

Outdoor Kitchen Grill

Wheelchair Adaptable

Rooms

Bedroom 2:

width 13' 4" x depth 16'

Bedroom 3:

width 13' 4" x depth 13' 1"

Dining Room:

width 12' 9" x depth 16'

Family Room:

width 21' 11" x depth 22' 2"

Front Balcony:

16 sq/ft

Garage:

922 sq/ft

Kitchen:

width 15' x depth 13'

Laundry:

width 7' 11" x depth 10' 9"

Living Room:

width 12' 9" x depth 16'

Master Bedroom:

width 15' x depth 15'

Nook:

width 7' 4" x depth 10'

Office:

width 15' 10" x depth 12'

Pantry:

width 6' 9" x depth 11'

Rear Balcony:

173 sq/ft

Sitting Area:

width 8' 4" x depth 11'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-888-447-1946

Plan Set

5 Copy Set:
$4300.00

5 printed plan sets mailed to you.

CAD Set:
$4700.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$4700.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$250.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$300.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$60.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Additional Use License:
$2350.00

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$200.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
