Plan Description


Live it up in stunning Mediterranean style! This stucco beauty is accented by arched windows and a traditional Spanish tiled roof. Inside, the living space goes on and on. The formal dining room flows into the center living room, where a double-sided fireplace also warms the kitchen and breakfast nook to the left. The island kitchen opens to the spacious hearth-warmed family room. A bedroom with a private patio is tucked to the left rear, convenient to a full bath and the laundry room. A hallway here accesses the three-car garage. On the opposite side of the plan, past the den/study, is the spectacular master suite. This suite pushes the limits of luxury with double walk-in closets, bay window and enormous bath with a corner windowed tub and separate vanities. The second floor is home to two more bedrooms--each with its own bath--and a loft that opens to a balcony. Bonus space on this floor awaits expansion.

Full Specs & Features


Dimension

Depth : 84' 4"

Height : 30'

Width : 86' 8"

Area

Bonus: 314 sq/ft

First Floor: 3478 sq/ft

Garage: 908 sq/ft

Second Floor: 1037 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Split Bedrooms

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Loft

Main Floor Laundry

Open Floor Plan

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Outdoor Kitchen Grill

Rooms

Bedroom 2:

147 sq/ft width 11' 10" x depth 12' 6"

Bedroom 3:

210 sq/ft width 14' x depth 15'

Bedroom 4:

154 sq/ft width 11' 11" x depth 13'

Bonus Room - Finished:

237 sq/ft width 13' 4" x depth 17' 10"

Breakfast Room:

164 sq/ft width 13' 8" x depth 12'

Dining Room:

223 sq/ft width 12' 8" x depth 17' 8"

Garage:

857 sq/ft width 22' 8" x depth 37' 10"

Kitchen:

362 sq/ft width 24' 2" x depth 15'

Living Room:

222 sq/ft width 14' 10" x depth 15'

Master Bedroom:

298 sq/ft width 15' x depth 19' 11"

Study:

206 sq/ft width 12' 8" x depth 16' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

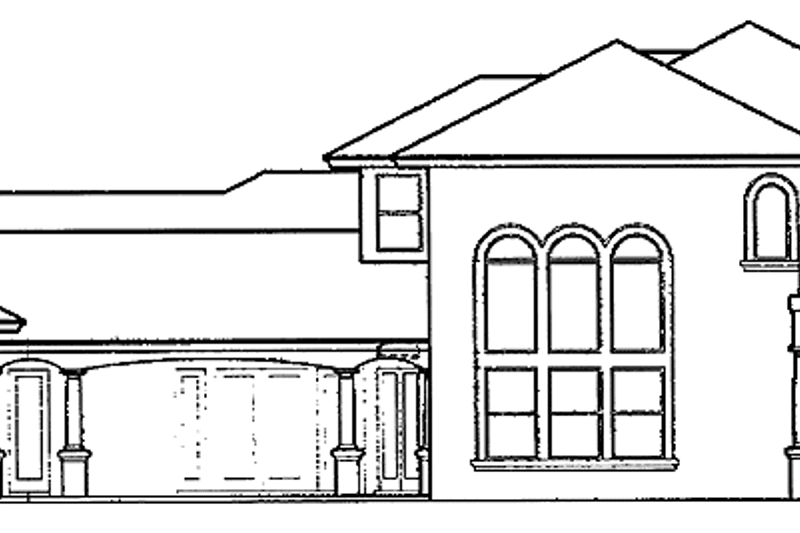

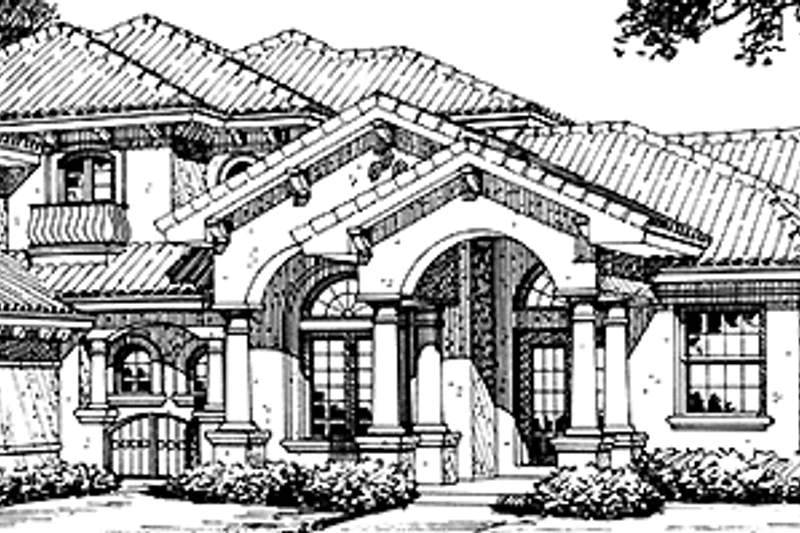

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
