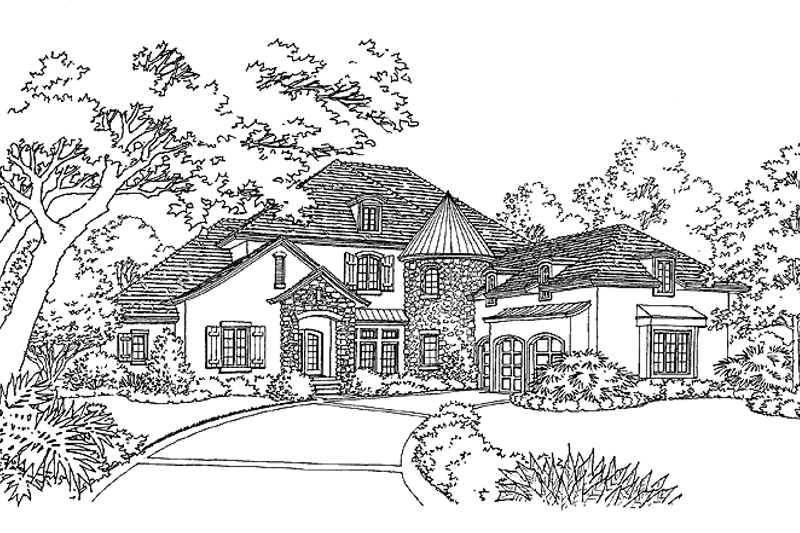

Country Exterior - Front Elevation Plan #417-569

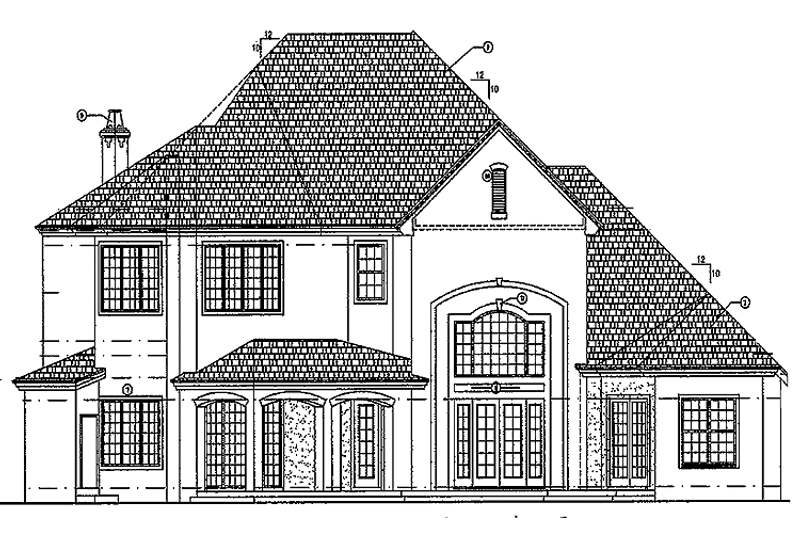

Country Exterior - Rear Elevation Plan #417-569

Select Plan Set Options

What's included?
Additional Construction Sets
$40.50/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$67.50
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
NOW $1440.00
You save $160.00
(10% savings)
Sale ends soon!
Also order by phone: 1-888-447-1946
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-888-447-1946
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-569

Key Specs


4669
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-888-447-1946 for assistance.

Plan Description


Stone and stucco combine with a great many windows create a beguiling facade for this expansive European design. Some interestingly angles rooms, such as the rounded laundry room housed in a turret and the angled family room, make for great decorating options. Two bedrooms--the master suite included, and occupying the entire left wing--are housed on the first level. Central to this floor are the living and dining rooms, kitchen, and nook. Don't miss the library as well. Upstairs are three more bedrooms--check out the sitting area off bedroom three--and two more bedrooms. Plenty of bonus space allows for future renovations.

Floor Plans

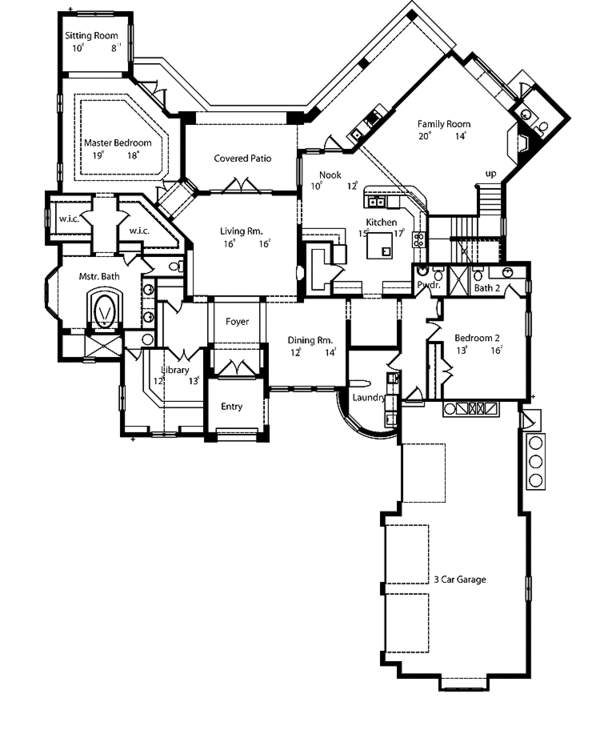

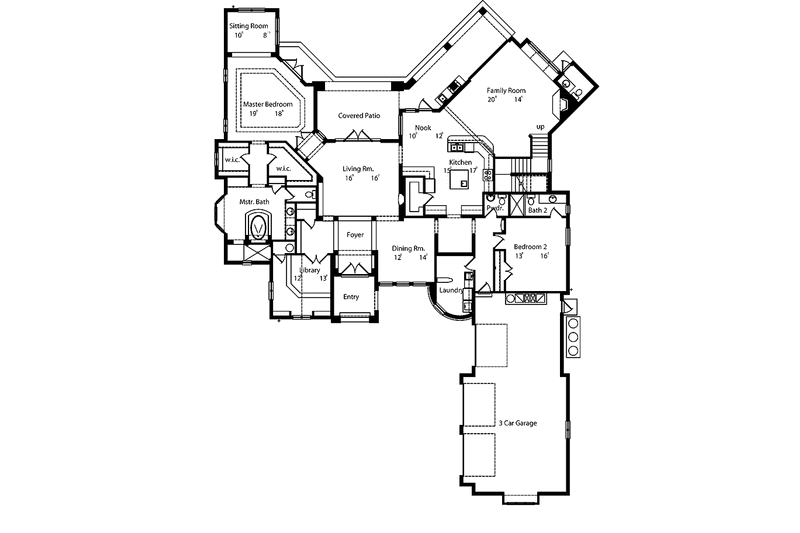

Floor Plan - Main Floor Plan
Reverse
Save

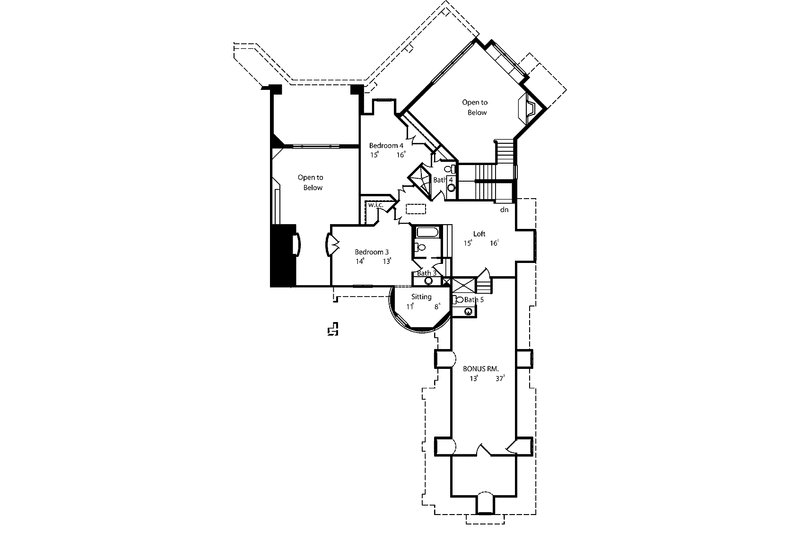

Floor Plan - Upper Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 109' 1"
Height : 41'
Width : 84' 2"
Area
First Floor: 3526 sq/ft height 9'
Second Floor: 1143 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Block
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Master Sitting Area
Outdoor Spaces
Balcony
Courtyard
Rooms

3rd BR Closet:

17 sq/ft width 2' x depth 8' 11"

Bathroom 2:

59 sq/ft width 12' 4" x depth 4' 10"

Bedroom 2:

210 sq/ft width 16' 10" x depth 12' 6"

Bedroom 2 Closet:

44 sq/ft width 7' 5" x depth 6'

Bedroom 3:

125 sq/ft width 13' 4" x depth 9' 5"

Bedroom 3 Closet:

44 sq/ft width 7' 5" x depth 6'

Bedroom 4:

235 sq/ft width 11' 11" x depth 19' 9"

Bedroom 4 Closet:

14 sq/ft width 2' x depth 7'

Bedroom 5:

495 sq/ft width 13' 4" x depth 37' 2"

Breakfast Room:

120 sq/ft width 10' x depth 12'

Den/Office or Bedroom 1:

309 sq/ft width 19' 4" x depth 16'

Dining Room:

168 sq/ft width 12' 6" x depth 13' 6"

Foyer:

99 sq/ft width 8' 8" x depth 11' 6"

Garage:

997 sq/ft width 22' 8" x depth 44'

Gathering Room:

192 sq/ft width 12' 3" x depth 15' 9"

Kitchen:

294 sq/ft width 19' x depth 15' 6"

Laundry Room:

106 sq/ft width 8' 2" x depth 13'

Living Room:

321 sq/ft width 19' 11" x depth 16' 2"

Master Bathroom:

277 sq/ft width 17' 2" x depth 16' 2"

Master Bedroom:

538 sq/ft width 19' x depth 28' 4"

Master Closet:

100 sq/ft width 10' 7" x depth 9' 6"

Porch - Front:

78 sq/ft width 9' x depth 8' 8"

Porch - Rear:

346 sq/ft width 27' 4" x depth 12' 8"

Powder Room:

25 sq/ft width 5' 4" x depth 4' 10"

Study:

167 sq/ft width 12' 8" x depth 13' 3"

Walk-In Closet:

48 sq/ft width 6' 7" x depth 7' 4"

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1440.00
5 printed plan sets mailed to you.
PDF Set :
$1620.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1620.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$3240.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00
Block

Additional Options

Additional Construction Sets :
$40.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$67.50
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
